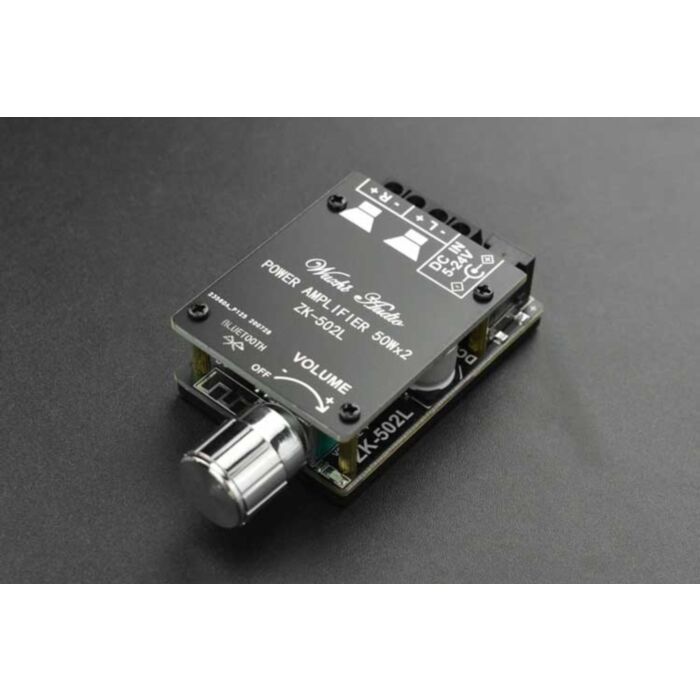

Mini Digital Bluetooth Amplifier-50W*2

SKU: DFR0799 Brand: DFRobot

This mini Bluetooth Amplifier can be connected to your mobile phone, Raspberry Pi, and other main-boards with Bluetooth to DIY your unique speaker! With standard...

$22.60 AUD, inc GST

$20.55 AUD, exc GST

Available with a lead time
Expect dispatch between May 05 and May 08

Quantity Discounts:

10+ $19.73 (exc GST)
25+ $19.11 (exc GST)

Introduction

This mini Bluetooth Amplifier can be connected to your mobile phone, Raspberry Pi, and other main-boards with Bluetooth to DIY your unique speaker! With standard audio quality, the cost-effective amplifier offers 50W output power, volume adjustable knob, Bluetooth 5.0 input, and dual-channel output. It can be powered at DC 5~24V, and compatible with 4-8Ω, 30W-200W passive speakers.

The Bluetooth Amplifier comes with bottom/top protective covers and supports overheat and short-circuit protection.

Operation Instruction

Connect the board with a speaker, power it on. Rotate the volume knob then the indicator LED lights up. Turn on the Bluetooth of your phone or Raspberry Pi, the “BT-WUZHI” will be searched, and then click to connect it. It connects successfully with a ding-dong tone, and now it can play music. The Bluetooth will be connected automatically when the module is powered on next time.

Note

The board will output adequate power only when the audio input and power source voltage/current are sufficient. The higher the power supply voltage, the larger the output power. Besides that, speaker impedance also changes the amplifier board power output. Please note that in the case of enough voltage and current, the larger the speaker impedance in ohms, the smaller the output power.

Specification

Power Supply: 5-24V
Input: Bluetooth 5.0
Audio Quality: standard
Output Power: 50W*2
Compatible Speakers: 30W-200W, 4Ω-8Ω
Channel: left/right (stereo)
Bluetooth Transmission Distance: 15m(Without any obstacle)
Protection: overheat, short-circuit
Power Voltage:

12V--8Ω Speaker/12W(left)+12W(right), 4Ω Speaker/20W+20W
  15V----8Ω/18W+18W,4Ω/>30W+30W
  19V----8Ω/32W+32W,4Ω/>45W+45W
  24V----8Ω/38W+38W,4Ω/>50W+50W

Shipping List

Mini Digital Bluetooth Amplifier-50W*2 x1
Acrylic Protective Case x2
Screwdriver x1
20cm Power Wire x1
Knob x1
Accessories Package x1
Heat Sink x1
