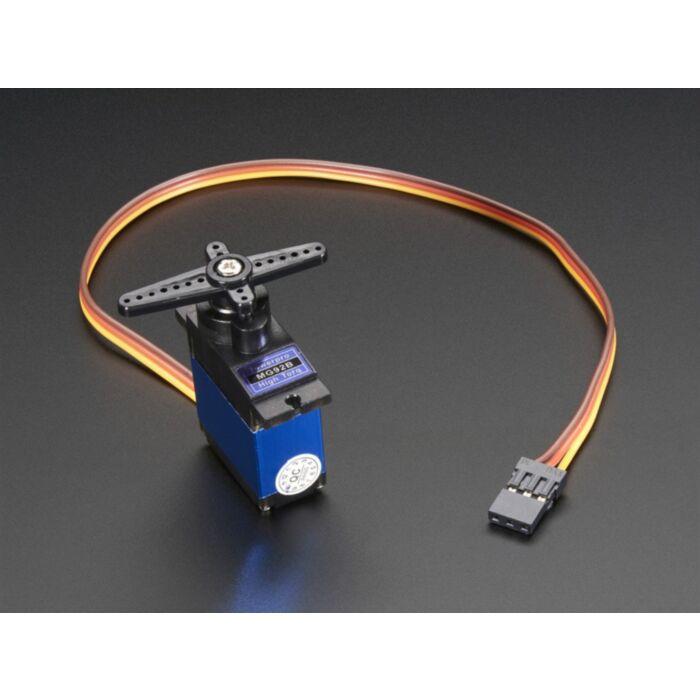

Micro Servo - High Powered, High Torque Metal Gear

SKU: ADA2307 Brand: Adafruit
Add even more power to your robot with this metal-geared servo. The tiny little servo can rotate approximately 180 degrees (~90 in each direction), and works just...
$26.80 AUD, inc GST
$24.36 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 18th of Nov

Quantity Discounts:

  • 10-25 $23.39 (exc GST)
  • 25+ $22.65 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Add even more power to your robot with this metal-geared servo. The tiny little servo can rotate approximately 180 degrees (~90 in each direction), and works just like the standard kinds you're used to but smaller. You can use any servo code, hardware or library to control these servos. Good for beginners who want to make stuff move without building a motor controller with feedback & gear box, especially since it will fit in small places. Despite its size, this micro-servo is as strong as many 'standard' size servos! Works great with the Motor Shield for Arduino, Adafruit's 16-channel Servo Driver, or by just wiring up with the Servo library. Comes with a few horns and hardware.

This micro servo packs a big punch for its little size.  it's just a little bit bigger than Adafruit's High Torque Metal Gear Micro Servo but runs with almost double the stall torque.

To control with an Arduino, we suggest connecting the orange control wire to pin 9 or 10 and using the Servo library included with the Arduino IDE (see here for an example sketch). Position "0" (1.5ms pulse) is middle, "90" (~2ms pulse) is all the way to the right, "-90" (~1ms pulse) is all the way to the left. Note that unlike most servos you may be familiar with, this one does not have mechanical stops!

Technical Details

  • Stall Torque (4.8v): 3.1kg/cm
  • Stall Torque (6.0v): 3.5kg/cm
  • Operating Speed (4.8v): 0.13sec/60°
  • Operating Speed (6.0v): 0.08sec/60°
  • Operating Voltage: 5.0~6.6v
  • 36mm x 12mm x 31mm / 1.4" x 0.5" x 1.2"
  • Wire Length: 257mm / 10.1"
  • Weight: 14g
  • Spline Count: 20
