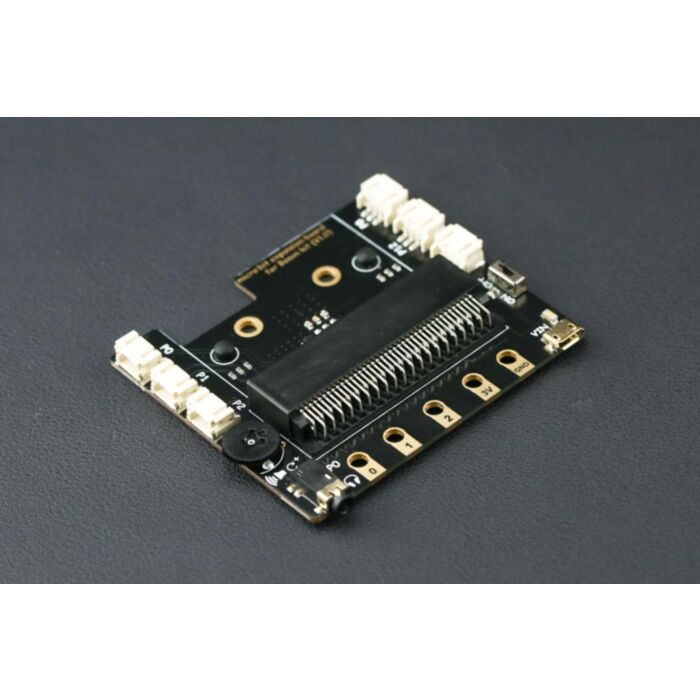

micro:bit Expansion Board for Boson (Gravity Compatible)

SKU: DFR0521 Brand: DFRobot
micro:bit is a pocket-sized microcontroller designed for kids and beginners to learn coding and electronics, letting them easily bring ideas into DIY digital games...
$14.93 AUD, inc GST
$13.57 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 08 and Apr 15

Quantity Discounts:

  • 10+ $13.37 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

micro:bit Expansion Board for Boson (Gravity Compatible) Overview

micro:bit is a pocket-sized microcontroller designed for kids and beginners to learn coding and electronics, letting them easily bring ideas into DIY digital games, interactive projects, and robotics.

However, on-board I/O rings and crocodile clips sometimes are not handy and safe enough to connect peripherals. To explore more possibilities with micro:bit, we have designed the micro:bit Expansion Board for Boson, a carry-on board that connects to micro:bit via the edge connector.
micro:bit Expansion Board for Boson (Gravity Compatible) Interface

The expansion board comes with 6 fool-proof 3-Pin sockets, compatible with hundreds of DFRobot’s Boson and Gravity modularized electronic blocks, covering most popular digital and analog sensors and actuators, supporting sound, light, and motion interaction.
Click the link to learn more about DFRobot’s Boson module: https://www.dfrobot.com/boson
Click the link to learn more about DFRobot’s Gravity module: https://www.dfrobot.com/gravity

Moreover, the expansion board adds a Gravity: HuskyLens interface and an IIC interface. To ensure a steady current supply for these peripherals, the expansion board can be powered externally through the Micro-USB power port.
micro:bit Expansion Board for Boson (Gravity Compatible) Game:pad
micro:bit Boson game pad
micro:bit Expansion Board for Boson (Gravity Compatible) Connected with heart rate monitor
micro:bit RGB LED heart rate monitor


JavaScript display
Product Image


Product NameMicro:bit - an Educational & Creative Tool for Kids
Micro:Mate - A Mini Expansion Board for micro:bit (Gravity Compatible)
micro:bit Expansion Board for Boson (Gravity Compatible)
SKUDFR0497
DFR0518
DFR0521
Operating Voltage
3.5~5.5V
3.3V/5V
3.3V
Power supply
DC2.1/Terminals
USB
USB
External supply voltage
3.5~5.5V
3.3V/5V
3.3V/5V
Digital ports (IO/PWM)17/8
33
Analog ports (input/output)
P0?P1?P2
33
UART
xxx
I2C2xx
SPIxxx
Interrupt pin (quantity)xxx
Interface Type
Gravity
Gravity
Gravity
3.5mm headphone port
xv
v
Dimension63 x 58 mm
68.5×53.3 mm
80×70 mm
Mounting hole 50*55
--
Weight (g)
642348
Price$14.9$5.9
$7.9
Drive the servo
v
v
x
ScenariosMany motors and sensors needed
Suitable for small WorksInitial Stage
Key Features

17 io ports with 2 i2c interfaces

Can drive Quad DC Motor Driver

IO port expands 6 and the pin replaces the edge connector slot

Anti-reverse pad on the back, which protects the control board and prevents micro-reverse
Drive high current equipment, such as steering gear, components connected to 8 12 16

3-Pin fool-proof connector x 6

Edge Connector

Features

  • 3-Pin fool-proof connector x 6
  • IIC connector x1
  • Gravity: HuskyLens connector x1
  • External power port and ON/OFF switch
  • DFRobot Gravity and Boson electronic module compatible
  • Specification

  • MicroUSB Power Port Voltage:5V
  • PH2.0 Input/output Voltage: 3.3V
  • Input/output ring Voltage: 3.3V
  • HuskyLens input Voltage:5V
  • Maximum Current: 500mA
  • Working temperature: 0-85 ?
  • Dimension 80 * 70 mm / 3.15 * 2.76
  • Weight: 48g
  • Projects

    Project 1. Micro:bit Surprise box
    In this project it shows how the box interacts with flahsing hearts.
    Main Components:


    How can a Halloween without a pumpkin lamp? The pumpkin lamp made of recently popular Microbit is a good choice.


    Project 3: A colorful grapefruit made use of micro:bit
    As a trickster for Halloween, how can we lack an ingenious pumpkin lantern as an equipment?
    Hardware components:
    Needle, utility knife, chopsticks or small wooden stick, scrap wire or wire, wool


    Microbit Project 4: Micro:bit Light(Mood Lamp)

    After programming the micro:bit, you can plug in power to Vin. The Vin will power the micro:bit.

    Hardware components:


    Project 5: micro:bit Laser Target

    The ambient light sensor sensor detects the intensity of the laser pointer. If it is greater than 400, it will sound the buzzer and the servo will make the target fall and up. Game over when it reaches 10. Press A to reset score to 0.

    Hardware components:

    Documents

    Parts List

  • micro:bit Expansion Board for Boson x 1
  • 200mm fool-proof PH2.0 cable x 6
