Metal Servo Horn for FEETECH Giant Servo FT5335M

SKU: POLOLU-3431 Brand: Pololu

This is an anodized aluminum servo horn for the FEETECH Ultra-High-Torque, High-Voltage Digital Giant Servo FT5335M. The FT5335M ships with a set of...

$11.70 AUD, inc GST

$10.64 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 7th of Feb

Quantity Discounts:

10-25 $10.32 (exc GST)
25+ $10.10 (exc GST)

This metal servo horn is an optional accessory for the FEETECH FT5335M giant servo. For ultra-high-torque applications, this anodized aluminum horn makes a much more robust lever arm than the plastic horns included with the FT5335M servo.

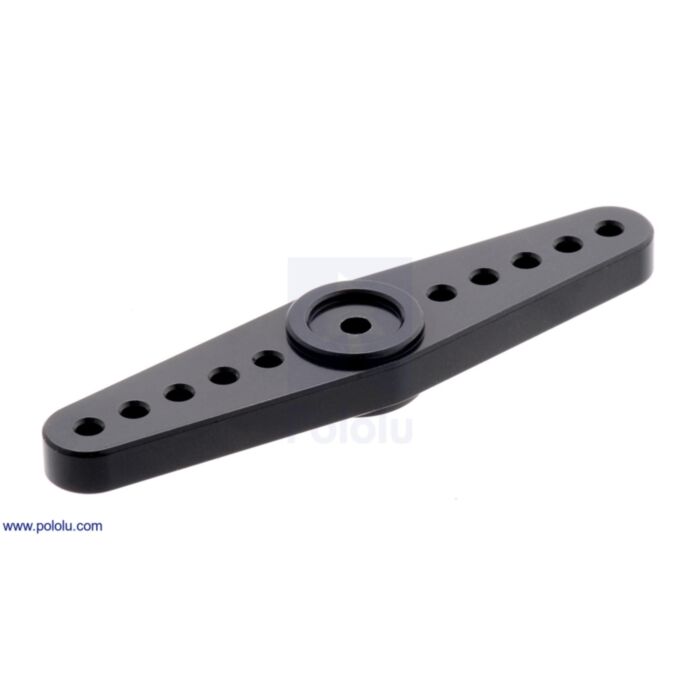

Metal servo horn for the FEETECH giant servo FT5335M.

Metal servo horn on a FEETECH giant servo FT5335M.

Note: This horn does not work well with the Power HD HD-1235MG giant servo. The output spline diameter on that servo is approximately 0.2 mm smaller than on the FT5335M, so the fit will be loose, and Pololu do not recommend using those products together.

Dimensions

Dimensions (mm over inches) of the metal servo horn for the FEETECH giant servo FT5335M.

This dimension diagram is also available as a downloadable pdf (75k pdf).

People often buy this product together with:

Micro Maestro 6-Channel USB Servo Controller (Assembled)

Pololu 7.5V, 15A Step-Down Voltage Regulator D24V150F7

FEETECH Ultra-High-Torque, High-Voltage Digital Giant Servo FT5335M

Dimensions

Size:	69 × 15.5 × 5 mm
Weight:	10 g

General specifications

Material:	aluminum

File downloads

Dimension diagram of the Metal Servo Horn for FEETECH Giant Servo FT5335M (75k pdf)
