Machine Learning BrainCraft HAT for Raspberry Pi 4

SKU: ADA4374 Brand: Adafruit

The idea behind the BrainCraft board (stand-alone, and Pi “hat”) is that you’d be able to “craft brains” for Machine Learning on the EDGE, with Microcontrollers & Microcomputers

$91.70 AUD, inc GST

$83.36 AUD, exc GST

Available with a lead time
Expect dispatch between May 20 and May 22

Quantity Discounts:

6-12 $81.29 (exc GST)
12+ $78.75 (exc GST)

The idea behind the BrainCraft board (stand-alone, and Pi “hat”) is that you’d be able to “craft brains” for Machine Learning on the EDGE, with Microcontrollers & Microcomputers. On ASK AN ENGINEER, Adafruit's founder & engineer chatted with Pete Warden, the technical lead of the mobile, embedded TensorFlow Group on Google’s Brain team about what would be ideal for a board like this.

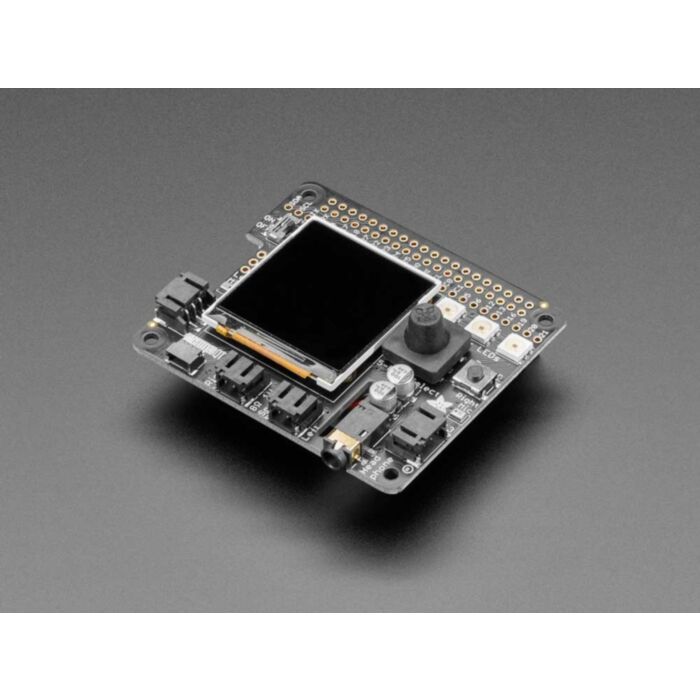

And here’s a first look! We’ve started to design a BrainCraft HAT for Raspberry Pi and other Linux computers. It has a 240×240 TFT display for inference output, slot for camera connector cable for imaging projects, a 5 way joystick and button for UI input, left and right microphones, stereo headphone, stereo speaker out, three RGB DotStar LEDs, two 3 pin STEMMA connectors on PWM pins so they can drive NeoPixels or servos, and Grove/STEMMA/Qwiic I2C port. This should let people build a wide range of audio/video AI projects while also allowing easy plug-in of sensors and robotics!

Most importantly, there’s an On/Off switch that will disable the audio codec, so that when it's off there’s no way it's listening to you!

Note: This Hat does not come with a fan, if you need cooling for it you will need a seperate fan.

Inputs:

Loads of sensors!
More sensors can be connected via plug-n-play stemmaQT
Image sensors, like a camera, or ‘image sensors’ like the Panasonic Grid-EYE. Heat-Sensitive cameras can be used as a person detector, even in the dark!
Microphone, voice detection for powering on/off
Accelerometer for gestures, vibration sensing. Could be useful for machinery/industrial predictive maintenance.

Outputs:

Screen display for debugging
Speaker for audio feedback as to what is going on.
Relay control to turn things on/off, etc. and/or other actuators.

Connectivity:

NB / Narrowband IoT? Wireless flexibility: WiFi, cellular, Bluetooth LE
Works with adafruit.io, of course!

Power:

Battery powered / low-power.
Solar add-ons or energy harvesting. Make OK with lots of power sources that are not reliable.
On/Off switch!
