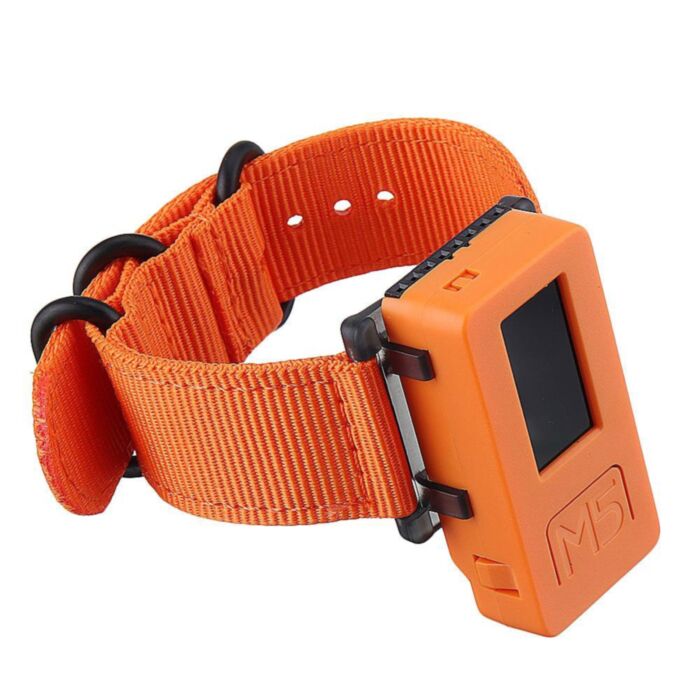

M5StickC ESP32-PICO Mini IoT Development Kit

SKU: CE07613 Brand: M5Stack

Retired Product

Search for an alternative

We currently have limited local stock of this product and back-ordering is unavailable due to global supplier chipset shortages.

This product has been retired. It is no longer available, but this page has been kept for reference.

M5StickC is a mini M5Stack, powered by ESP32. It is a portable, easy-to-use, open source, IoT development board. What it can do? This tiny block is able to realize your idea, enlighten your creativity, and help with your IoT prototying in a very short time. It will take away a lot of pains from the development process.M5stickC is one of the core devices in M5Stack product series.

It is built in a continually growing hardware and software ecosystem. It has a lot of compatible modules and units, as well as the open source code & engineering communities that will help you maximize your benefits in every step of the developing process.

Features

ESP32-based
Built-in 6-Axis IMU
Red LED
IR transmitter
Microphone
Buttons, LCD(0.96 inch)
Built-in Lipo Battery
Extendable Socket
Wearable & Wall mounted
Development Platform UIFlow, MicroPython, Arduino

Power switch operation：

Power on ：Press power button for 2 seconds
Power off ：Press power button for 6 seconds

Note: Baud rate supported by M5StickC: 1200 ~115200, 250K, 500K, 750K, 1500K

Include

1x M5StickC
1x USB Type-C(20cm)

Applications

Internet of things terminal controller
Wearable devices
Stem education product
DIY creation

Specifications

ESP32: 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth
Flash Memory: 4MB
Power Input: 5V @ 500mA
Port: TypeC x 1, GROVE(I2C+I/0+UART) x 1
LCD screen: 0.96 inch, 80*160 Colorful TFT LCD, ST7735S
Button: Custom button x 2
LED: RED LED
MEMS: MPU6886
IR: Infrared transmission
MIC: SPM1423
RTC: BM8563
PMU: AXP192
Battery: 95 mAh @ 3.7V
Antenna: 2.4G 3D Antenna
PIN port: G0, G26, G36
Operating Temperature: 32°F to 104°F ( 0°C to 40°C )
Net weight: 15.1g
Gross weight: 33g
Product Size: 48.2*25.5*13.7mm
Package Size: 55*55*20mm
Case Material: Plastic ( PC )

If the drivers for the ESP32 don't automatically install you can download them here.
