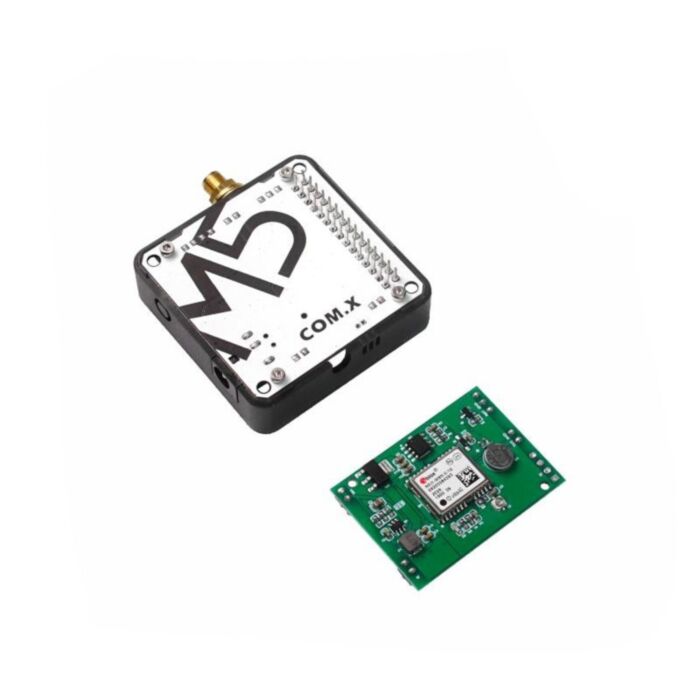

M5Stack COM.GPS module (NEO-M8N) with Antenna
Quantity Discounts:
- 6+ $61.92 (exc GST)
Out of Stock
Sign up to get notified when it's available to order.
Restrictions apply to this equipment as it uses button/coin cell batteries:
- The equipment is intended to be used in trades, professions or industries
- The equipment is not intended for sale to the general public
- The equipment is not intended to be used where children are present
- You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
- You are aware that these restrictions are due to a change in Australian legislation in 2022 for button/coin cell batteries
A declaration of use will need to be submitted during checkout.
COM.GPS is a satellite positioning module in the M5Stack stacking module series. It is developed based on the NEO-M8N module and is equipped with an active antenna. The NEO-M8 can spend a small amount of time, conduct high-sensitivity acquisition, and keep the system low power consumption. NEO-M8N integrates the 72-channel u-blox M8 GNSS engine, supports multiple GNSS systems: BeiDou, Galileo, GLONASS, GPS / QZSS, allowing simultaneous reception 3 Data from a GNSS system. Programmable FLASH is integrated inside the module, which can read and write data. The module's high sensitivity, small static drift, low power consumption and compact size are very suitable for applications in vehicles, handheld devices such as PDAs, vehicle monitoring, mobile phones, cameras and other mobile positioning systems. The UART communication protocol is used between the M5Core and the GPS module, and the serial port connection pins can be modified through the dial switch on the back.
If you want to change the serial port baud rate, please click ( u-center-just-for-Windows ).
Note: In order to get a good signal from the GPS module, please place the module outdoors when using it.
UART protocol: baud rate (default is 9600bps), data bit (8 bits), start bit (1 bit), stop bit (1 bit), check bit (none).
- COM.GPS RXD/TXD can be connected to M5Stack's UART (TX(0/13/17)RX(5/15/16)) by setting the DIP switch, M5Stack Fire GPIO16 /GPIO17 is connected to PSRAM by default. It is recommended to use any one of the remaining two groups of pins.
- The right dial switch is invalid for this module, no need to set.
Features
- Antenna type: external GPS antenna
- External antenna port: SMA
- Can receive data from 3 GNSS systems at the same time
- Horizontal position accuracy: minimum 2.5m
- GPS module (NEO-M8N) built-in flash memory, through u-center-just-for-Windowsupgrade firmware
- Protocol: NMEA, UBX, RTCM
- Industry leading -167dBm sensitivity
- Backward compatible with NEO-7 and NEO-6 series
Includes
- 1x COM.GPS Module
- 1x External antenna(length: 1 m)
Application
- GPS-based logistics tracking management
- Driverless car positioning
Specification
- Receiver type: GPS:L1C/A SBAS:L1C/A QZSS:L1C/A GLONASS:L1OF BediDou:B1 Galileo:E1B/C
- Positioning time: Cold start:26S Hot start:1.5S
- Sensitivity: -167 dBm
- Update rate: Separate GNSS 10Hz,Parallel GNSS 5Hz
- Rate accuracy: 0.05m/s
- Height limit: 50000m
- Speed limit: 500m/s
- Working voltage: 2.7 ~ 3.6
- Working temperature: -40 ~ 80°C
- Net Weight: 28g
- Gross Weight: 99g
- Product Size: 54*54*13.2mm
- Package Size 165*60*37mm
