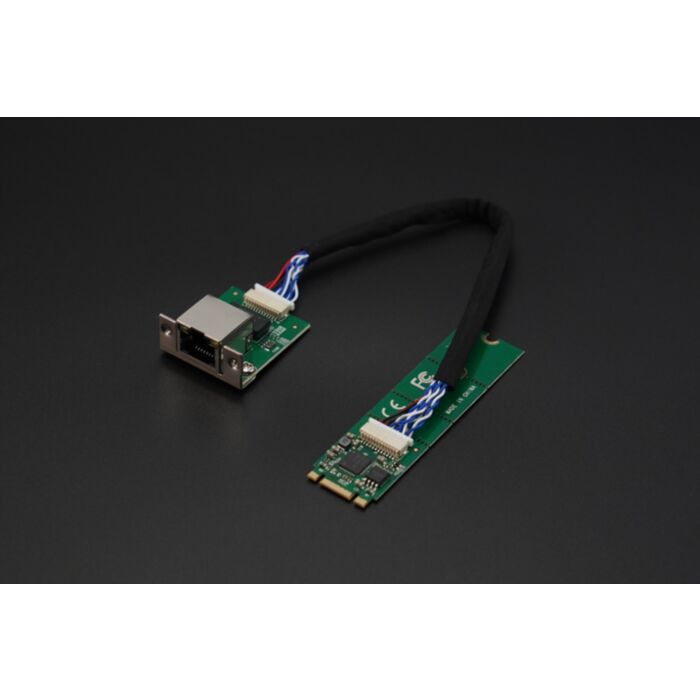

M.2 (B+M Key) to 2.5G Ethernet Network Card for LattePanda (Supports Windows 10 / 11, Linux)
Available with a lead time
Expect dispatch between Aug 08 and Aug 12
Quantity Discounts:
- 6+ $44.73 (exc GST)
- 12+ $43.33 (exc GST)
Introduction
The M.2 2.5G Network Card is a high-speed networking solution designed to enhance the Ethernet performance of compatible devices via an M.2 B+M Key slot. Powered by the Intel I225-V chipset, it enables adaptive data rates up to 2500Mbps, offering a reliable and efficient upgrade for systems like LattePanda Alpha, LattePanda 3 Delta, LattePanda Sigma single board computers, and other devices running Windows 10/11 or Linux. Ideal for applications requiring stable, high-speed network connections, this network card is a perfect choice for smart computing and advanced network configurations.
High-Speed 2.5G Performance with Intel I225-V
Equipped with the Intel I225-V chipset, this M.2 2.5G network card supports data rates up to 2500Mbps, providing fast, stable, and energy-efficient connectivity. Perfect for high-demand applications, the chipset ensures reliable and consistent network performance for smooth data transmission.
Broad Compatibility and Plug-and-Play Convenience
This network card supports a wide range of systems, including Windows 10/11 and Linux, and is compatible with LattePanda Alpha, Sigma, and 3 Delta motherboards. Its plug-and-play design enables quick installation, making it easy to expand networking capabilities without additional setup.
Wiring Example of LattePanda Alpha and M.2 2.5G Network Card
Flexible Network Connectivity Across Multiple Topologies
Supporting 2500BASE-T, 1000BASE-T, 100BASE-TX, and 10BASE-TE topologies, the network card adapts to different network environments and automatically adjusts data rates as needed. This flexibility allows for seamless integration in various configurations, ensuring a strong, stable connection across all network types.
Applications
Smart computingSpecification
Chip: Intel I225-VInterface: M.2 B+M KeyTransmission rate: 10/100/1000/2500Mbps adaptiveNetwork topology: 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TElEEE 802.3bz, IEEE 802.3, IEEE 802.3x, IEEE 1588, IEEE 802.3azNetwork interface type: RJ45Operating system: Windows10/11, LinuxOperating temperature: 0~55°CStorage temperature: -40~70°CCable length: 210mmM.2 board size: 22*80mmRJ45 board size: 33*30mm
Documents
Download DriverParts List
M.2 (B+M Key) Network Card x12.5G Ethernet Port x1Data Cable x1Exact shipping can be calculated on the view cart page (no login required).
