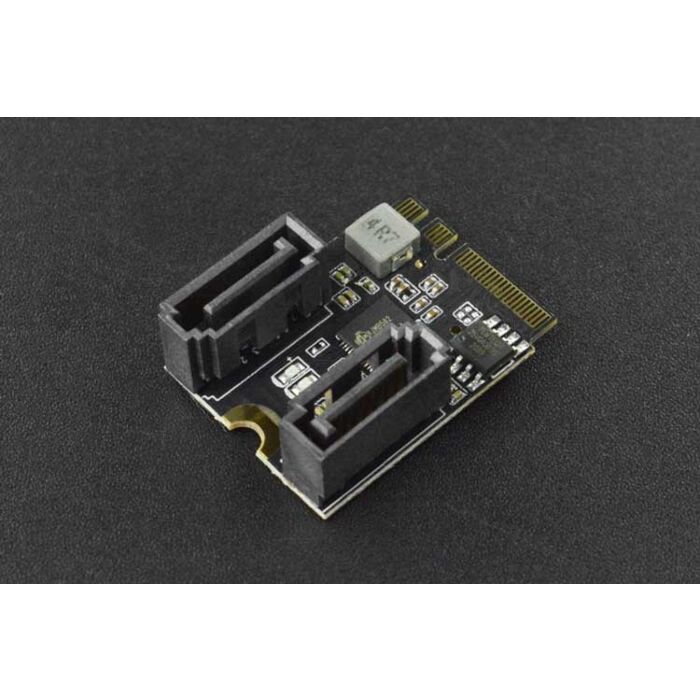

M.2（A+E Key）to SATA3.0 Expansion Card for LattePanda Delta/Alpha

SKU: FIT0771 Brand: DFRobot

This is an M.2 (A+E Key) to SATA3.0 two-port adapter expansion card that can transfer out 2 SATA ports through the M.2 (A+E Key) slot of the PC host. LattePanda Delta/Alpha users can connect two SATA ports’ solid-state drives or hard disk drives through SATA data cable at the same time. With outstanding PCle3.1 bus bandwidth integrated, it has a faster data transmission speed and is committed to providing LattePanda Alpha users with faster speed, lower power consumption, high reliability, and high-performance storage solutions.

$33.60 AUD, inc GST

$30.55 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 20 and Apr 23

Quantity Discounts:

6+ $29.02 (exc GST)
12+ $27.80 (exc GST)

Introduction

Note: This M.2(A+E Key)to SATA3.0 Expansion Card is not compatible with LattePanda V1.

The expansion card is equipped with two standard SATA interfaces. Users only need to insert this card into the M.2 slot of the motherboard, and then connect two SATA interface SSD solid-state drives or hard disk drives at the same time through the SATA data cable.

Using PCle3.1 bus bandwidth, the data transmission speed is much faster than PCle2.0.

The expansion card is compatible with Windows7 (X86/X64); Windows8/8.x/10 (X86/X64) (Windows built-in driver); Linux operating system. It can be widely used in LattePanda Delta/Alpha, PC computers, servers, industrial computers, and various storage devices.

Specification

Supports one channel of PCI Express
Support NGFF (M.2) 2230 key A/E
Compliant with PCI Express basic specification revision 3.1a
Support PCI Express link-layer energy-saving mode
Support 2 SATA ports
M.2 A+E Key
Support port multiplier
Compliant with SATA specification revision 3.2
Support command-based and FIS-based port multipliers
Support AHCI mode and IDE programming interface
Support native command queue (NCQ)
Support SATA link energy-saving mode (partial and hibernation)
Support SATA plug-in detection function
Support drive power control and staggered rotation
Support SATA Partial / Slumber power management status
Size: 30mm*21mm/1.18*0.83”

Shipping List

M.2(A+E Key)to SATA3.0 Expansion Card x1
User Manual x1
SATA Cable x1
M.2 Screw x1
