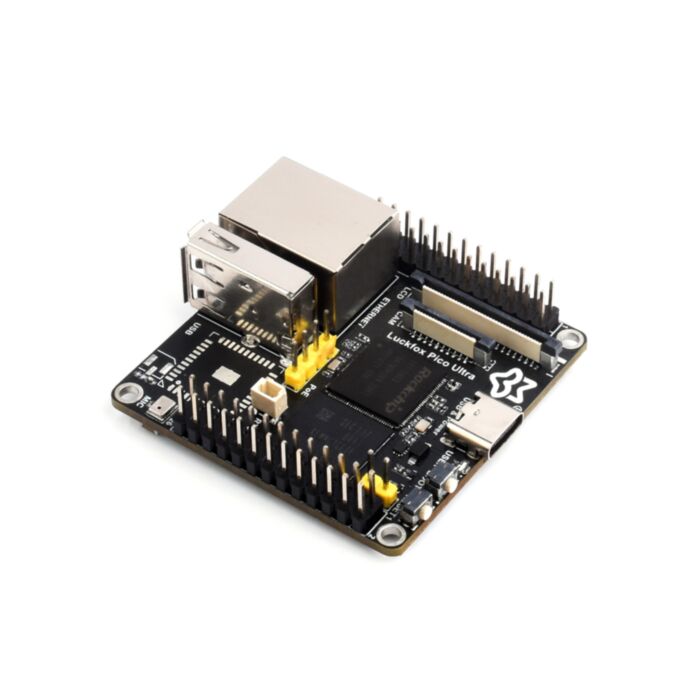

Luckfox Pico Ultra RV1106 Linux Micro Development Board

SKU: WS-27399 Brand: Waveshare

Luckfox Pico Ultra RV1106 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, Optional for Wireless / PoE Module /...

$49.45 AUD, inc GST

$44.95 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 04

Quantity Discounts:

10-25 $43.61 (exc GST)
25+ $42.71 (exc GST)

Equipped with a single-core ARM Cortex-A7 32-bit processor, featuring integrated NEON and FPU for enhanced performance. It includes a Rockchip 4th generation NPU that supports int4, int8, and int16 hybrid quantization, offering impressive computational capabilities of 1TOPS in int8. The built-in ISP3.2 supports 5-megapixel resolution and provides advanced image processing with HDR, WDR, and noise reduction features. With powerful encoding capabilities, this device uses intelligent encoding to cut bit rates by over 50% compared to conventional methods, ensuring high-definition images at smaller sizes. It also includes 16-bit DRAM DDR3L to meet high memory demands.

What's On Board

Luckfox Pico Ultra series, onboard components

USB Type-C connector for power supply and program burning
USER-LED for indicating system operation status in the default image, programmable indicator
BOOT button Press it when powering on or resetting to enter download mode
RESET button
GPIO header
Onboard microphone
Antenna connector
WIFI/Bluetooth module 2.4G WiFi 6; BT5.2/BLE Bluetooth module
USB-A Interface Switching with USB Type-C by chip, enabled automatically for USB communication when USB-C is not connected
RJ45 100M Ethernet port
Speaker header MX1.25 2P connector, supports 8O 1W speaker
RGB LCD Interface
CSI camera interface MIPI CSI 2-lane
RV1106G3Vision processor SoC with built-in ARM Cortex-A7 core
KLM8G1GETF-B041 8GB EMMC
RTC battery connector
PoE module header
PoE module / external power supply header for connecting external 5V power supply or PoE module power supply

Pinout

Luckfox Pico Ultra series, pin definition

Dimensions

Luckfox Pico Ultra series, outline dimensions
