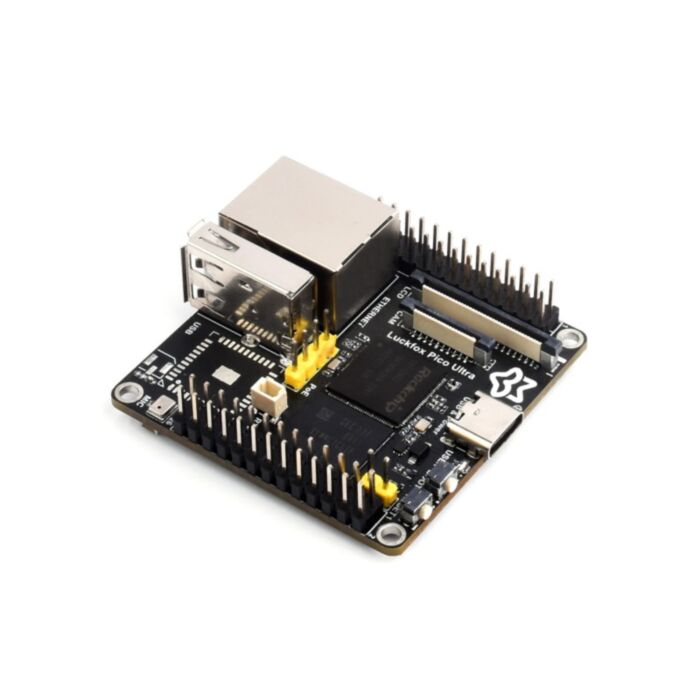

Luckfox Pico Ultra RV1106 (without wireless, POE or LCD)

SKU: WS-27103 Brand: Waveshare

Luckfox Pico Ultra RV1106 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, Optional for Wireless / PoE Module /...

Special Price $23.82 AUD, inc GST

Regular Price $31.25 AUD, inc GST

$21.65 AUD, exc GST

Special pricing ends 02 June 2025

* this special may end earlier than shown

Available with a lead time
Expect dispatch between Mar 13 and Mar 17

The Luckfox Pico Ultra RV1106 Linux Micro Development Board integrates advanced ARM Cortex-A7/RISC-V MCU/NPU/ISP processors, providing powerful performance for various applications. Optional modules for wireless connectivity, PoE, and IPS LCD displays enhance its versatility.

Features

Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
Built-in Rockchip self-developed 4th generation NPU, supporting high computing precision and hybrid quantization (int4, int8, int16). RV1106G3 delivers an int8 computing power of 1 TOPS.
Third-generation ISP3.2 supporting 5-Megapixel sensors with advanced algorithms such as HDR, WDR, and multi-level noise reduction.
High-performance encoding with intelligent encoding mode, saving over 50% bit rate compared to conventional CBR mode.
Integrated 16-bit DRAM DDR3L for demanding memory bandwidths.

WiFi and Bluetooth

The Luckfox Pico Ultra W series includes a 2.4GHz WiFi 6 and Bluetooth 5.2/BLE module, ensuring stable connections and efficient data transmission.

Luckfox Pico Ultra series, onboard WiFi 6 and Bluetooth module

Power Over Ethernet (PoE)

An optional PoE module provides both network connection and power supply through a single Ethernet cable, adding flexibility for power supply options.

Luckfox Pico Ultra series, optional for PoE Module

Display Options

The Luckfox Pico Ultra supports optional 4" IPS touch displays with high responsiveness and vibrant visuals, making development more intuitive and efficient.

LF40 480480 ARK, capacitive touch

Display Specifications

Specification	480x480	720x720
Resolution	480×480	720×720
Communication Interface	RGB666
Size	4"
Display Panel	IPS
Touch Type	Capacitive
Touch Chip	GT911
Brightness	400cd/m²
Operation Temperature	-20~70°C
Contrast Ratio	380:1	1000:1
Viewing Angle	160°	170°
Outline Dimension	84.2×84.2mm	84.0×84.0mm
Display Area	71.86×70.18mm	71.93×71.93mm
Pixel Pitch	0.1497×0.1462mm	0.0999×0.0999mm
Display Colour Gamut	-	68% NTSC

Resources

Wiki for Luckfox Pico Ultra
