LPB40B IP65 DToF Single-Point Ranging LiDAR Sensor (0.05-40m, UART)

Skip to the beginning of the images gallery

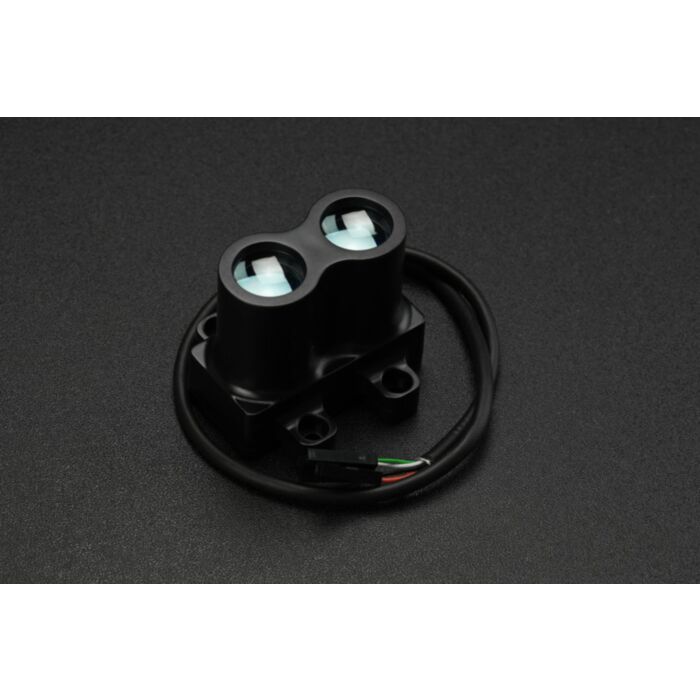

LPB40B IP65 DToF Single-Point Ranging LiDAR Sensor (0.05-40m, UART)

SKU: SEN0586 Brand: DFRobot

The LPB40B LiDAR sensor based on DToF technology, is the ultimate collision avoidance solution for your vehicles and drones. Its high-speed measurement...

Special Price $129.72 AUD, inc GST

Regular Price $153.57 AUD, inc GST

$117.93 AUD, exc GST

Available with a lead time
Expect dispatch between May 06 and May 08

This equipment uses a laser and has the following restrictions:

the equipment is not intended for sale to the general public
the equipment is intended to be used in trades, professions or industries
the domestic or international prototype/product this equipment is to be used in will comply with relevant laws
the end-user of this equipment is licensed and trained to safely work with lasers

A declaration of use will need to be submitted during checkout.

The LPB40B Single-Point Ranging LiDAR based on the DToF principle. The DToF technology enables the laser radar to work stably under strong outdoor lighting, further improving the stability and accuracy of distance measurement. It is capable of withstanding up to 100klux of ambient light, with a range of up to 40m indoors and outdoors. The overall accuracy is within ±5cm, and the measurement frequency is adjustable from 1 to 2000Hz, making it suitable for various high-speed scenarios. The sensor has UART output, allowing users to use it in conjunction with an Arduino IO expansion board. It can be applied in applications such as altitude hold for drones, collision avoidance for vehicles, intelligent transportation, and IoT security.

The radar has an IP65 protection rating, and the lens is made of coated crown glass, ensuring stability and reliability in industrial environments. It also includes protection measures against reverse connection, overvoltage, and current limitation.

DToF Technology principle

Waterproof IP65 Protection Level

IP65 Protection Level

Dimensional drawing of LPB40B ToF Single-Point Ranging LiDAR

Features

The measurement range for both indoor and outdoor is up to 40m.

The accuracy is high, with a full range of ±5cm.

The measurement frequency is high, adjustable from 1 to 2000Hz.

The internal components include protection measures against reverse connection, overvoltage, and current limitation.

Certified with CE, FCC, ROHS, and FDA.

Applications

Gate detection

Drones follow up

Outdoor parking space inspection

High-speed rail inbound inspection

Level granary testing

Vehicle flow detection

Specification

Measurement Range: 0.05~40m (90% reflectivity indoors and outdoors) 0.05~12m (10% reflectivity indoors and outdoors)

Measurement Accuracy: ±5cm

Operating Voltage: 5V

Power Consumption: <130mA@5V

Communication Interface: UART

Wavelength: 905nm

Resolution: 1.5cm

Measurement Frequency: Adjustable from 1 to 2000Hz (default is 100Hz)

Protection Level: IP65

Ambient Light Immunity: 100klux

Laser Emission Angle: 0.17°

Reception Field of View: 2.2°

Operating Temperature: -40°C~85°C

Weight: 43g

Documents

Communication Protocol

Parts List

LPB40B DToF Single-Point Ranging LiDAR Sensor (0.05-40m) x1
