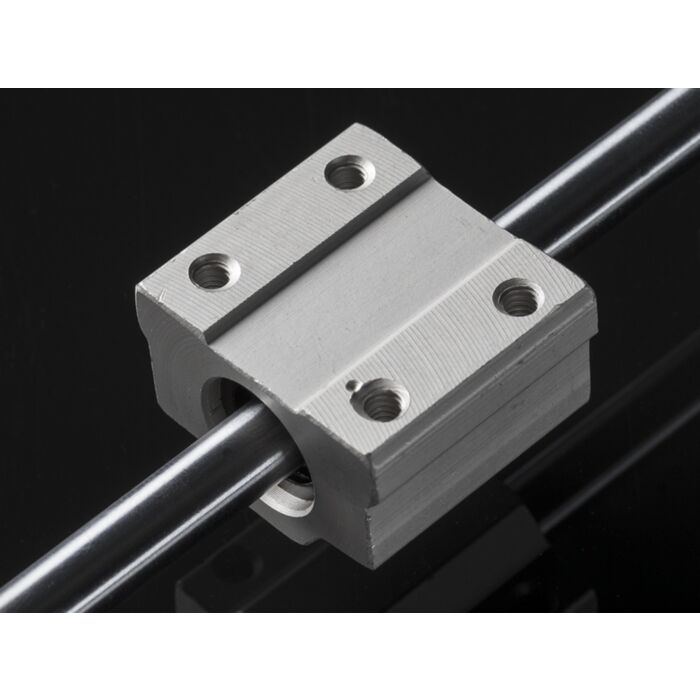

Linear Bearing Platform (Small) - 8mm Diameter - SC8UU

SKU: ADA1179 Brand: Adafruit

Make your robot or CNC move on rails super fast with a linear bearing platform. The platform is 34mm x 30mm and has four holes tapped for M4 machine screws so you...

$17.15 AUD, inc GST

$15.59 AUD, exc GST

Quantity Discounts:

10+ $14.96 (exc GST)
25+ $14.50 (exc GST)

Out of Stock

Make your robot or CNC move on rails super fast with a linear bearing platform. The platform is 34mm x 30mm and has four holes tapped for M4 machine screws so you can attach pretty much anything you want. All you need to get started is two 8mm supports and a precision-ground 8mm rod. Often times, CNC projects will have two of these on opposite sides to support a larger platform.

Comes as a single bearing. Adafruit have a bunch of bearings, supports and platforms that you may want to use with an 8mm based rail system so check out Adafruit's CNC category

Linear Bearing Platform (Small) 8mm Diameter (4:00)

Technical Details

For 8mm linear railings
Dynamic Load rating: 260 N
Static Load rating: 400 N
Weight: 56 grams
Four ball races
