Kitronik Steady Hand Game Project Kit (with Latch) - Single

SKU: KT-2108-01 Brand: Kitronik

This Steady Hand Kit sounds a buzzer as the loop and wire come into contact, an LED is also latched on until the reset button is pressed. Even the briefest...

$14.35 AUD, inc GST

$13.05 AUD, exc GST

Available with a lead time
Expect dispatch between May 19 and May 20

Quantity Discounts:

10+ $12.65 (exc GST)
25+ $12.39 (exc GST)

This steady-hand game has a buzzer that sounds momentarily when the loop makes contact with the wire.

It also has an LED, which latches on when the buzzer sounds via the use of a thyristor. It then remains on so that even the briefest contact of the loop with the wire can be indicated. A push button is used to reset the LED.

Features:

Buzzer sounds when loop makes contact with wire.
LED latched until reset button is pressed.
Bright LED to notify user.
Loud buzzer sound.

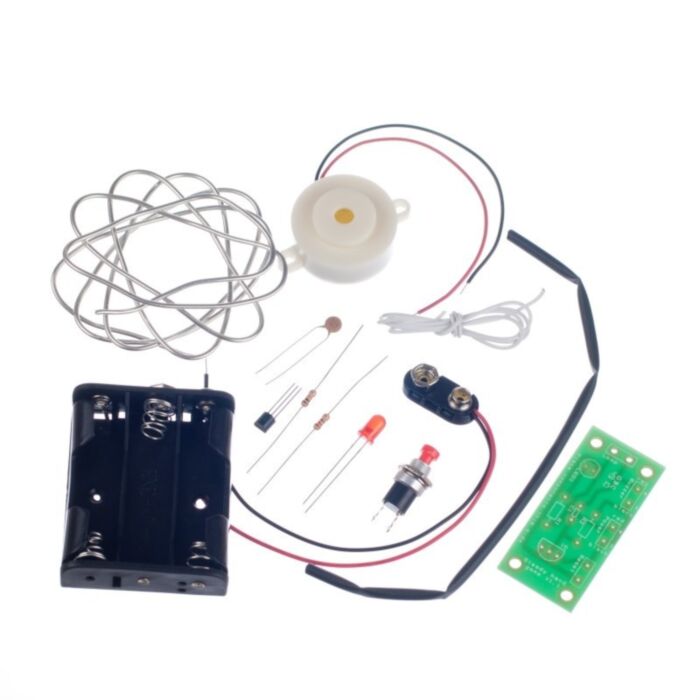

1 x PP3 Battery Clip Lead (Heavy Duty).
1 x 3xAA Battery Cage with Clip.
1 x 1m Extra Flexible Wire, Black.
1 x 1m Solid Core Cable.
1 x Piezo Buzzer (with Drive).
1 x 220R Resistor.
1 x 10K Resistor.
1 x Capacitor, Ceramic, 50V, 10nF.
1 x 2N5061 Thyristor.
1 x Red 5mm Diffused LED - 275mCd.
1 x Miniature Push to Make Switch, Red.
1 x 20cm length Black Heat Shrink, 2.4mm.
1 x Steady Hand PCB.

Dimensions:

PCB Length: 52mm.
PCB Width: 25mm.

Requires:

This product is listed in:

School Education>STEM & STEAM Kits
Home Education>Primary School
