J-Link EDU Base Programmer

SKU: PGM-15346 Brand: Sparkfun

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

The J-Link line of JTAG programmers from Segger is well known for their top of the line debuggers. A low-cost J-Link for educational purposes, the J-Link EDU is identical to J-Link BASE and offers the same functionality. It has been designed to allow students and educational facilities as well as hobbyists access to top of the line debug probe technology. The J-Link EDU is a great option for those getting started with JTAG/SWD programming and debugging, but want a bit more power than the EDU Mini.

With a USB port on one end, and a 20-pin JTAG connector on the other end, just plug in the included cable and connect to your favorite ARM board, or just connect the pins you need, to get started.

Note: This unit is for Educational and Home Hobby Use Only. Please be sure that you agree to these terms before purchasing: Terms of use. If you require commercial use, please check out our related products for other programmers such as the J-Link BASE Compact.

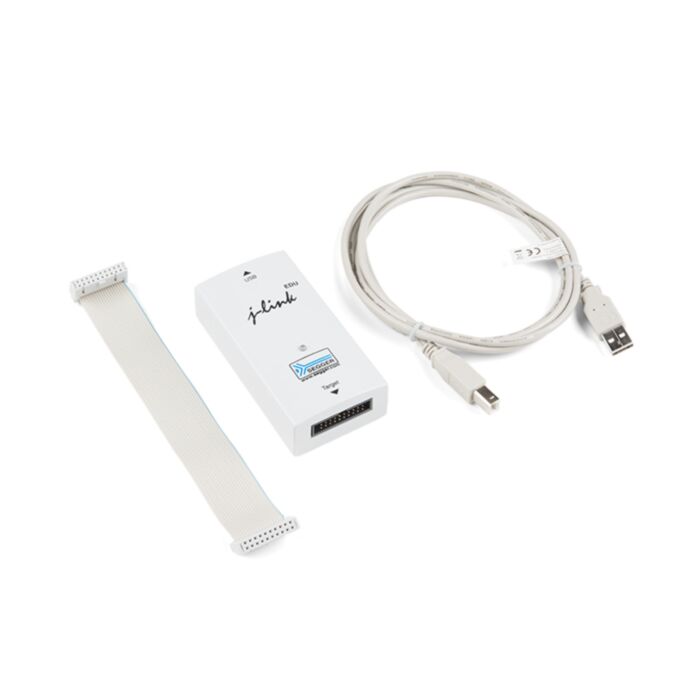

Includes

J-Link EDU Programmer
0.1" 20-pin ribbon cable
USB cable

Features

Unlimited Breakpoints
Free Software updates
Supports concurrent access to CPU by multiple applications
Crossplatform support (Windows, Linux, macOS)
- Linux and Mac versions are limited to J-Link Commander, command line GDBServer, shared library (DLL equivalent)
Size: 100mm x 53mm x 27mm
Weight: 70g
Target Interface Voltage: 1.2V ... 5V
Target Supply Voltage: 4.5V ... 5V (if powered with 5V on USB)
JTAG speed: Max 15MHz
SWO sampling frequency: Max 30MHz
Data input rise time and fall time: <=20ns
Data output rise time and fall time: <=10ns
Clock rise time and fall time: <=3ns
