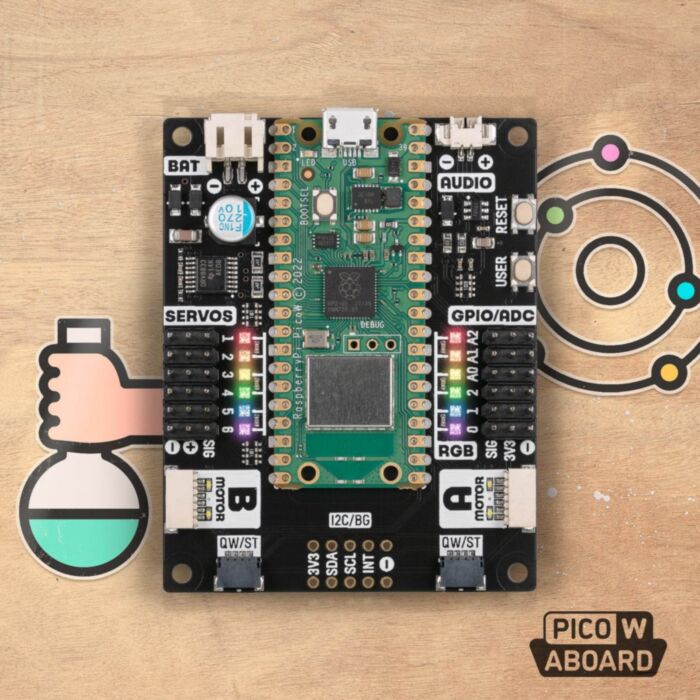

Inventor 2040 W (Pico W Aboard)

An all-in-one board for making battery powered contraptions that can move, (optionally) make noise, and talk to the internet!

Inventor 2040 is a multi-talented board that does (almost) everything you might want a robot, prop or other mechanical thing to do. Drive a couple of fancy motors with encoders attached? Yep! Add up to six servos? Sure? Attach a little speaker so you can make noise? No problem! It's also got a battery connector so you can power your inventions from AA/AAA or LiPo batteries and carry your miniature automaton/animated top hat/treasure chest that growls at your enemies around with you untethered.

You also get a ton of options for hooking up sensors and other gubbins - there's two Qw/ST connectors (and an unpopulated Breakout Garden slot) for attaching breakouts, three ADC pins for analog sensors, photoresistors and such, and three spare digital GPIO you could use for LEDs, buttons or digital sensors. Speaking of LEDs, Pimoroni has also somehow managed to fit in 12 addressable LEDs (AKA Neopixels) - one for each servo and GPIO/ADC channel (or just use the whole lot for making rainbows, that's fine too).

Best of all though, is the brains of the outfit - the onboard Raspberry Pi Pico W, which will give your creations 2.4GHz wireless connectivity. Use it to trigger your mechanical friends to do their thing remotely, or perhaps you can make a robotic bird that tweets, and also Tweets?

• Raspberry Pi Pico W Aboard
• Dual Arm Cortex M0+ running at up to 133Mhz with 264kB of SRAM
• 2MB of QSPI flash supporting XiP
• Powered and programmable by USB micro-B
• 2.4GHz wireless
• 2 JST-SH connectors (6 pin) for attaching motors
• Dual H-Bridge motor driver (DRV8833)
• Per motor current limiting (0.5A)
• Per motor direction indicator LEDs
• 2 pin (Picoblade-compatible) connector for attaching speaker
• JST-PH (2 pin) connector for attaching battery (input voltage 2.5V - 5.5V*)
• 6 sets of header pins for connecting 3 pin hobby servos
• 6 sets of header pins for GPIO (3 of which are ADC capable)
• 12 x addressable RGB LEDs/Neopixels
• User button
• Reset button (built in Captain Resetti!)
• 2 x Qw/ST connectors for attaching breakouts
• Unpopulated headers for adding a Breakout Garden slot
• Fully assembled
• No soldering required (unless you want to add the Breakout Garden slot).
• C/C++ and MicroPython libraries
• Schematic (coming soon)

Motors, servos, batteries and speakers are sold separately.

Our C/C++/MicroPython libraries provide an easy way to interface with the functions on this board. You'll get best performance using C++, but if you're a beginner we'd recommend using our batteries included MicroPython build for ease of getting started.
