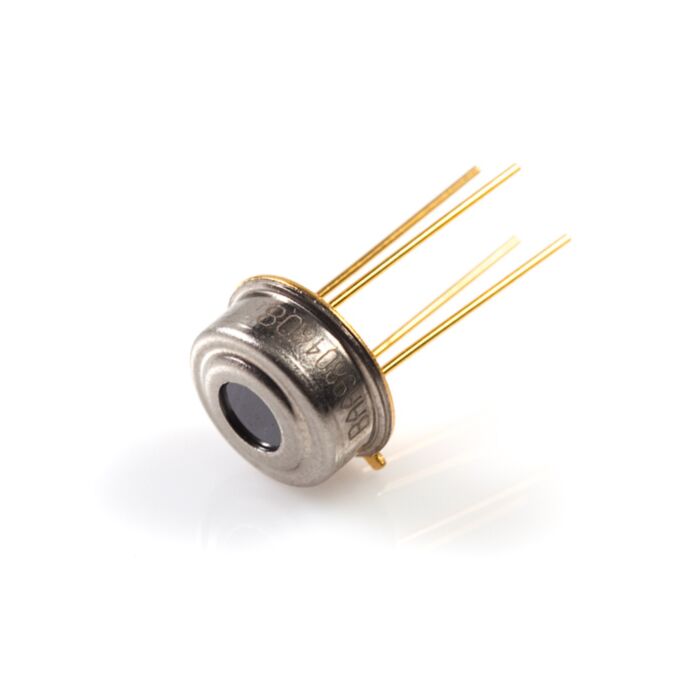

Infrared Thermometer - MLX90614

SKU: SEN-09570

$30.38 AUD, inc GST
$27.62 AUD, exc GST

More Views

Infrared Thermometer - MLX90614
30.38 AUD

SKU: SEN-09570

$30.38 AUD, inc GST
$27.62 AUD, exc GST
In stock, with a short lead time. 139 units dispatch in 3 to 6 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Tue, 24th of Oct with Express Post within Australia.
Shipping Offer

Melexis' MLX90614ESF-BAA is an infrared thermometer designed for non-contact temperature sensing. An internal 17-bit ADC and a powerful DSP contribute to the MLX90614’s high accuracy and resolution. It has a huge number of applications including body temperature measurment and movement detection.

The MLX90614 provides two methods of output: PWM and SMBus (i.e. TWI, I2C). The 10-bit PWM output provides a resolution of 0.14°C, while the TWI interface has a resolution of 0.02°C. The MLX90614 is factory calibrated in wide temperature ranges: -40 to 85°C for the ambient temperature and -70 to 382.2°C for the object temperature. The measured value is the average temperature of all objects in the Field Of View of the sensor. The MLX90614 offers a standard accuracy of 0.5°C around room temperatures.

This devices comes in an industry standard TO-39 package. We’re carrying the 3V version of this sensor.

Features:

  • Small size, low cost
  • Easy to integrate
  • Factory calibrated in wide temperature range:
    • -40 to +85°C for sensor temperature
    • -70 to +380°C for object temperature
  • SMBus compatible digital interface
  • Customizable PWM output for continuous reading
  • High accuracy of 0.5°C over wide temperature range (0 to +50°C for both Ta and To)
  • Measurement resolution of 0.02°C
  • Single and dual zone versions
  • Simple adaptation for 8 to 16V applications
  • Power saving mode
  • Different package options for applications and measurements versatility
  • Automotive grade

Documents:

Documentation and Resources:
