Humidity and Temperature Sensor - SHT15 Breakout - SHT15

SKU: ADA1638

$89.50 AUD, inc GST
$81.36 AUD, exc GST

More Views

Humidity and Temperature Sensor - SHT15 Breakout - SHT15

SKU: ADA1638

$89.50 AUD, inc GST
$81.36 AUD, exc GST

Retired Product

This product has been retired and kept here for reference.

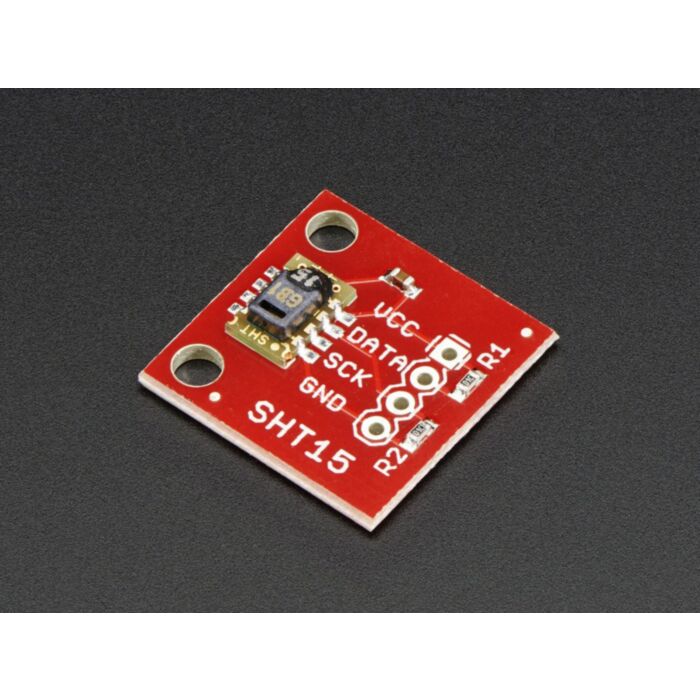

This is a simple breakout board for the SHT15 humidity sensor from Sensirion. The SHT15 digital humidity and temperature sensor is fully calibrated and offers high precision and excellent long-term stability at low cost. The digital CMOSens Technology integrates two sensors and readout circuitry on one single chip.

These sensors are really impressive! Very sensitive and straight forward to use. Board comes assembled and tested with the SHT15.

Applications:

  • Precise data logging
  • Transmitters
  • Automation & process control
  • Building control and HVAC
  • Test & Measurement
  • Medical

Humidity and Temperature Sensor - SHT15 Breakout (9:15)

Technical Details

Features:

  • 2 factory calibrated sensors for relative humidity & temperature
  • Digital 2-wire interface
  • Precise dewpoint calculation possible
  • Measurement range: 0-100% RH
  • Absolute RH accuracy: +/- 2% RH (10...90% RH)
  • Repeatability RH: +/- 0.1% RH
  • Temp. accuracy: +/- 0.3°C @ 25°C
  • Fast response time < 4 sec.
  • Low power consumption (typ. 30 µW)
  • High precision sensor at low cost
  • Leading CMOSens Technology for superior long-term stability
  • Dimensions: 20mm / 0.8" x 20mm / 0.8"
  • Weight: 1.3g
