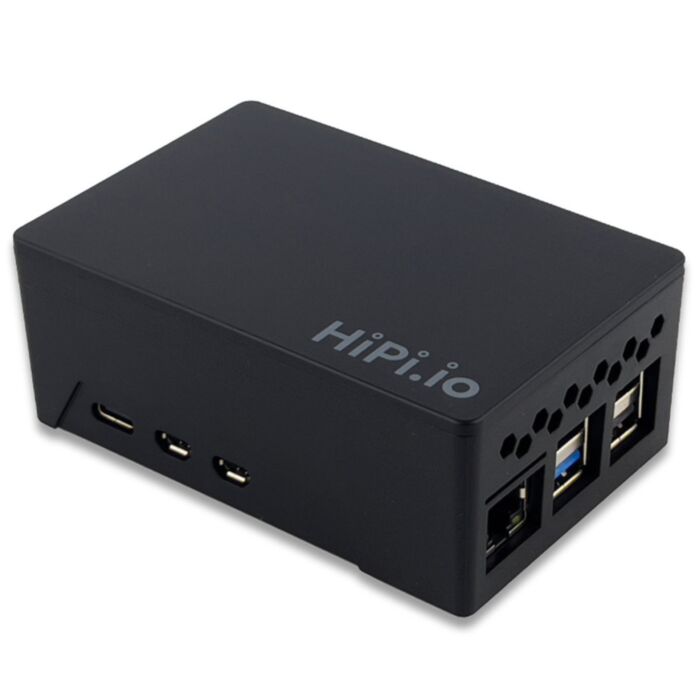

HighPi Pro 5S Toolless Pi 5 Case
Quantity Discounts:
- 10+ $21.65 (exc GST)
- 25+ $20.96 (exc GST)
Out of Stock
Sign up to get notified when it's available to order.
The HighPi Pro 5S Case revolutionizes the way you house and cool your Raspberry Pi 5, offering a sophisticated blend of functionality and accessibility. This toolless design seamlessly accommodates the Raspberry Pi 5's active cooler while providing generous space for HAT expansions, making it an ideal solution for complex development projects, educational setups, and professional prototyping environments.
Key Features- Optimized ventilation system designed specifically for the Raspberry Pi 5 active cooler
- Toolless assembly and disassembly mechanism for rapid access and modifications
- Integrated power button and status LED visibility for enhanced user interaction
- Strategic camera cable routing above the ethernet port
- Secure microSD card protection with innovative removable cover system
- Expansive internal volume supporting various HAT configurations
- VESA mount compatibility for flexible mounting options (mount kit forthcoming)
- Premium ABS construction with precise dimensional specifications (101 x 67 x 42mm)
- Construction Material: High-quality ABS Plastic (Lustran 433)
- External Dimensions: 101 x 67 x 42mm
- Internal Clearance: 85 x 56 x 30.5mm
- HAT Compatibility Height: Up to 14.5mm with Active Cooler (using 16mm standoffs)
- Alternative Configuration: Up to 30.5mm above PCB without Active Cooler
- Install the Raspberry Pi 5 Active Cooler and any additional components on your Raspberry Pi 5
- Slide the assembled board into the front of the case, aligning USB-C and micro-HDMI ports
- Press down firmly on the rear of the board until it clicks into place
- Insert the lid's right edge first, then snap down the left side
Removal Process
- To remove the lid: Gently push upward on the bump beneath the hexagon vents
- To remove the board: Pull outward on the securing snap with your finger
- 1x HighPi Pro 5S Case
- 4x Rubber feet for stability
The HighPi Pro 5S Case has been specifically engineered for the Raspberry Pi 5 and supports:
- Official Raspberry Pi 5 Active Cooler
- Power over Ethernet (PoE) HATs
- NVMe storage HATs
- UPS HATs
- Standard HATs up to 14.5mm tall (with Active Cooler)
- Oversized cooling solutions up to 30.5mm (without Active Cooler)
PiHut is a renowned manufacturer of Raspberry Pi accessories, specializing in creating high-quality, innovative solutions for the Raspberry Pi ecosystem. Their products are designed with attention to detail and manufactured to exacting standards, ensuring optimal compatibility and performance for educational, professional, and hobby applications.
