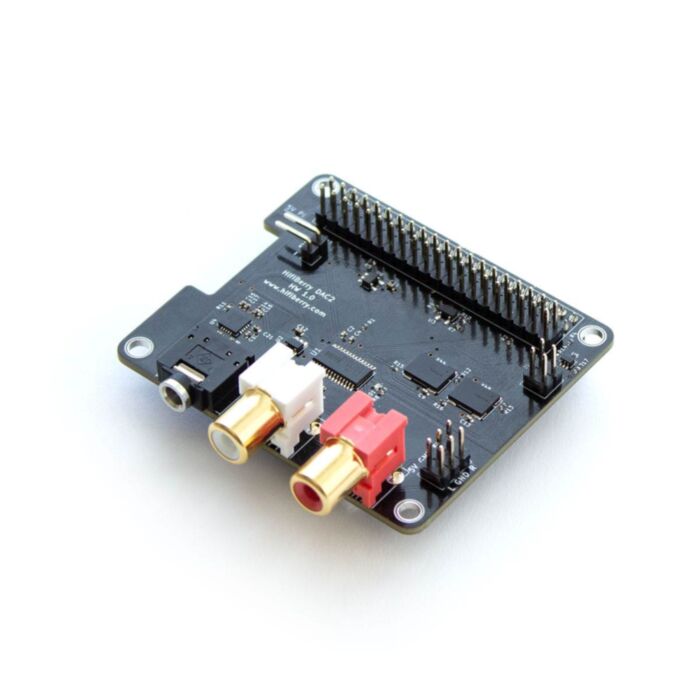

HiFiBerry DAC2 Pro

Rating:
100% of 100
SKU: CE08661 Brand: HiFiBerry
HiFiBerry's DAC2 Pro is the sucessor of your popular DAC+ Pro. It comes with integrated dual-domain low-jitter clocks and gold-plated RCA connectors.
$109.95 AUD, inc GST
$99.95 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

  • 5-10 $95.95 (exc GST)
  • 10+ $92.95 (exc GST)
- +

10 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The HiFiBerry DAC2 Pro is a high-resolution digital-to-analog and analog-to-digital converter for the Raspberry Pi (newer models with 40 pin GPIO connector). This is a special sound card for the Raspberry Pi, optimised for one specific use case: affordable high-quality audio playback.

Features

  • Stereo output
  • Integrated headphone amplifier
  • can be equipped with an additional Digital Signal Processor (DSP) for flexible audio processing
  • Dedicated 192kHz/24bit high-quality Burr-Brown DAC
  • Hardware volume control for DAC. You can control the input and output parameters using “alsamixer” or any application that supports ALSA mixer controls.
  • Connects directly to the Raspberry Pi, no additional cables needed
  • No soldering, comes as a pre-fabricated kit. You just plug it onto the Raspberry Pi, it is conform to the Raspberry Pi hardware-attached-on-top (HAT) specification.
  • Compatible with all Raspberry Pi models with a 40-pin GPIO connector
  • Directly powered from the Raspberry Pi, no additional power supply
  • Two ultra-low-noise linear voltage regulators for optimal audio performance
  • Low-jitter dual-domain clock for optimised clock decoupling from the Raspberry Pi
  • HAT compliant, EEPROM for automatic configuration
  • Gold plated RCA output connectors
  • Comes with all components required to mount it. We include 4 M2.5x12mm spacers to fix the board onto the Raspberry Pi
  • Audio connector to connect analog audio amplifier

Hardware

1Burr-Brown DAC
2Low-jitter clock circuit
3Headphone amplifier

Connectors



1Line output
2Headphone output
3Analog output (compatible with Aamp60)
4DSP expansion header (compatible with DSP add-on board)

Output Connectors

This connector can be used to connect to external components, e.g. an amplifier. The output is connected in parallel to the RCA jacks. Pin 1 is on the top left.

+5V12R
GND34GND
+5V56L

Specifications

Maximum output voltage2.1Vrms
DAC signal-to-noise ratio112dbtypical
DAC THD+N-93dbtypical
Frequency response10Hz-70kHz-3dB
Power consumption<0.3W
Sample rates44.1-192kHz

Configuration

Overlay for config.txt:
dtoverlay=hifiberry-dacplus

Documentation
