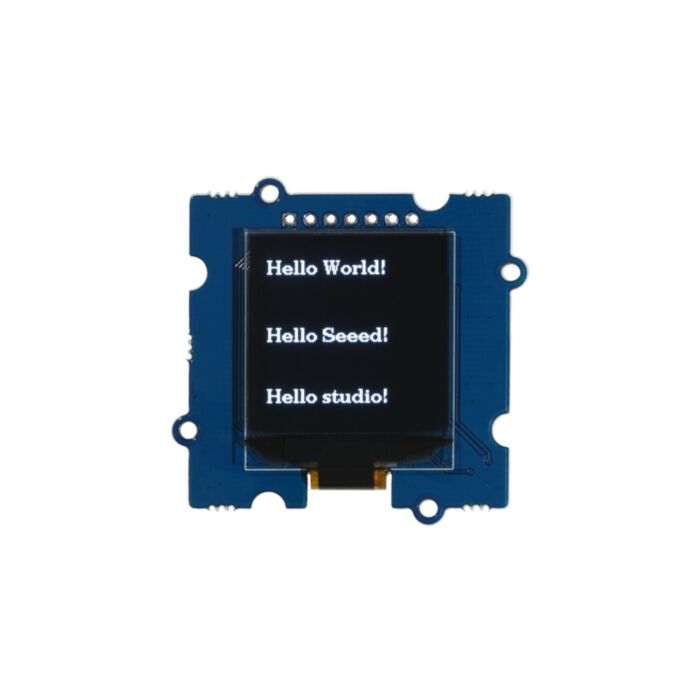

Grove - OLED Display 1.12 (SH1107) V3.0 - SPI/IIC -3.3V/5V

SKU: SS104020250 Brand: Seeed Studio

The Grove - OLED Display 1.12 V3.0 (SH1107) is a monochrome display with 128*128 resolution. It has a lower price, user-friendly design and better...

$25.70 AUD, inc GST

$23.36 AUD, exc GST

Available with a lead time
Expect dispatch between May 05 and May 06

Quantity Discounts:

10+ $22.43 (exc GST)
25+ $21.73 (exc GST)

We had Grove - OLED Display 1.12'' V2, a monochrome(white) 128×128 pixels grayscale display matrix module with Grove I2C Interface, and now we have a better-designed one with lower price.

Key Features

3.3V/5V power supply compatible
Changeable I2C address
SPI available
Low power consumption
monochrome 128×128 pixels
High contrast, high brightness
Wide operating temperature range: -40° ~ +85°
Grove connector is hidden on the back

Description

The Grove - OLED Display 1.12 V3.0 (SH1107) is a monochrome display with 128*128 resolution. Compared with LCDs, there are many advantages of OLED(Organic Light Emitting Diode) like self-emission, high contrast ratio, slim/thin outline, wide viewing angle and low power consumption. The display works on both 3.3V and 5V supply voltage.

You can use either the I2C or SPI interface to light up the display with your microcontroller to display words, images, and whatever you want. SPI helps to get the quicker images reaction which brings a better product experience.

Specification

Parameter	Value
Input voltage	3.3V / 5V
Output Voltage	0 ~ 2.3V
Pixels	128 x 128
Temperature Range	-40° ~ +85°
Interface	I2C/SPI
