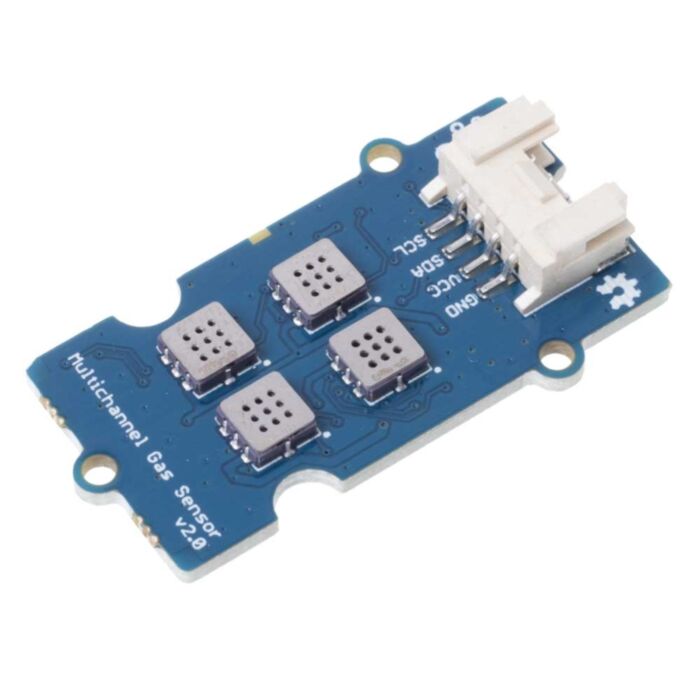

Grove - Multichannel Gas Sensor v2

SKU: SS101020820 Brand: Seeed Studio

$58.05 AUD, inc GST

$52.77 AUD, exc GST

Available with a lead time
Expect dispatch between May 08 and May 14

Quantity Discounts:

6-12 $50.66 (exc GST)
12+ $49.08 (exc GST)

Worried about not recognizing the gas around your workplace or other surroundings and environment? Here comes the excellent solutions we offer! Grove - Multichannel Gas Sensor V2 has 4 measuring units, each of them is sensitive to various kinds of gases, which means you are able to get four sets of data at the same time. And different sorts of gases can also be judged by these four sets of data. The gas sensor used in this module is based on MEMS technology and has the advantage of being in a small size with considerable measurement stability and is more suitable for qualitative than quantitative measurement.

Features

Four fully independent sensor elements on one package.
The ability to detect a variety of gases, besides Carbon monoxide (CO), Nitrogen dioxide (NO2), Ethyl alcohol(C2H5CH), Volatile Organic Compounds (VOC) and etc.
Qualitative detecting, rather than quantitative.
Compact size for easy deployment.

Specifications

Interface: 0x55
I2C address: 3.3V-5V
Onboard Gas Sensors: GM-102B; GM-302B; GM-502B; GM-702B

Note: Before using it, the sensor needs to be preheated to achieve the internal chemical balance. The preheat voltage is consistent with its heating voltage VH. And the storage time and corresponding warm-up time are recommended as follows:

How Does Storage Time Affect The Recommended Warm-Up Time of This Sensor?

Storage Time	Recommended warm up-time
Less than 1 month	No less than 24hours
1-6 months	No less than 48hours
Over 6 months	No less than 72hours

Cautions

The module should avoid being placed in the volatile silicon compound steam, or it will cause the sensitivity to be reduced and irrecoverable.
The module should avoid being exposed to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.), otherwise, it will be irreversibly damaged.
The module should not be placed in water or ice.
After the module is powered on, the sensor will heat up to a certain degree during the process, which is a normal phenomenon.
Users MUST preheat the module before starting to measure gases.

What is Grove?
Grove makes it easier to connect, experiment, and simplify the prototyping process. No jumpers or soldering required. We have developed more than 300 Grove modules, covering a wide range of applications that can fulfil a variety of needs. Not only are these open hardware, but we also have open-source software.

Note: For all Grove users (especially beginners), we provide you with the guidance of operation from SEEED Studio. Please download and read through Sensor - Gas and Seeed Gas Sensor Selection Guide before your using the product.

Documentations

This product is listed in:

Sensors>Gas & Smoke
