YARD Stick One

SKU: GSG-YARD-STICK-ONE

Sub-1 GHz USB wireless test tool for makers, transmit and receive ASK, OOK and GFSK, control from Python via RfCat for RF prototyping.

$174.95 AUD, inc GST

$159.05 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 14th of Oct

For use in Australia

Operate only in bands and with settings that are permitted for your location and application. Check this product’s supported frequencies in the description/specs.
If you intend to operate outside shared/licence‑exempt conditions (e.g. in other bands, at higher power, with high‑gain antennas, or extended duty cycles), you must have the appropriate authorisation.

For use in other regions

Follow the spectrum rules for your country/region and select frequencies and settings accordingly.

A declaration of use will need to be submitted during checkout.

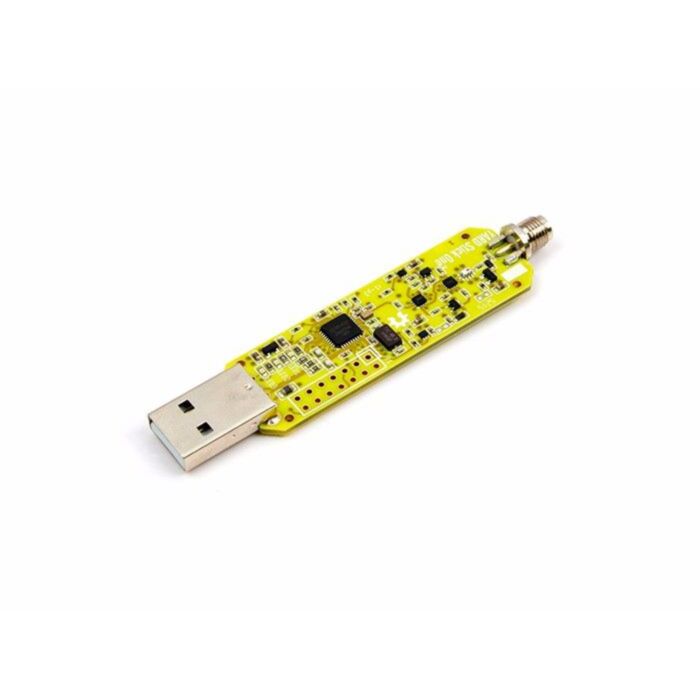

YARD Stick One is a compact, sub-1 GHz wireless test tool that plugs straight into USB and gets you talking to low speed digital radios fast. Ideal when you want a nimble, computer-controlled transceiver instead of a full SDR.

Explore, characterise, and prototype links across common ISM bands for projects such as industrial control systems, wireless sensor networks, smart meters, home automation, garage door remotes, and remote keyless entry. Check local regulations before transmitting.

Technical Specifications

Operating mode	Half-duplex transmit and receive
Official frequency ranges	300-348 MHz, 391-464 MHz, 782-928 MHz
Additional tunable ranges	281-361 MHz, 378-481 MHz, 749-962 MHz
Supported modulations	ASK, OOK, GFSK, 2-FSK, 4-FSK, MSK
Maximum data rate	Up to 500 kbps
USB interface	Full-Speed USB 2.0
Antenna interface	SMA connector for external antennas
RF front end	Integrated RX amplifier for sensitivity and TX amplifier for higher output power
Filtering	Low pass filter to reduce harmonics in the 800 and 900 MHz bands
Antenna port power control	Compatible with antenna port accessories designed for HackRF One
Expand/program	GoodFET-compatible expansion header and GIMME-compatible test points
Firmware	Ships with RfCat firmware installed; CC Bootloader preloaded for easy updates
Mechanical	84 x 19 x 6 mm, approx. 7.8 g
Included antenna	Not included; an external SMA antenna is required

Compatible accessories and tools:

Great Scott Gadgets ANT500 telescopic antenna	75 MHz to 1 GHz, SMA male, 50 ohm general purpose antenna
Great Scott Gadgets ANT700 telescopic antenna	300 MHz to 1100 MHz, SMA male, lightweight, 50 ohm
RfCat software toolkit	Interactive Python control of the transceiver from your computer
HackRF One antenna port accessories	Supported via YARD Stick One antenna port power control
GoodFET-compatible programmers	Use the onboard header for development and debugging
GIMME-compatible test points	For production test or low-touch programming workflows

Additional Resources

What’s Included

YARD Stick One USB dongle
