GreatFET One
Open-source USB development board for hardware debugging and embedded systems, with logic-level GPIO, protocol sniffing and scriptable peripheral emulation.
In stock, ships same business day if ordered before 2PM
Delivered by Tue, 23rd of Sep
GreatFET One is an open source, high-speed USB interface board designed to be a custom USB peripheral, logic analyser, debugger and general-purpose I/O expander. It pairs a high-performance ARM microcontroller with two USB ports and a flexible 100-pin expansion area so you can attach "neighbour" add-on boards or wire directly into projects.
Use cases include USB protocol experimentation and man-in-the-middle proxying, multi-protocol chip interfacing (SPI, I2C, UART, JTAG), high-throughput streaming serial, logic analysis and simple analogue data acquisition. The board ships ready for development with a Python-friendly API and documentation to get you started quickly.
Technical Specifications
| Product name | GreatFET One (a.k.a. Azalea) |
| Manufacturer | Great Scott Gadgets |
| Microcontroller | NXP LPC4330 (ARM Cortex-M4 core, 204 MHz). |
| Flash / Memory | 2 MBytes flash |
| USB | Two USB ports: one host and one peripheral (Hi-Speed USB). Suitable for man-in-the-middle USB tasks. |
| Expansion / headers | 100 expansion pins total: expansion interface made from two female headers (2 x 20 pins each) plus a bonus row of 20 male pins (80 pin female + 20 male = 100). I/O pins are 3.3 V rated. |
| Protocols and features | Programmable digital I/O; SPI, I2C, UART, JTAG; logic analysis; analogue I/O (ADC/DAC); high-throughput streaming serial engine; FaceDancer support. |
| I/O voltage | 3.3 V signalling on I/O pins. |
| Dimensions | 101.6 mm x 101.6 mm x 7.6 mm (4" x 4" x 0.3"). |
| Box contents (shipped) | GreatFET One board, ESD bag, high-speed USB (micro B) cable, and a Wiggler removal tool. Enclosures and neighbours sold separately. |
| Open source | Hardware design files and firmware are open source; official documentation is hosted in the GreatFET manual and project repositories. |
Compatibility
| Interface | Notes |
|---|---|
| SPI | Supported for device and peripheral chip interfacing. |
| I2C | Master and slave style interactions supported for sensors and peripherals. |
| UART / Serial | Multiple serial interfaces and high-throughput streaming serial engine. |
| JTAG / SWD | Unpopulated Cortex debug header provided for external debug connections. |
| USB host / peripheral | Dual USB ports allow host and device roles, enabling USB proxying and Facedancer-style USB experiments. |
| ADC / DAC | Analogue I/O available for simple data acquisition tasks. |
| GreatFET neighbours | Stackable add-on boards ("neighbours") expand RF, GPIO, prototyping and other functions (sold separately). |
Additional Resources
- GreatFET manual on Read the Docs — official user and developer documentation.
- GreatFET hardware and firmware repositories on GitHub — hardware design files and source.
- GreatFET tutorials — step-by-step examples and projects.
- FaceDancer on GitHub — used for advanced USB peripheral emulation.

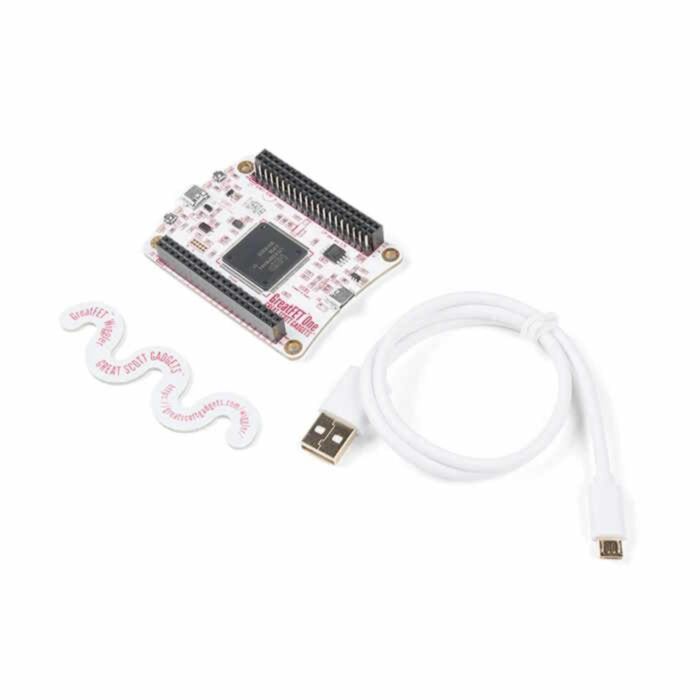

What's Included
- GreatFET One board
- High-speed USB micro B cable for host/peripheral connection
- Wiggler tool to assist safe neighbour removal
