GSG-Opera-Cake

SKU: GSG-OPERA-CAKE

Antenna-switching board for SDRs that automates port routing by frequency or time across 1 MHz to 4 GHz, optimised for multi-antenna sweeps.

$309.95 AUD, inc GST

$281.77 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 23rd of Sep

Switch antennas in software, not with a spanner. Opera Cake is the antenna-switching add-on for HackRF One that makes multi-antenna SDR workflows fast, neat, and repeatable.

Use it to automate port selection by frequency or time, route TX to the right antenna and inline RF hardware, and even switch antennas mid-sweep for wideband spectrum scans with hackrf_sweep. Its architecture supports either one 1x8 or two 1x4 switching topologies, giving you flexible RF plumbing without touching a cable. ([greatscottgadgets.com](https://greatscottgadgets.com/hackrf/operacake/))

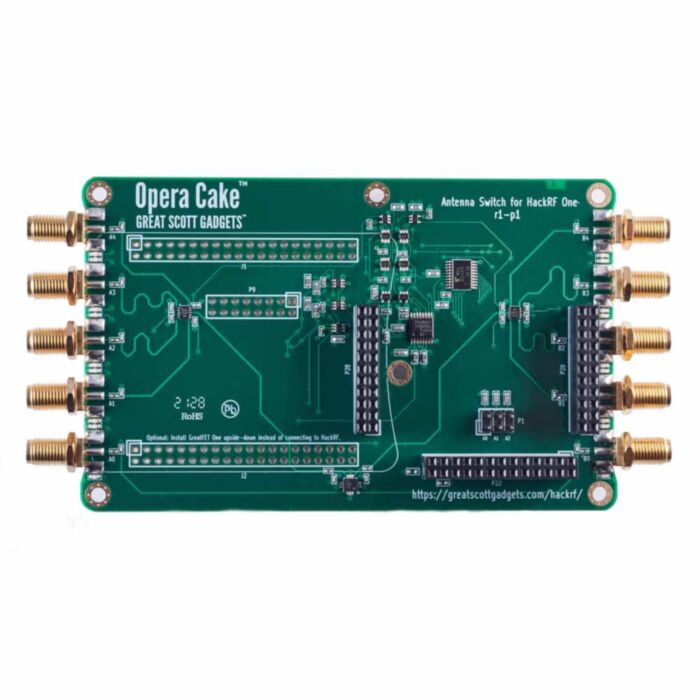

Great Scott Gadgets Opera Cake antenna switch add-on board for HackRF One showing SMA ports and board headers

Technical Specifications

Purpose: antenna switching add-on board for HackRF One.
Switch topology: two primary ports selectable to any of eight secondary ports; optimised as 1x8 or dual 1x4. ([greatscottgadgets.com](https://greatscottgadgets.com/hackrf/operacake/))
Recommended frequency range: 1 MHz to 4 GHz. ([greatscottgadgets.com](https://greatscottgadgets.com/hackrf/operacake/))
Control: command-line configuration; manual switching or automated by frequency or time. ([greatscottgadgets.com](https://greatscottgadgets.com/hackrf/operacake/))
TX integration: can auto-route HackRF One transmit output to selected antennas and external filters, amplifiers, etc. ([greatscottgadgets.com](https://greatscottgadgets.com/hackrf/operacake/))
Spectrum analysis: compatible with hackrf_sweep; supports automatic antenna changes mid-sweep. ([greatscottgadgets.com](https://greatscottgadgets.com/hackrf/operacake/))
Software impact: no changes required to existing SDR applications; full host control available. ([greatscottgadgets.com](https://greatscottgadgets.com/hackrf/operacake/))

Additional Resources

Great Scott Gadgets Opera Cake product page (overview, resellers, support): https://greatscottgadgets.com/hackrf/operacake/ ([greatscottgadgets.com](https://greatscottgadgets.com/hackrf/operacake/))
Great Scott Gadgets Opera Cake documentation on Read the Docs: https://hackrf.readthedocs.io/en/latest/opera_cake.html ([hackrf.readthedocs.io](https://hackrf.readthedocs.io/en/latest/opera_cake.html?utm_source=openai))
Opera Cake hardware design files (GitHub): https://github.com/greatscottgadgets/hackrf/tree/master/hardware/operacake ([greatscottgadgets.com](https://greatscottgadgets.com/hackrf/operacake/))
Opera Cake news and updates (Great Scott Gadgets blog): https://greatscottgadgets.com/tags/hackrf/ ([greatscottgadgets.com](https://greatscottgadgets.com/tags/hackrf/?utm_source=openai))

What’s Included

Opera Cake antenna switching add-on board for HackRF One.
