Gravity: Heart Rate Monitor Sensor

SKU: SEN0213

$28.96 AUD, inc GST
$26.33 AUD, exc GST

More Views

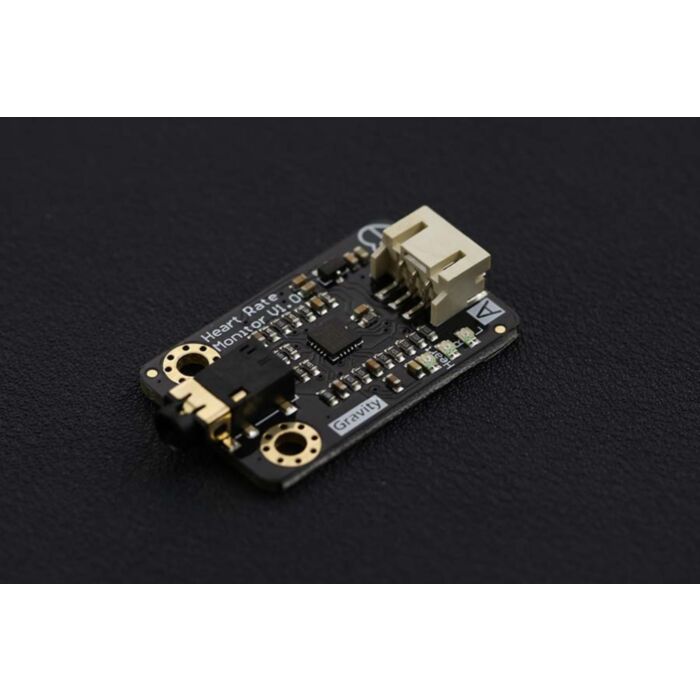

Gravity: Heart Rate Monitor Sensor
28.96 AUD

SKU: SEN0213

$28.96 AUD, inc GST
$26.33 AUD, exc GST
In stock, with a short lead time. 109 units dispatch in 3 to 5 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Tue, 29th of Aug with Express Post within Australia.

Introduction

The DFRobot Heart Rate Monitor Sensor is used to measure the electrical activity of the heart. This electrical activity can be charted as an ECG and output as an analog reading. An ECG signal can be extremely noisy so we have included an AD8232 chip on the PCB which will provide a clear signal from the PR and QT Intervals. Using the Arduino IDE "Serial Plotter" feature you are also able to view plotted ECG output on your PC!


via GIPHY


NOTE: This product is NOT a medical device and is not intended to be used as such or as an accessory to such nor diagnose or treat any conditions.

Specification

  • Input Voltage: 3.3-6V (5V recommended)
  • Output Voltage: 0-3.3V
  • Operating current: <10mA
  • imension: 35 x 22(mm), 1.378" x 0.866"(in)
  • Interface Type: PH2.0-3P

Documents

Parts List

  • Heart Rate Monitor Sensor x1
  • Sensor cable - Electrode Pads (3 connector) x1
  • Biomedical Sensor Pad x6
  • PH2.0-3P cable x1
Documentation and Resources:
