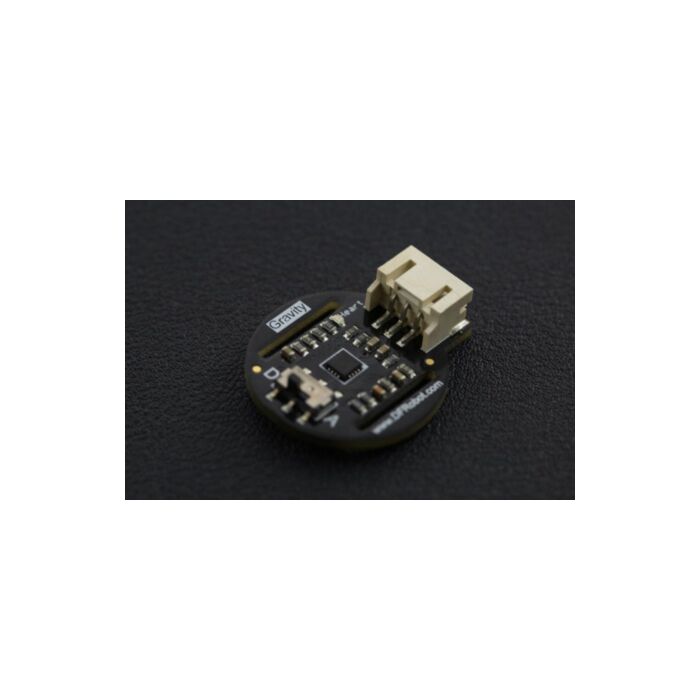

Gravity: Heart Rate Monitor Sensor For Arduino

SKU: SEN0203 Brand: DFRobot
The DFRobot heart rate sensor is a thumb-sized heart rate monitor designed for Arduino microcontrollers.
$27.65 AUD, inc GST
$25.14 AUD, exc GST

Available with a lead time
Expect dispatch between May 06 and May 13

Quantity Discounts:

  • 10-25 $24.38 (exc GST)
  • 25+ $23.88 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

The DFRobot heart rate sensor is a thumb-sized heart rate monitor designed for Arduino microcontrollers.

This sensor is a pulse sensor which is developed based on PPG (PhotoPlethysmoGraphy) techniques. This is a simple and low-cost optical technique that can be used to detect blood volume changing in the microvascular bed of tissues. It is relatively easy to detect the pulsatile component of the cardiac cycle according to this theory.

The sensor has two holes that you can use to attach to your belt. You can wrap on your finger, wrist, earlobe or other areas where it has contact with skin.

To ease the difficult of using this sensor,  a Gravity Interface is adapted to allow plug&play.  The Nano I / O Shield For Arduino Nano is the best match for this sound senor connecting to your Arduino or other microcontroller. As this sensor can work at 3.3V which make it compatible with Raspberry Piintel edison, joule and curie.

Gravity: Heart Rate Monitor Sensor For Arduino Demo Project 2

Gravity: Heart Rate Monitor Sensor For Arduino Demo Project 1


NOTE:
1. This product is NOT a professional medical device and should not be used to diagnose or treat medical conditions.
2. This sensor is designed to work when the user is not moving. If used while moving it will give inaccurate results.


Specification

  • Input Voltage (Vin): 3.3 - 6V (5V recommended)
  • Output Voltage: 0 - Vin (Analog), 0/ Vin (Digital)
  • Operating current: <10mA
  • Dimension: 28 x 24(mm), 1.102" x 0.945"(in)
  • Interface Type: PH2.0-3P


Documents

Parts List

  • Heart Rate Monitor Sensor For Arduino x1
  • Wrist belt x1
  • PH2.0-3P cable x1

This product is listed in:

Sensors>Biometric
