FTDI FT232BL USB to UART Chip - 10 pack

SKU: ADA5227 Brand: Adafruit

It's a blast-from-the-past with these FT232BL chips that we found while cleaning out a shelf at Adafruit. We haven't used these for years, having...

$62.60 AUD, inc GST

$56.91 AUD, exc GST

Quantity Discounts:

6-12 $54.64 (exc GST)
12+ $52.93 (exc GST)

Out of Stock

Description

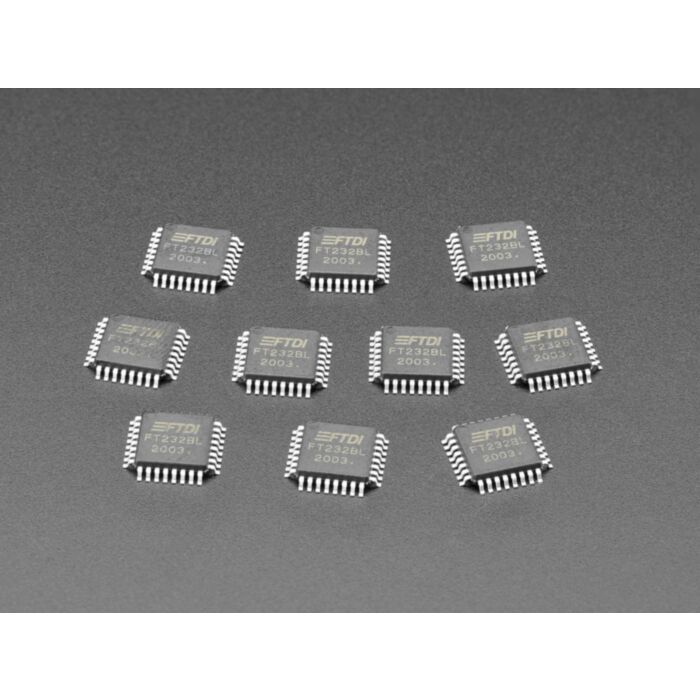

It's a blast-from-the-past with these FT232BL chips that Adafruit found while cleaning out a shelf at Adafruit. Adafruit haven't used these for years, having moved to the FT232R and CP210x. Stiiiiiiiiiilllll........with the silicon shortage, some folks may be building very old designs and need some of these ancient chips. No problem! Adafruit give you 10 pieces off of the reel, so you get one or two cut tape strips. They're a little long-in-the-tooth, and Adafruit don't recommend them for new designs, but they'll work just as you expect.

The FT232B is a USB to serial UART interface with the following advanced features:

Single Chip USB to Asynchronous Serial Data Transfer
Full Handshaking & Modem Interface Signals
UART I/F Supports 7 / 8 Bit Data, 1 / 2 Stop Bits and Odd/Even/Mark/Space/No Parity
Data rate 300 => 3M Baud (TTL)
Data rate 300 => 1M Baud (RS232)
Data rate 300 => 3M Baud (RS422/RS485)
384 Byte Receive Buffer / 128 Byte Transmit Buffer for high data throughput
Adjustable RX buffer timeout
Fully Assisted Hardware or X-On / X-Off Handshaking In-built support for event characters and line break condition
Auto Transmit Buffer control for RS485
Support for USB Suspend / Resume through SLEEP# and RI# pins
4.35V to 5.25V single supply operation
Support for high power USB Bus powered devices through PWREN# pin
Integrated level converter on UART and control signals for interfacing to 5V and 3.3V logic
Integrated 3.3V regulator for USB IO
Integrated Power-On-Reset circuit
Integrated 6MHz – 48Mhz clock multiplier PLL
UHCI / OHCI / EHCI host controller compatible USB 1.1 and USB 2.0 compatible
USB VID, PID, Serial Number and Product Description strings in external EEPROM
EEPROM programmable on-board via USB
Available as a compact lead free RoHS compliant 32-LD LQFP package (FT232BL) or 32-LD QFN package (FT232BQ).

Technical Details

Single chip dimensions: 8.9mm x 8.9mm x 1.5mm

Datasheet
