FTC Starter Kit (2024-2025 Season)

SKU: GB-3200-4008-2425 Brand: goBilda
The FTC Starter Kit is comprised of a massive amount of individual pieces with a retail value of over $1,445! But FTC Team budgets are...
$1,314.95 AUD, inc GST
$1,195.41 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

  • 3-5 $1159.55 (exc GST)
  • 5+ $1135.64 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The FTC Starter Kit is comprised of a massive amount of individual pieces with a retail value of over $1,445! But FTC Team budgets are real, and we at goBILDA® remember all too well when ideas came quicker than the funds to carry them out. For that reason, we've discounted the kit to $599.99 for FTC teams. Click here to apply for your discount today!

Why buy this FTC Starter Kit?

  • Ball-Bearing-Based
    Because goBILDA® is ball-bearing-based, your robot will have less friction and more efficiency.

  • More Parts, Less Money
    No need to sacrifice quality for quantity. Our steep team discount gets you in the game.

  • Better Gear Motors
    Our Yellow Jacket Planetary Gear Motors produce tremendous torque.

  • Build it Your Way
    Multiply your possibilities with a variety of channel—from classic U-Channel to Mini Low-Side.

  • Mighty REX™ Shafting
    The steel shafts rock our tried-and-true REX™ profile to faciltate incredible positive drive.

Getting your season started has never been easier! Using only the parts in this kit (plus a REV Hub), you can build a fully functioning robot designed to participate in this year's FIRST FTC challenge INTO THE DEEP?!

Check out the FTC Starter Bot Resource Guide to learn how!

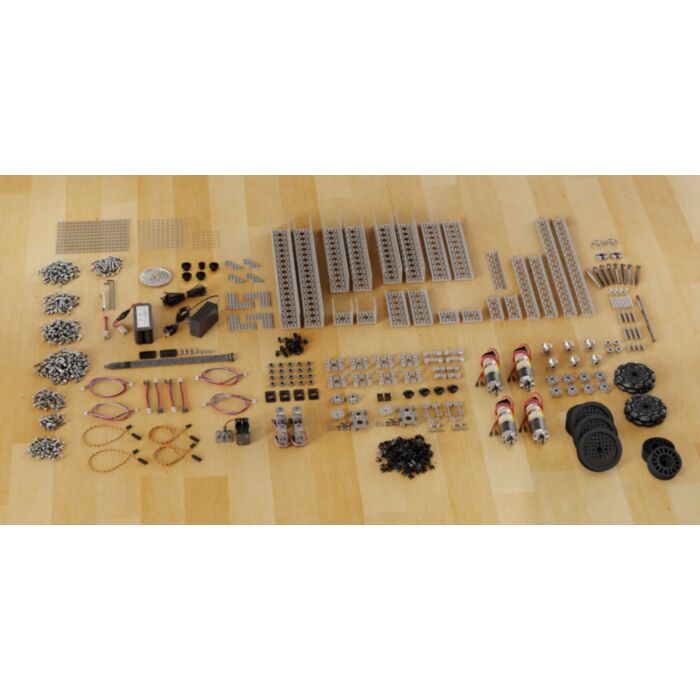

This Kit Includes:

Motors:

Qty: 35203 Series Yellow Jacket Planetary Gear Motor (19.2:1 Ratio, 312 RPM, 3.3 - 5V Encoder)

SKU: 5203-2402-0019 x 3

Qty: 15203 Series Yellow Jacket Planetary Gear Motor (50.9:1 Ratio, 117 RPM, 3.3 - 5V Encoder)

SKU: 5203-2402-0051 x 1

Motor Wiring:

Qty: 42-Pos JST VH [MH-FC] to 3.5mm Bullet [MH-FC] Adaptor (100mm Length)SKU: 3801-0613-0100 x 4
Qty: 4Encoder Cable, 600mm Length (4-Pos JST PH [MH-FC] to 4-Pos JST XH [MH-FC])SKU: 3801-0709-0600 x 4

Servos:

Qty: 22000 Series Dual Mode Servo (25-2, Torque)SKU: 2000-0025-0002 x 2
Qty: 22000 Series Dual Mode Servo (25-3, Speed)SKU: 2000-0025-0003 x 2
Qty: 1Servo Programmer for 2000 Series Dual Mode ServoSKU: 3102-0001-0001 x 1

Servo Mounts:

Qty: 2Compact ServoBlock™ (Standard Size, H25T Spline, Hub Shaft)SKU: 3217-0001-2501 x 2
Qty: 21802 Series Servo Frame (43mm Width, for Standard Size Servos)SKU: 1802-0043-0001 x 2
Qty: 21908 Series Servo Hub (25 Tooth Spline, 32mm Diameter)SKU: 1908-0025-0032 x 2

Servo Wiring:

Qty: 23-Pos TJC8 Servo Extension (MH-FC to FH-MC, 300mm Length)SKU: 3802-1718-0300 x 2
Qty: 23-Pos TJC8 Servo Extension (MH-FC to FH-MC, 600mm Length)SKU: 3802-1718-0600 x 2

Battery and Accessories:

Qty: 1Matrix 12V 3000mAh NiMH Battery (Includes XT30 to Tamiya Adaptor )SKU: 14-0014 x 1
Qty: 1Battery Charger (NiCad/NiMH, 12-1)SKU: 3101-0012-0001 x 1
Qty: 1Battery Mount (32-1)SKU: 1209-0032-0001 x 1
Qty: 100Zip Tie (100mm Length, Black) - 100 PackSKU: 2909-0101-0100 x 1

Channel:

Qty: 21120 Series U-Channel (1 Hole, 48mm Length)SKU: 1120-0001-0048 x 2
Qty: 21120 Series U-Channel (10 Hole, 264mm Length)SKU: 1120-0010-0264 x 2
Qty: 21120 Series U-Channel (11 Hole, 288mm Length)SKU: 1120-0011-0288 x 2
Qty: 21120 Series U-Channel (17 Hole, 432mm Length)SKU: 1120-0017-0432 x 2
Qty: 21121 Series Low-Side U-Channel (1 Hole, 48mm Length)SKU: 1121-0001-0048 x 2
Qty: 21121 Series Low-Side U-Channel (5 Hole, 144mm Length)SKU: 1121-0005-0144 x 2
Qty: 21121 Series Low-Side U-Channel (10 Hole, 264mm Length)SKU: 1121-0010-0264 x 2
Qty: 21143 Series Mini Low-Side U-Channel (3 Hole, 96mm Length)SKU: 1143-0003-0096 x 2
Qty: 11143 Series Mini Low-Side U-Channel (6 Hole, 168mm Length)SKU: 1143-0006-0168 X 1
Qty: 21143 Series Mini Low-Side U-Channel (10 Hole, 264mm Length)SKU: 1143-0010-0264 x 2
Qty: 21143 Series Mini Low-Side U-Channel (17 Hole, 432mm Length)SKU: 1143-0017-0432 x 2

Brackets and Mounts:

Qty: 41205 Series Dual Block Mount (1-5) - 2 PackSKU: 1205-0001-0005 x 2
Qty: 41205 Series Dual Block Mount (2-1) - 2 PackSKU: 1205-0002-0001 x 2
Qty: 41137 Series Steel Flat Grid Bracket (1-2) - 2 PackSKU: 1137-0001-0002 x 2
Qty: 81201 Series Quad Block Pattern Mount (43-2)SKU: 1201-0043-0002 x 8
Qty: 4Steel Gusset-Plate (3 x 3 Hole) - 4 PackSKU: 1126-0090-0001 x 1
Qty: 252902 Plastic Hinge Block (25 Pack)SKU: 2902-0025-0001 x 1

Standoffs and Spacers:

Qty: 81501 Series M4 x 0.7mm Standoff (6mm OD, 43mm Length) - 4 PackSKU: 1501-0006-0430 x 2
Qty: 21505 Series 32mm OD Counterbored Pattern Spacer (8mm Length)SKU: 1505-0032-0080 x 2
Qty: 41516 Series 8mm REX Standoff (24mm Length) - 4 PackSKU: 1516-4008-0240 x 1
Qty: 41516 Series 8mm REX Standoff (43mm Length) - 4 PackSKU: 1516-4008-0430 x 1
Qty: 41516 Series 8mm REX Standoff (48mm Length) - 4 PackSKU: 1516-4008-0480 x 1
Qty: 41522 Series 8mm ID Spacer (10mm OD, 12mm Length) - 4 PackSKU: 1522-0010-0120 x 1

Gears:

Qty: 12302 Series Aluminum, MOD 0.8, Hub Mount Gear (14mm Bore, 100 Tooth)SKU: 2302-0014-0100 x 1
Qty: 1
2303 Series Steel, MOD 0.8 Pinion Gear (8mm REX Bore, 20 Tooth)SKU: 2303-4008-0020 x 1
Qty: 42303 Series Steel, MOD 0.8 Pinion Gear (8mm REX Bore, 30 Tooth)SKU: 2303-4008-0030 x 4

Sprockets and Chain:

Qty: 1503309 Series 8mm Pitch Plastic Chain Link (50 Links)SKU: 3309-0108-0050 x 3
Qty: 43307 Series 8mm Pitch Steel Set-Screw Sprocket (8mm REX Bore, 10 Tooth)SKU: 3307-4008-0010 x 4
Qty: 4Acetal Timing Belt Idler (6mm ID x 12mm OD, 12mm Width, 1-1) - 2 PackSKU: 3413-0001-0001 x 2

Wheels:

Qty: 43601 Series Rhino Wheel (14mm Bore, 96mm Diameter)SKU: 3601-0014-0096 x 4
Qty: 296mm Omni Wheel (14mm Bore, 50A Durometer)SKU: 3624-0014-0096 x 2
Qty: 23613 Series Gecko™ Wheel (14mm Bore, 72mm Diameter)SKU: 3613-0014-0072 x 2

Bearings:

Qty: 201611 Series Flanged Ball Bearing (8mm REX™ ID x 14mm OD, 5mm Thickness) - 2 PackSKU: 1611-0514-4008 x 10
Qty: 41616 Series Drop-Center Bearing Plate (2mm Drop) - 4 PackSKU: 1616-0016-0002 x 1

Shafting:

Qty: 82106 Series Stainless Steel REX Shaft (8mm Diameter, 80mm Length)SKU: 2106-4008-0800 x 8
Qty: 12106 Series Stainless Steel REX Shaft (8mm Diameter, 192mm Length)SKU: 2106-4008-1920 x 1

Hubs, Couplers and Collars:

Qty: 81309 Series Sonic Hub (8mm REX Bore)SKU: 1309-0016-4008 x 8
Qty: 61310 Series Hyper Hub (8mm REX Bore)SKU: 1310-0016-4008 x 6
Qty: 42920 Series Steel Set-Screw Collar (8mm REX Bore) - 2 PackSKU: 2920-0001-4008 x 2

Screws:

Qty: 502800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 6mm Length)SKU: 2800-0004-0006 x 2
Qty: 2002800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 8mm Length)SKU: 2800-0004-0008 x 8
Qty: 1002800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 10mm Length)SKU: 2800-0004-0010 x 4
Qty: 1002800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 12mm Length)SKU: 2800-0004-0012 x 4
Qty: 252800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 14mm Length)SKU: 2800-0004-0014 x 1
Qty: 502800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 18mm Length)SKU: 2800-0004-0018 x 2
Qty: 252800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 20mm Length)SKU: 2800-0004-0020 x 1
Qty: 252800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 30mm Length)SKU: 2800-0004-0030 x 1

Nuts, Washers and Shims:

Qty: 2002812 Series Zinc-Plated Steel Nylon-Insert Locknut (M4 x 0.7mm, 7mm Hex)SKU: 2812-0004-0007 x 8
Qty: 1002801 Series Zinc-Plated Steel Washer (4mm ID x 8mm OD)SKU: 2801-0004-0008 x 4
Qty: 362807 Series Stainless Steel Shim (8mm ID x 11mm OD, 0.50mm Thickness) - 12 PackSKU: 2807-0811-0500 x 3

Tools:

Qty: 1Wera Tools 2.5mm Ball-End Hex-Plus L-KeySKU: 5027103001 x 1
Qty: 1Wera Tools 3mm Ball-End Hex-Plus L-KeySKU: 5027104001 x 1
Qty: 17mm Combination Nut DriverSKU: 4206-0070-0001 x 1
