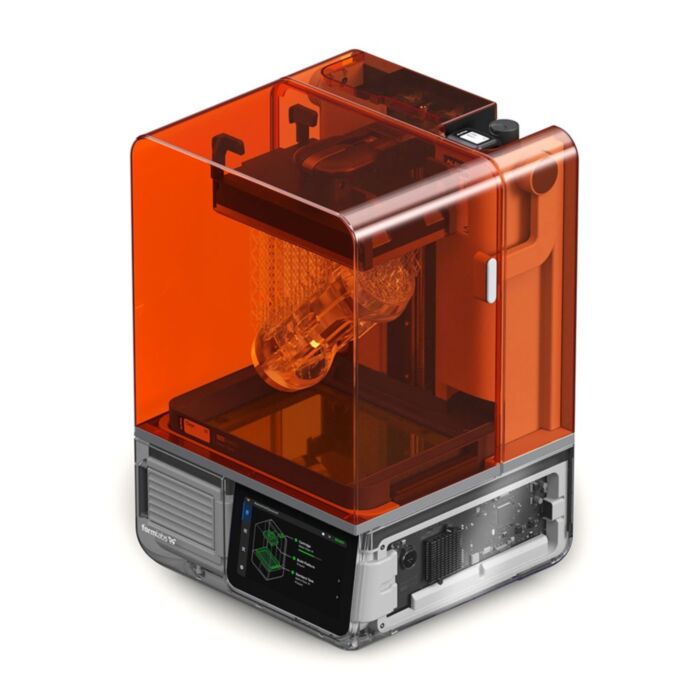

Formlabs Form Studio 1 - Basic Package
Uncompromising budget-conscious resin 3D printing, with all of the bells and whistles everyone expects from an engineering-grade machine.
Available with a lead time
Expect dispatch between Oct 22 and Oct 29
Restrictions apply to this equipment as it uses button/coin cell batteries:
- The equipment is intended to be used in trades, professions or industries
- The equipment is not intended for sale to the general public
- The equipment is not intended to be used where children are present
- You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
- You are aware that these restrictions are due to a change in Australian legislation in 2022 for button/coin cell batteries
A declaration of use will need to be submitted during checkout.
All of the capability of a professional engineering-grade 3D stereolithography printer at a budget-conscious price. Perfect for Makers who want to print strong, accurate and highly detailed parts without waiting for parts to finish, messy machines and failed prints.
The Form Studio 1 can print much faster than other SLA 3D printers, with most parts completing in less than 2 hours* with fine detail, and made from premium-grade materials. Resins have been specifically formulated with home and office use in mind; when combined with the new Alpha resin family and the Formlabs VOC Extractor, the system claims the title for the first 3D SLA system on the market with UL GREENGUARD Gold certification, independently tested for low chemical emissions.
These new Alpha resin formulations (along with all other Formlabs resins) mean reliable print success and consistent material properties. But that doesn't mean you can't BYO resin with the Form Studio 1. Out of the box, each unit has "Open Material Mode" enabled, meaning any resin can be used.
Automatic Resin Handling: hands-free, fast, and accurate, with minimal waste and easy, glove-free material swapping.
Intelligent Control Systems: Five integrated systems that precisely control the temperature, resin level, print forces, and print status inside your printer.
Flexible Film Resin Tanks: Two resin tanks are available, designed to reduce the forces exerted on parts during printing, each built for different priorities:
Form Studio 1 Resin Tank: Optimised for speed and fine feature resolution. Compatible with all Alpha Resins, True Cast Resin, and Flexible 80A Resin V2. (Included)
Form Studio 1 Resin Tank Pro: Optimised for compatibility with a wide range of different resins. Compatible with Tough 1500 Resin V2, and required for any material used in Open Material Mode. (Purchased Separately)
Release Texture V2: An updated proprietary microtextured optical film surrounded by perimeter channels that increase airflow and passively reduce the forces exerted on parts during printing.
Light Processing Unit Studio 1 (LPU S1): Precisely masks light from the backlight unit into the shape of a printed layer.
Backlight Unit: Generates a uniform area projection of an ultra-high-power light using 28 LEDs with a plano-convex lens array.
Specifications
Build Volume: 200 x 125 x 235mm
Layer Thickness: 25-250 µm (Layer thickness varies by material)
XY Resolution: 35 microns
Technology: Masked Stereolithography (mSLA)
Print Engine: Low Force Display (LFD)
Light Source: Backlight Unit with 28 uniform wavelength LEDs
Optical Power Intensity: 6 mW/cm² delivered to the print plane
Wavelength: 405 nm
Package Includes
Form Studio 1 SLA Resin Printer (Graphite Colourway)
Accessories Box
Form Studio 1 Build Plate
Form Studio 1 Resin Tank
Open Material Mode
