HS-01 Intelligent Soldering Iron (Plus bundle)

SKU: CE10551 Brand: FNIRSI

Perform precision repairs anywhere. This bundle features dual USB-C/DC power inputs for rapid heating and includes six interchangeable tips for versatile soldering.

$71.90 AUD, inc GST

$65.36 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 7th of Apr

A performance, smart portable soldering iron that combines the best aspects of bulky benchtop stations and compact field tools. It features a dual-power interface capable of accepting both standard USB-C PD (Power Delivery, up to 65W) and DC barrel-jack inputs, driving up to 96W of thermal power.

This "Plus" bundle edition equips you with a comprehensive suite of six different soldering tips, ensuring you have the correct shape tip for everything from microscopic SMD rework to joining power wires.

For makers and technicians, the frustration of portable soldering often stems from slow heat-up times and a lack of thermal mass. The HS-01 solves this using an internal heating cartridge design with PID temperature control, allowing it to reach melting temperatures in as little as 6 seconds. Whether you are repairing drones in the field using power from a battery or working at a desk with a power supply, this iron maintains consistent heat, preventing cold joints even on substantial ground planes.

Constructed with a CNC-machined aluminium alloy body, the HS-01 offers a premium, robust feel that stands up to toolbox travel. It features a crisp 0.87-inch OLED display for real-time temperature monitoring and menu navigation. Notably, this unit comes with a protective metal cap that allows you to safely pack the iron away immediately after use without waiting for it to cool down completely, making it an essential tool for rapid deployment and pack-up.

Features

Flexible Power Inputs: Power your workflow anywhere with dual-protocol support. Use a 65W USB-PD charger for convenience, or utilise the included DC-to-USB-C cable with a 24V source to unlock the full 96W potential.
Rapid Thermal Recovery: Minimise downtime with a 6-second heat-up time (at max voltage) and PID algorithms that keep tip temperature stable during heavy thermal loads.
Complete Tip Ecosystem: Tackle any soldering challenge immediately with the six included tips: KR, K65, B2, ILS, BC3, and BC2. This variety covers shapes to allow drag soldering, precision bodge wires, and general through-hole/SMT work.
Field-Ready Safety: Pack up instantly after a job thanks to the heat-resistant metal cap, which covers the hot tip and secures the device for transport.
Smart User Interface: Customise your experience via the 0.87-inch OLED screen, which offers sleep mode, child locks, left/right-hand orientation switching, and temperature adjustment from 80°C to 420°C.
Ergonomic Build: Enjoy comfortable handling during long sessions with a lightweight, anodised aluminium body and comfortable grip designed to reduce hand fatigue compared to plastic irons.

Specifications

Property	Specification
Operating Voltage	9-24V (DC) / 9-20V (PD)
Max Power	96W (DC Mode) / 65W (PD Mode)
Temperature Range	80°C - 420°C
Heat-up Time	Approx. 6 seconds (at 24V)
Power Interface	USB Type-C
Display	0.87-inch OLED
included Tips	HS01-BC2, HS01-KR, HS01-K65, HS01-B2, HS01-ILS, HS01-BC3
Body Material	CNC Aluminium Alloy
Dimensions	184mm x 20mm
Note	Power supply not included (Requires USB-PD charger or DC source)

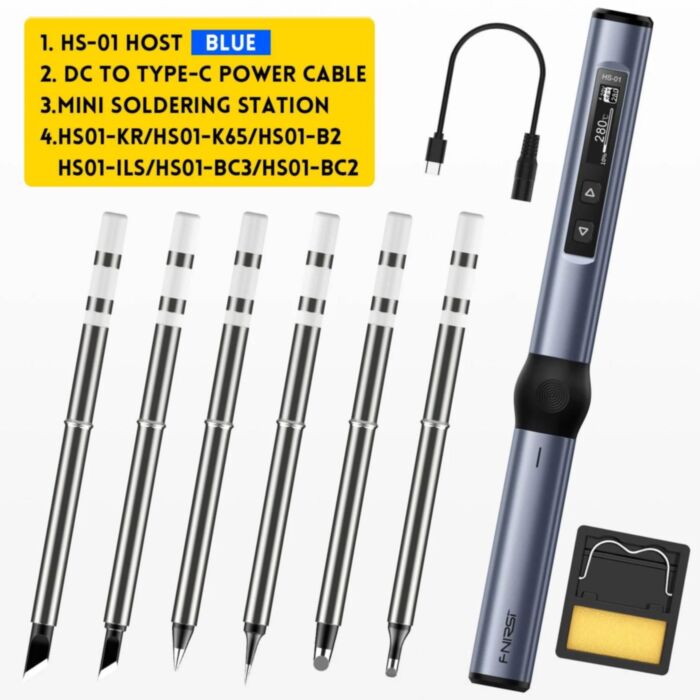

Product Includes

HS-01 BU Soldering Iron (Blue)
DC To Type-C Power Cable
Mini Soldering Stand
HS01-KR/HS01-K65/HS01-B2/HS01-ILS/HS01-BC3/HS01-BC2 (Total 6 tips)
