FNIRSI FDM-02 Digital Sound Level Meter (30-130dB, A/C Weighting)
Put a real number on noise, from home theatre tuning to workshop tool levels, with live readings, a trend curve and high/low alarms.
In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow*
Disclaimer:
For next-day delivery, the shipping address must
be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed
before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost
pickup timings and order verifications. eParcel Express is typically a 1-day service within the
AusPost next-day network, though it is sometimes 2+ days.
A pocket-sized decibel meter that turns "that sounds loud" into a measured number, reading sound pressure levels from 30 to 130dB on a crisp 2-inch colour IPS screen.
Our ears are poor judges of loudness, and they adapt quickly to sustained noise. Switch to A-weighting to measure the way human hearing perceives sound, ideal for checking workshop tools, appliances, traffic or a neighbour's party. Switch to C-weighting to capture the low-frequency energy A-weighting rolls off, handy when setting up subwoofers, balancing speakers or assessing machinery rumble.
Fast (125ms) and Slow (1s) response modes let you track sharp, impulsive sounds or average out a fluctuating source, while the real-time curve shows the last 30 seconds of sound so you can see exactly when levels spike. Set high and low thresholds and the meter logs the 30 most recent alarm events for later review.
It runs from a built-in 1500mAh rechargeable battery topped up over USB-C, so there are no coin cells to hunt down. For legal or workplace compliance testing, use a certified, calibrated sound level meter; this one is built for fast, practical everyday measurement.
Features
- Measure everything from a quiet room to a loud concert with a 30–130dB range and 0.1dB resolution
- Choose how the meter hears with A-weighting (human hearing) or C-weighting (low-frequency and peak content)
- Catch quick bangs or steady drones by switching between Fast (125ms) and Slow (1s) response
- See trends, not just numbers: the real-time curve plots the last 30 seconds of sound level
- Never miss a noise event, with adjustable high/low thresholds (0–130dB), LED alarm and a record of the 30 most recent alarms
- Read it clearly anywhere on the 2-inch colour IPS display, with light/dark themes and 5–100% brightness
- Skip disposable batteries thanks to the built-in 1500mAh rechargeable cell with USB-C charging
- Save charge automatically with auto power-off adjustable from 1 to 60 minutes
- Take it anywhere: a compact handheld body with a storage bag included
Specifications
| Property | Specification |
|---|---|
| Model | FNIRSI FDM-02 |
| Measurement Range | 30–130dB |
| Accuracy | ±1.5dB (94dB @ 1kHz reference) |
| Resolution | 0.1dB |
| Frequency Weighting | A / C |
| Time Weighting | Fast (125ms) / Slow (1s) |
| Microphone | Condenser |
| Display | 2.0" colour IPS, light/dark themes |
| Brightness | Adjustable, 5–100% |
| Trend Curve | 30 seconds of real-time data |
| Alarm | High/low thresholds (0–130dB), LED indication, 30-event record |
| Battery | Built-in 1500mAh 3.7V lithium polymer, rechargeable |
| Charging | USB-C |
| Auto Power-Off | Adjustable, 1–60 minutes |
| Dimensions | 183 x 63 x 28mm |

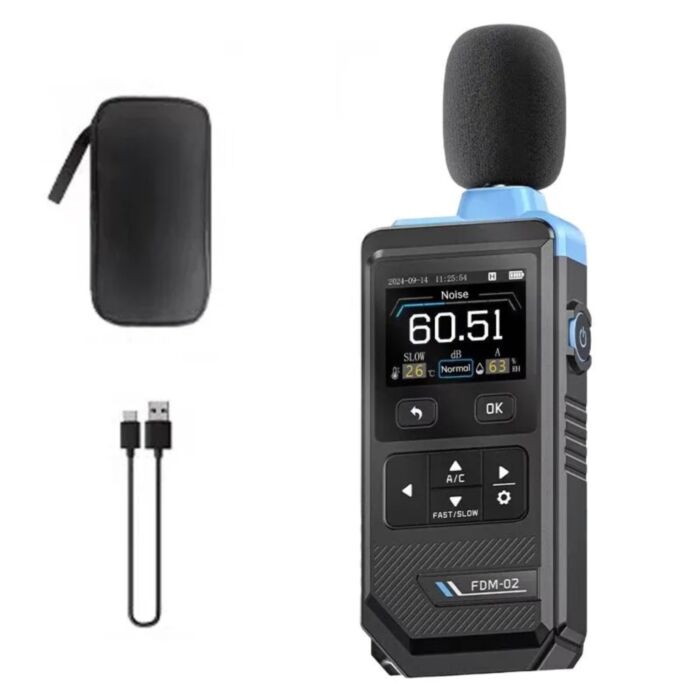

What's Included
- 1x FNIRSI FDM-02 Digital Sound Level Meter
- 1x USB-C charging cable
- 1x Storage bag
