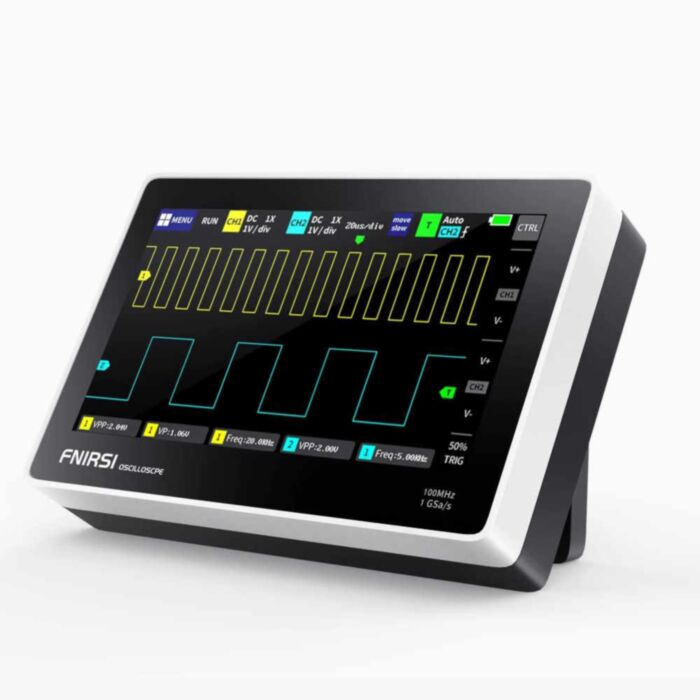

1013D 100MHz Portable Tablet Oscilloscope

SKU: CE10447 Brand: FNIRSI

Diagnose circuits away from the bench. This portable dual-channel oscilloscope features a 100MHz bandwidth, a responsive 7-inch capacitive touch display, and a 6000mAh battery for extended field testing.

$229.95 AUD, inc GST

$209.05 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

A specialised dual-channel digital oscilloscope designed to bring the capabilities of a benchtop instrument into a portable, tablet-style form factor. Featuring a generous 7-inch display and a 1GSa/s sampling rate, it provides educators, hobbyists, and technicians with a versatile tool for analysing analogue signals up to 100MHz bandwidth without being tethered to a bench.

Traditional oscilloscopes are often bulky and difficult to transport, while pocket-sized alternatives frequently suffer from cramped displays and frustrating button-heavy interfaces. The 1013D solves this by integrating a high-resolution capacitive touch screen and a 6000mAh battery, allowing you to intuitively zoom, scroll, and capture waveforms anywhere - from automotive workshops to remote field installations.

Features

Intuitive Gesture Control: Navigate complex signals easily using the 7-inch capacitive touch display (800x480), which supports pinch-to-zoom and drag gestures, unlike some clunky button-based interfaces.
Extended Field Autonomy: troubleshoot confidently away from power outlets with the built-in 6000mAh lithium battery, delivering up to 4 hours of continuous runtime.
One-Touch Documentation: Save critical data instantly with 1GB of internal storage, capable of holding up to 1000 screenshots and 1000 waveform sets for later analysis via USB export.
Instant Auto-Setup: Capture unknown signals quickly with the auto-set function, which adapts triggers and scales to display a stable waveform without manual tuning.

Specifications

Property	Specification
Analogue Bandwidth	100MHz (Dual Channel)
Real-Time Sampling Rate	1GSa/s
Display	7-inch TFT LCD, 800 x 480 pixels, Capacitive Touch
Vertical Sensitivity	50mV/div ~ 500V/div
Time Base Range	50s/div ~ 10ns/div
Maximum Input Voltage	40V (1X mode), 400V (10X mode)
Storage Depth	240kbit
Internal Storage	1GB (approx. 1000 images + 1000 waveforms)
Battery Capacity	6000mAh Lithium-ion (approx. 4 hours standby)
Charging Interface	USB Type-C (5V/2A)
Dimensions	184mm x 124mm x 50mm
