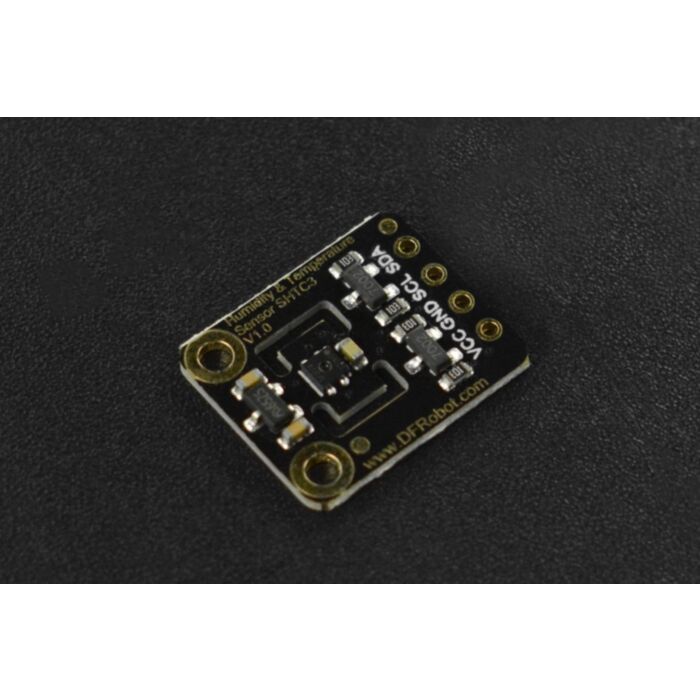

Fermion: SHTC3 Humidity & Temperature Sensor

SKU: SEN0414 Brand: DFRobot

The SHTC3 digital humidity sensor from Sensirion builds on the success of the proven SHTC1 sensor and offers consistent high accuracy within the measuring...

$9.65 AUD, inc GST

$8.77 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

6+ $8.34 (exc GST)
12+ $7.98 (exc GST)

The SHTC3 digital humidity sensor from Sensirion builds on the success of the proven SHTC1 sensor and offers consistent high accuracy within the measuring range.

The sensor covers a humidity measurement range of 0 to 100%RH and a temperature detection range of -40°C to 125°C with a typical accuracy of ±2%RH and ±0.2°C.

The board supply voltage of 3.3V to 5V and a current consumption below 0.15mA in low power mode make the SHTC3 perfectly suitable for mobile or wireless battery-driven applications.

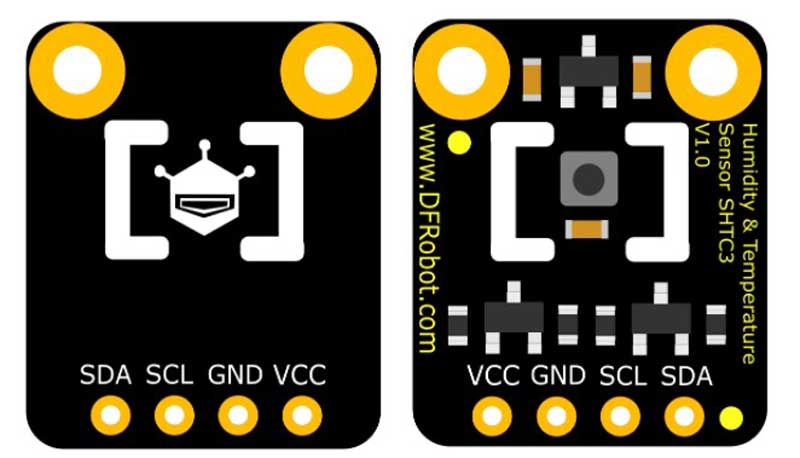

Board Overview

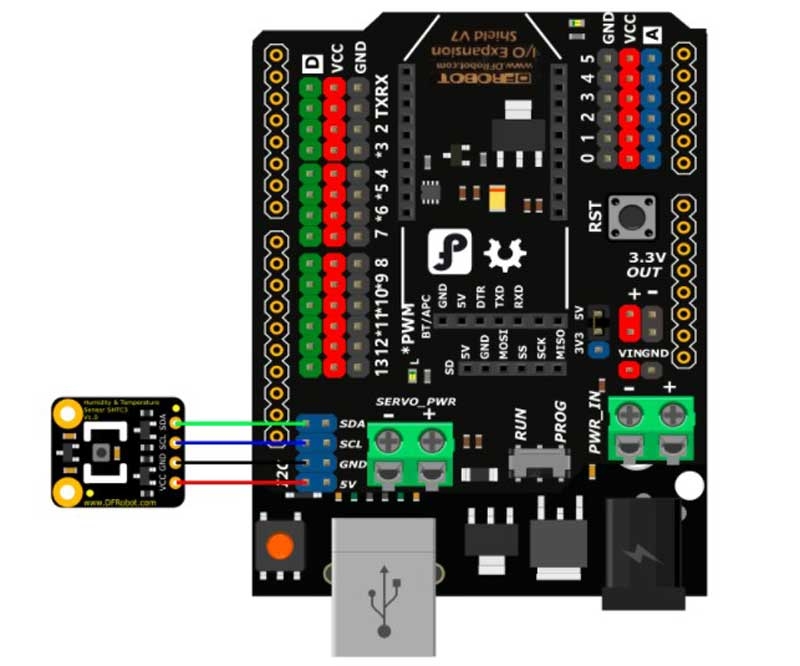

Connection Diagram

Features

High accuracy
With low power mode

Applications

HVAC
Automobiles
Data loggers
Weather stations
Home appliances

Specification

Communication Interface: I2C
Operating Voltage: 3.3V~5V
Operating Current: 0.45mA
Humidity Measurement Range: 0~100%RH
Humidity Measurement Accuracy: ±2%
Temperature Measurement Range: -40 ~ +125°C (-40 ~ +275°C)
Temperature Measurement Range: ±0.2°C
Response Time: 8s(tau63%)
Dimension: 14*17mm/0.55*0.67”
Mounting Hole Size: M2 (2mm)
Mounting Hole Pitch: 10mm

Documents

Parts List

Fermion: SHTC3 Humidity & Temperature Sensor x1
2.54 Black Single-row 4Pin Connector x1
