Fermion: BMM150 Triple Axis Magnetometer Sensor (Breakout)

Skip to the beginning of the images gallery

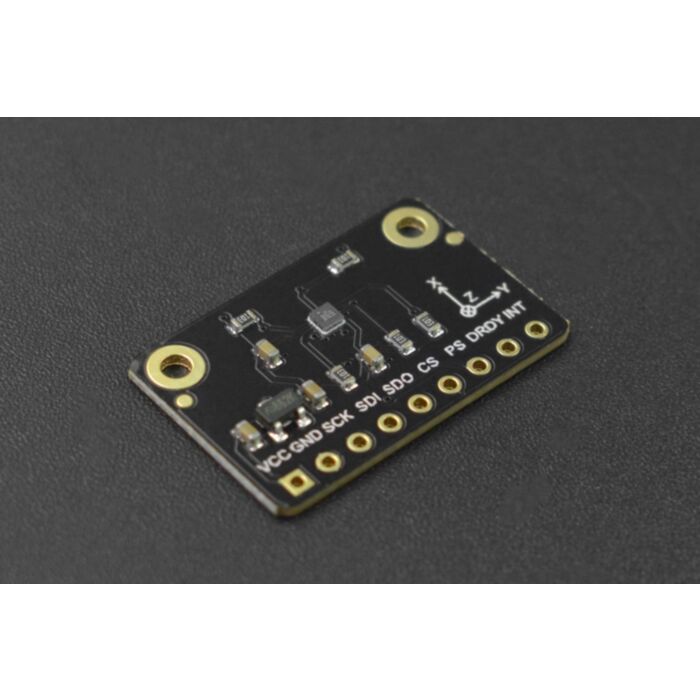

Fermion: BMM150 Triple Axis Magnetometer Sensor (Breakout)

SKU: SEN0419 Brand: DFRobot

The BMM150 is a low-power and low noise 3-axis digital geomagnetic sensor that perfectly matches the requirements of compass applications...

$11.95 AUD, inc GST

$10.86 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

10+ $10.43 (exc GST)
25+ $10.10 (exc GST)

The BMM150 is a low-power and low noise 3-axis digital geomagnetic sensor that perfectly matches the requirements of compass applications. Based on Bosch’s proprietary FlipCore technology, the BMM150 provides absolute spatial orientation and motion vectors with high accuracy and dynamics. Featuring small size and lightweight, it is also especially suited for supporting drones in accurate heading.The BMM150 can also be used together with an inertial measurement unit consisting of a 3-axis accelerometer and a 3-axis gyroscope.

Board Overview:

Fermion: BMM150 Triple Axis Magnetometer Sensor (Breakout)

Connect the module with Raspberry Pi as shown below. Default address: 0x13

Fermion: BMM150 Triple Axis Magnetometer Sensor (Breakout)

Connect the sensor with M0 (or other mainboards) as the diagram is shown below.

Fermion: BMM150 Triple Axis Magnetometer Sensor (Breakout)

Features

Measurement of the magnetic field

Ultra-small package

High accuracy

Specification

Power Supply: 3.3V

Temperature Range: -40~85°C

Digital Interface: I2C/SPI

Programmable Interrupt

Resolution: 0.3µT

Zero-B Offset: ±40µT/±2µT(Software optimized)

Non-linearity: <1%FS

Magnetic Range: ±1300µT (x,y-axis)

±2500µT (z-axis)

Average Current Consumption: 170µA (low power preset)

500µA (normal mode)

Low Noise: 0.3-1.4µT

Magnetometer Heading Accuracy: 30µT, horizontal geomagnetic field component, ±2.5°

Start-up Time: 3ms

Documents

Product wiki

Parts List

Fermion: BMM150 Triple Axis Magnetometer Sensor (Breakout) x1

2.54 Black Single-row Connector 9Pin x1
