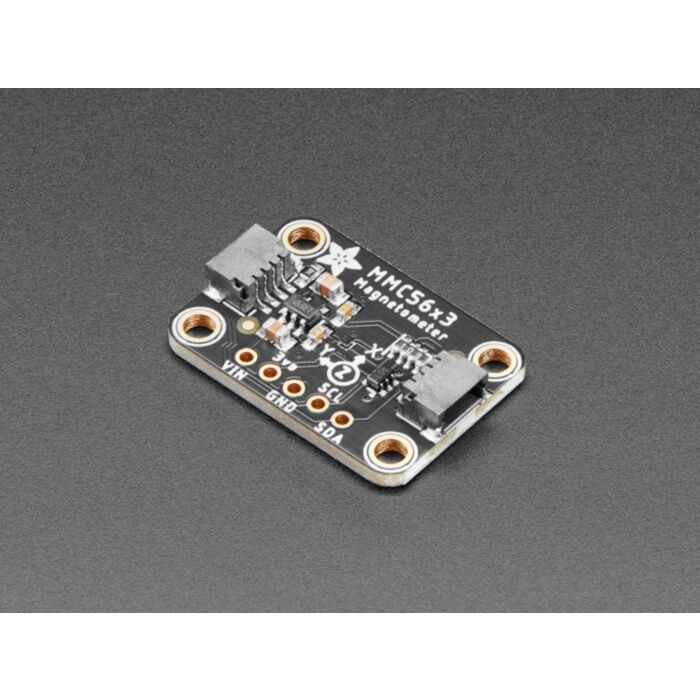

Adafruit Triple-axis Magnetometer - MMC5603 - STEMMA QT / Qwiic

SKU: ADA5579 Brand: Adafruit
Sense the magnetic fields surrounding us with this handy triple-axis magnetometer (compass) module. Magnetometers can sense where the strongest magnetic...
$11.90 AUD, inc GST
$10.82 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

  • 10-25 $10.38 (exc GST)
  • 25+ $10.06 (exc GST)
- +

3 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Sense the magnetic fields surrounding Adafruit with this handy triple-axis magnetometer (compass) module. Magnetometers can sense where the strongest magnetic force is coming from, generally used to detect magnetic north, but can also be used for measuring magnetic fields. This sensor tends to be paired with a 6-DoF (degree of freedom) accelerometer/gyroscope to create a 9-DoF inertial measurement unit that can detect its orientation in real-space thanks to Earth's stable magnetic field. It's a great match for the LSM6DSOX from ST!

Adafruit based this breakout on the MMC5603, a great general purpose magnetometer with a very wide range and bot I2C and SPI interfaces. This compact sensor uses I2C to communicate and it's very easy to use. Simply download Adafruit's library and connect the SCL pin to your I2C clock pin, and SDA pin to your I2C data pin and upload Adafruit's test program to read out magnetic field data. If you'd like, you can also use SPI to receive data (we just happen to prefer I2C here)

This sensor can sense ranges from ±30 Gauss (±3000uT or ±3mT) with no range-setting required and full 20 bit output up to 1000 Hz rate reading. The range makes it good for reading Earth's magnetic field (which maxes at about 0.6 Gauss) or some basic magnets. It isn't good for very strong rare earth magnets, for that check out the TLV293.

To make life easier so you can focus on your important work, Adafruit have taken the MMC5603 and put it onto a breakout PCB along with support circuitry to let you use this little wonder with 3.3V (Feather/Raspberry Pi) or 5V (Arduino/ Metro328) logic levels. Additionally, since it speaks I2C you can easily connect it up with two wires (plus power and ground!).  Adafruit have even included SparkFun qwiic compatible STEMMA QT connectors for the I2C bus so you don't even need to solder! Just wire up to your favorite micro and you can use Adafruit's CircuitPython/Python or Arduino drivers to easily interface with the LIS2MDL and get magnetic measurements ASAP.

It's fully assembled and tested.  Comes with a bit of 0.1" standard header in case you want to use it with a breadboard or perfboard.  Four 2.5mm (0.1") mounting holes for easy attachment.

Technical Details

  • I2C Address 0x30
  • Monolithic integrated 3-axis AMR magnetic sensor
  • Superior Dynamic Range and Accuracy:±30 G FSR20bits operation mode0.0625mG per LSB resolution2 mG total RMS noiseEnables heading accuracy of 1º
  • Sensor true frequency response up to 1KHz
  • I²C peripheral, fast (= 400 KHz) mode
  • Ultra-Small Wafer Level Package 0.8x0.8x0.4 mm
  • On-chip automatic degaussing with built-in SET/RESET function
  • Eliminates thermal variation induced offset error (Null field output)
  • Clears the residual magnetization resulting from strong external fields
  • On-chip sensitivity compensation
  • On-chip temperature sensor
