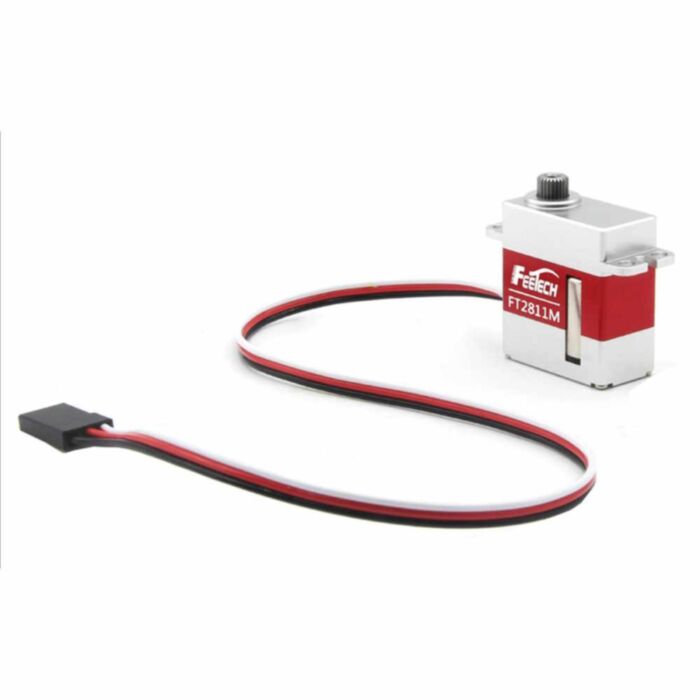

FT2811M Micro Servo (12.2kg/cm)
Fit high-torque control into tight spots. This 12mm micro servo features a robust aluminium case and coreless motor, delivering up to 12.2kg.cm of force at 8.4V.
In stock, ships same business day if ordered before 2PM
Delivered by Tue, 7th of Apr
Quantity Discounts:
- 6+ $40.94 (exc GST)
- 50+ $37.83 (exc GST)
A high-performance digital servo designed specifically for applications where space is at a premium but torque cannot be compromised. Packing an impressive 11kg/cm+ of force into a chassis only 12mm thick.
Other micro servos can feel sluggish or weak under load, while standard servos simply won't fit. The FT2811M solves this by combining a high-voltage coreless motor with a small form factor, delivering the punch of a full-sized servo in a form factor that slips easily into tight assemblies.
Manufactured with a full CNC aluminium case and precision metal gears, this unit is built to withstand the rigours of high-power operation and mechanical stress. The aluminium housing acts as a heatsink to keep the coreless motor cool during intense sessions, ensuring consistent performance whether you are holding a precise line on a glider or navigating technical terrain with a micro-crawler.
Features
- High-Voltage (HV) Capable: Simplify your wiring harness by powering this servo directly from a 2S LiPo battery (8.4V), eliminating the need for an external BEC while unlocking maximum speed and torque.
- Exceptional Torque-to-Weight Ratio: Deliver a massive 12.2kg.cm of stall torque (at 8.4V) from a unit weighing just 21.5g, providing class-leading power density for demanding robotics and RC projects.
- Ultra-Fast Response: Achieve near-instantaneous control with a transit speed of up to 0.054sec/60°, made possible by the high-efficiency coreless motor design.
- Superior Heat Dissipation: Maintain optimal operating temperatures during extended use thanks to the robust CNC aluminium case that actively pulls heat away from the motor.
- Slim "Wing" Profile: Fit into extremely narrow mounting points with the 12mm thickness, a standard specifically developed for high-performance glider wings and increasingly popular in custom micro-robotics.
- Precision Gearing: Experience smooth movement and reduced slop with a full metal gear train, ensuring your control inputs translate accurately to movement.
Specifications
| Property | Specification |
|---|---|
| Model | FT-2811-C001 (FT2811M) |
| Dimensions | 23mm x 12mm x 27.5mm |
| Weight | 21.5g ± 2g |
| Operating Voltage | 4.8V – 8.4V (2S LiPo Native) |
| Stall Torque (8.4V) | 12.2 kg.cm |
| Operating Speed (8.4V) | 0.054 sec/60° (approx 185 RPM) |
| Motor Type | Coreless Motor |
| Gear Material | Metal |
| Case Material | Aluminium |
| Spline | 25T / 4.95mm |
