FeatherS3 Neo

SKU: CE09919 Brand: Unexpected Maker
The Blingy RGB ESP32-S3 Development Board in the Feather format!
$43.10 AUD, inc GST
$39.18 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

  • 10+ $37.61 (exc GST)
  • 25+ $36.44 (exc GST)
- +

6 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

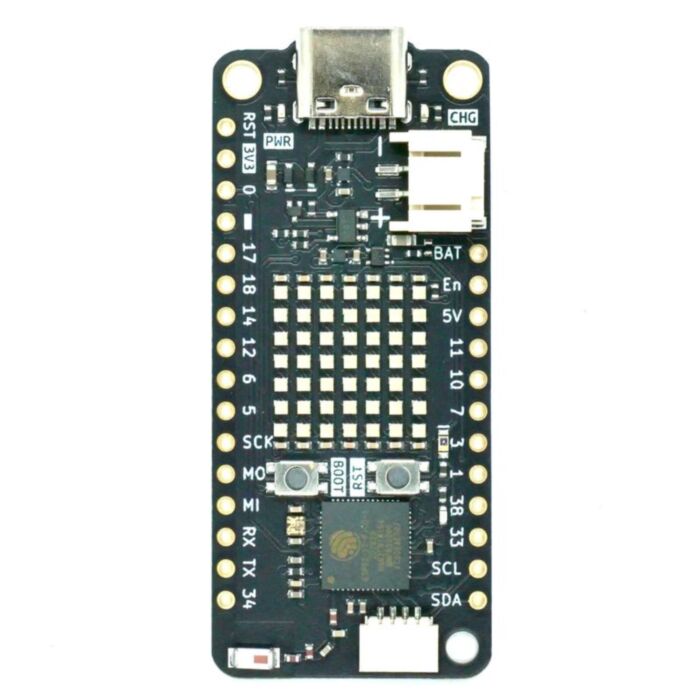

The Blingy RGB ESP32-S3 Development Board in the Feather format!

Features & Specifications

  • 32-bit 240 MHz dual-core processor
  • 8 MB SPI Flash
  • 2 MB extra PSRAM
  • 2.4 GHz Wi-Fi - 802.11b/g/n
  • 3D antenna
  • 2x 700 mA 3.3 V LDO regulators
  • Optimised power path for low-power battery usage
  • LiPo battery management
  • Power (red), Charge (orange) & IO13 (blue) LEDs
  • 7x7 RGB LED matrix + User controllable power
  • 22x GPIO
  • VBAT voltage sense on IO2
  • VBUS detection on IO15
  • USB-C with back feed protection
  • RGB LED (PWR IO39, DATA IO16)
  • QWIIC/STEMMA connector
  • Feather format



Each FeatherS3 Neo ships in an antistatic bag with:

  • Color pinout card
  • Unassembled male headers

Onboard 7x7 RGB Matrix? Really?

Yeah, why not! Getting compelling information out of a single RGB LED can be a real challenge, so with a 7x7 matrix, you can scroll text, show icons or even display cool animating patterns!

The RGB Matrix is powered from its own 3.3V LDO, which automatically shuts down if you put the FeatherS3 Neo into deep sleep. You can also turn off the RGB LED power via code by setting IO39 HIGH for on and LOW for off.

Ships with CircuitPython pre-installed!

FeatherS3 Neo ships with CircuitPython pre-installed, including the UF2 bootloader, so you can easily update your FeatherS3 Neo with the latest CircuitPython firmware, whenever you desire.

As newer versions of CircuitPython are released, you are able to update as you require from ciruitpython.org

There is also a MicroPython port (soon) plus ESP-IDF and Arduino support if you prefer coding in C++.

PLEASE NOTE: Arduino and Platform IO

The FeatherS3 Neo board definition for the Arduino IDE has been PR'd for the next 3.0.x release of the Arduino ESP32 Core, but until that is out you can select UM TINYS3 as the board to develop for.

With regards to PlatformIO, it is uncertain right now if versions of 3.x and later of the Arduino ESP32 Core will be supported, you can use UM TINYS3 as the board setup to develop in PlatformIO using 2.0.x versions.
