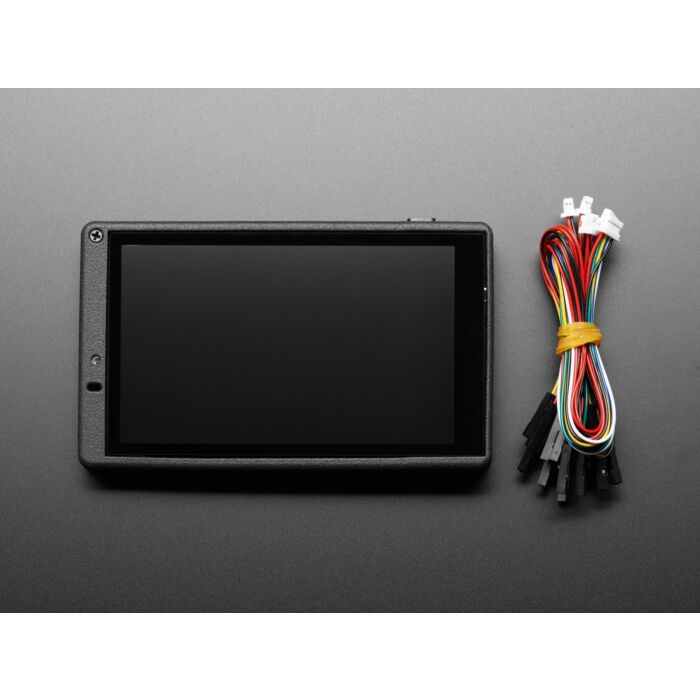

ESP32-S2 Human Machine Interface Dev Kit 1 - ESP32-S2-HMI-DevKit-1

SKU: ADA5207 Brand: Adafruit

Espressif's ESP32-S2 Human Machine Interface Dev Kit 1 (ESP32-S2-HMI-DevKit-1) has been specifically designed for human-machine interfaces in...

$189.95 AUD, inc GST

$172.68 AUD, exc GST

Quantity Discounts:

10+ $167.50 (exc GST)
50+ $164.05 (exc GST)

Out of Stock

Description

Espressif's ESP32-S2 Human Machine Interface Dev Kit 1 (ESP32-S2-HMI-DevKit-1) has been specifically designed for human-machine interfaces in smart-home automation controllers, smart speakers with display, smart alarm clocks, etc.

ESP32-S2-HMI-DevKit-1 is powered by the ESP32-S2-WROVER module, which supports a 4.3" LCD screen. The development board can have an optional 1,950mAh rechargeable lithium battery installed. There's lots of peripheral interfaces such as an extra USB serial programming/UART port, SPI, TWAI, I2C, and an SD card. It supports various sensors and functions such as audio playback and recording. Additionally, this development kit supports rapid secondary development, allowing developers to take advantage of the kit’s various onboard resources and expansion interfaces.

Please note this is an advanced development kit, for use with the 'raw' Espressif ESP IDF. For example, there isn't CircuitPython or Arduino support for the display at this time. Adafruit are stocking this because we think its a great dev board if you want to implement support for this hardware or play with display interfaces and the ESP32-S2

ESP32-S2-HMI-DevKit-1 Specifications:

Wireless microcontoller module: ESP32-S2-WROVER module with ESP32-S2 Xtensa single-core 32-bit LX7 microprocessor, up to 240 MHz with 128 KB ROM, 320 KB SRAM, WiFi 4 connectivity, 4MB flash, 2MB PSRAM
Storage: MicroSD card slot
Display: 4.3" display with 800×480 resolution connected with 16-bit interface plus I2C capacitive touch panel overlay
Display interface: 16-bit, 20 MHz, 8080 parallel communication
Audio: Audio amplifier, built-in microphone, speaker connector
USB: 1x USB-C OTG (DFU/CDC) port, 1x USB-C debug port
Expansion: SPI header, TWAI (2-wire automotive interface)/CAN header, I2C header, UART/Prog header
Sensors: 3-axis accelerometer, 3-axis gyroscope, ambient light sensor, temperature and humidity sensors
Miscellaneous: Programmable RGB LEDs, wakeup and reset buttons, IR transmitter
Power Supply: 5V and 3.3V power headers
Optional Rechargeable Battery: 1,950 mAh Li-ion battery cutout and connector

Please note, Espressif is not shipping this product with a battery installed. An off-the-shelf iPhone 5-compatible battery can be purchased and installed by the end user.

Technical Details

GitHub repo with code examples
