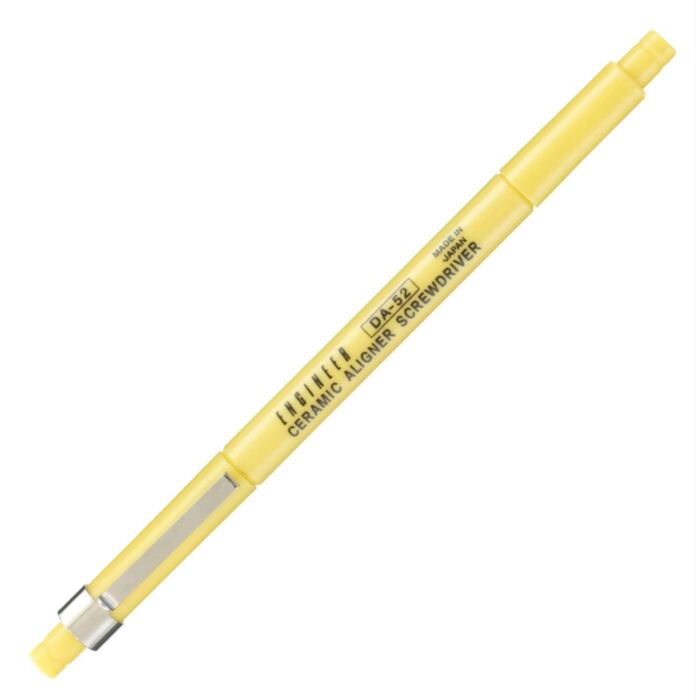

Engineer DA-52 Dual-Tip Ceramic PCB Alignment Tool

SKU: TPH-DA-52 Brand: The Pi Hut

Discover the Engineer DA-52 dual-tip ceramic PCB alignment tool, featuring precision 0.4mm and 0.7mm non-conductive tips for accurate trimming and adjustment of electronic circuit components.

Special Price $25.51 AUD, inc GST

Regular Price $33.90 AUD, inc GST

$23.19 AUD, exc GST

Special pricing ends 21 February 2025

* this special may end earlier than shown

Out of Stock

The Engineer DA-52 dual-tip ceramic PCB alignment tool revolutionises the precision adjustment of electronic circuit components. This professional-grade tool features non-conductive zirconia ceramic tips specifically engineered for accurate trimming and adjustment of variable components on PCB circuits.

Key Features

Dual ceramic tips: 0.4mm x 1.3mm and 0.7mm x 2.5mm for versatile component adjustment
Non-inductive and non-conductive zirconia ceramic construction
Integrated hex shafts (2.0mm and 2.5mm across flats) for variable coil adjustment
4-in-1 design combining alignment and adjustment capabilities
Ergonomic pen-style housing with protective caps and pocket clip
ROHS compliant, Made in Japan

How to Use

The DA-52 excels in precision PCB adjustments through its dual-ended design:

For fine adjustments: Utilise the 0.4mm x 1.3mm tip with its 2.0mm hex shaft for delicate trimming of small components
For standard adjustments: Deploy the 0.7mm x 2.5mm tip with its 2.5mm hex shaft for general variable component tuning

For optimal results when working with surface-mount components, pair with Adafruit Ceramic Tip Tweezers for stable component handling. Secure your PCB using a SparkFun Stickvise PCB Vise to maintain steady positioning during adjustments.

What's in the Box

1x Engineer DA-52 Ceramic Alignment Screwdriver with protective caps

Compatibility

The DA-52 is optimised for adjusting:

Variable trimmer potentiometers
IF transformers
Variable capacitors
High-frequency tuning components
Surface-mount device alignment

About Engineer

Since 1948, Engineer has established itself as a premier Japanese manufacturer of precision tools. Their commitment to quality and innovation has made them a trusted name in professional electronics manufacturing and assembly. Each tool undergoes rigorous quality control to ensure it meets the exacting standards required for precision electronic work.

This product is listed in:

Tools>Other
Tools>Tool Kits
