Dual 5A PWM Switch

SKU: GB-3108-0102-0201 Brand: goBilda

The PWM Controlled Switch is a plug-n-play solution for turning DC circuits on and off from afar! Use a.....

$43.85 AUD, inc GST

$39.86 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 20 and Nov 25

Quantity Discounts:

10-25 $37.87 (exc GST)
25+ $35.88 (exc GST)

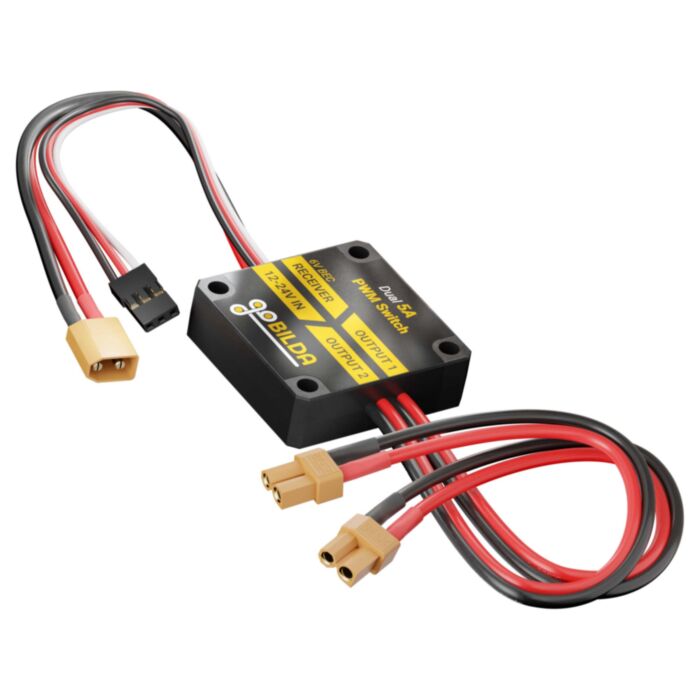

The PWM Controlled Switch is a plug-n-play solution for turning DC circuits on and off from afar! Use a wireless transmitter and receiver, or your servo controller of choice, to direct the circuits with a PWM signal. The signal sent to the switch via the TJC8 servo connector determines the channels’ on/off state among three options: both off at <1400 microseconds, one off/one on at 1400-1600 microseconds, or both on at >1600 microseconds. Each output is able to handle an impressive 5A continuous and 10A peak! Additionally, the switch’s 40mm square pattern makes it quite mountable to almost any goBILDA^® structure.

If you are using an RC receiver, simply plug the 3-wire connector into the desired channel. The built-in 6V BEC (which can supply 1A continually) will power your receiver via the red wire. It can also be plugged into a servo controller or an Arduino (via jumper wires) or anything that can produce a PWM signal.

Signal Thresholds:

Signal	Output 1	Output 2
< 1400 µsec	OFF	OFF
1400 - 1600 µsec	OFF	ON
> 1600 µsec	ON	ON

Specs

Weight	47g
Input Voltage Range (Recommended)	12 - 24VDC
Input Voltage Range (Limit)	9 - 30VDC
Max Current (Continuous)	5A per Output
