LattePanda IOTA Active Cooler (Aluminum Heatsink & Fan)

SKU: FIT1027 Brand: DFRobot
LattePanda IOTA active cooler is an ultra-thin, aluminum heatsink with a variable-speed fan, ensuring sustained high performance through efficient heat...
$21.30 AUD, inc GST
$19.36 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 19 and Nov 24

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This active cooler is an ultra-thin heatsink specifically designed for the LattePanda IOTA. Its adjustable-speed fan works together with the cooling fins to quickly dissipate heat generated by the processor, keeping the LattePanda board operating at an appropriate temperature to ensure optimal performance.

The main body is made of aluminum alloy with good thermal conductivity and comes with pre-applied thermal pads to ensure efficient heat transfer. Its surface is covered with a lightweight, high-temperature-resistant engineering plastic housing, giving it a restrained and attractive appearance.


Installation Steps:

1. Connect the fan's cable to the "FAN" connector on the back of the LattePanda board.

2. Apply an even layer of thermal paste to the processor.

3. Remove the protective film from the heatsink thermal pad, align the heatsink with the mounting holes on the back of the LattePanda board, and secure it using the screws and standoffs.

LattePanda IOTA and Active Cooler

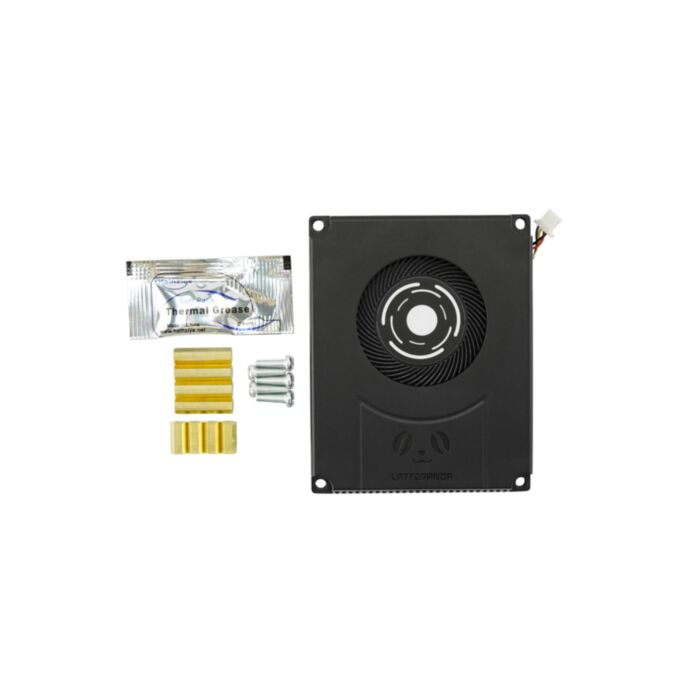

Figure: Overview of LattePanda IOTA Active Cooler


Note:

  • 1.When installing or removing the cooler, the LattePanda IOTA must be powered off.
  • 2.The heatsink's air outlet should be installed facing the network port side.
  • Specification

  • Compatible Board: LattePanda IOTA
  • Operating Voltage: 5V
  • Operating Current: 0.22A
  • Fan Speed: up to 5300 RPM
  • Speed Control Method: PWM
  • Connector Type: MX1.25-4P (Flat Type)
  • Wire Length: 18±5mm(Exposed Length)
  • Dimensions: 87*69*10.45mm
  • Thermal Material: Aluminum Alloy
  • Housing Material: Temperature-resistant Engineering Plastic
  • Weight: 62g (Fan Only)
