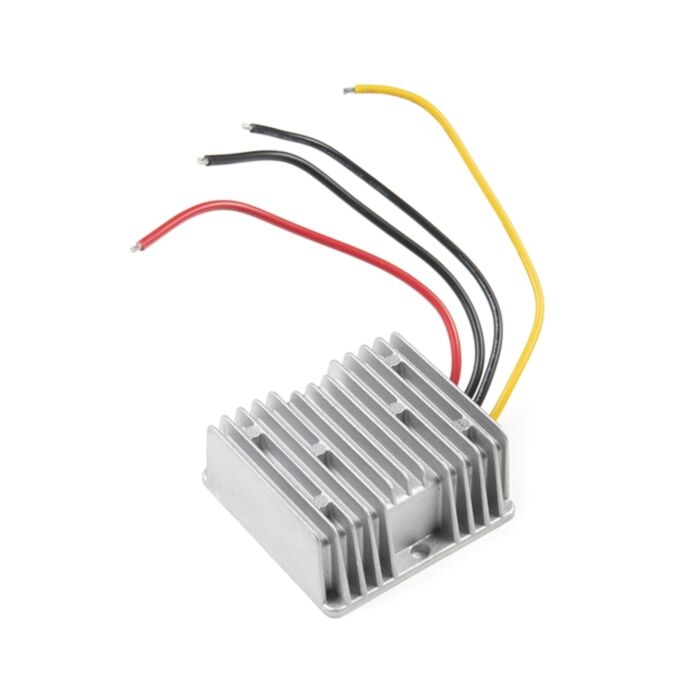

Constant Current Power Supply - 12.6V 10A

Rating:

100% of 100

1 Review

SKU: PRT-18722 Brand: Sparkfun

A simple Lithium Ion battery charger for 12.6VDC Li-Ion batteries similar to the one we sell...

$104.95 AUD, inc GST

$95.41 AUD, exc GST

Available with a lead time
Expect dispatch between May 05 and May 06

Quantity Discounts:

5+ $92.55 (exc GST)
10+ $90.64 (exc GST)

A simple constant current power supply that outputs 12.6VDC and 10A. It comes in a robust metal enclosure (IP68 rated) with a 100,000 hour service life. It features Over-voltage, Over-current, Short Circuit, and Over-temperature safety features. This can be used for charging Li-Ion batteries similar to the one we sell but requires good knowledge of how to do so. It also works for powering LED lighting-type devices.

The device accepts 8-36V DC inputs via 14 AWG wires (The Red and Black ones) and outputs 12.6VDC and a constant 10A for current via the 16AWG wires (Yellow and Black).

Input Voltage: 12V/24V DC
Input Voltage Range: 8-36V DC
Efficiency: 96% @ 12V in
Output Voltage: 12.6V DC
Output Current: 10A (Constant)
Voltage Regulation: < 1%
Load Regulation: < 2%
Ripple & Noise: 156mVp-p
Operating Temperature Range: -30°C to 80°C
Waterproof Rating: IP68
Dimensions: 74mm x 74mm x 32mm
Weight: 290g
Input Cables (Red/Black): 14AWG and 16.5cm Long
Output Cables (Yellow/Black): 16AWG and 16.5cm Long
1 Year Manufacturers Warranty

Documents

Datasheet
