Available with a lead time
Expect dispatch between Sep 09 and Sep 13
Quantity Discounts:

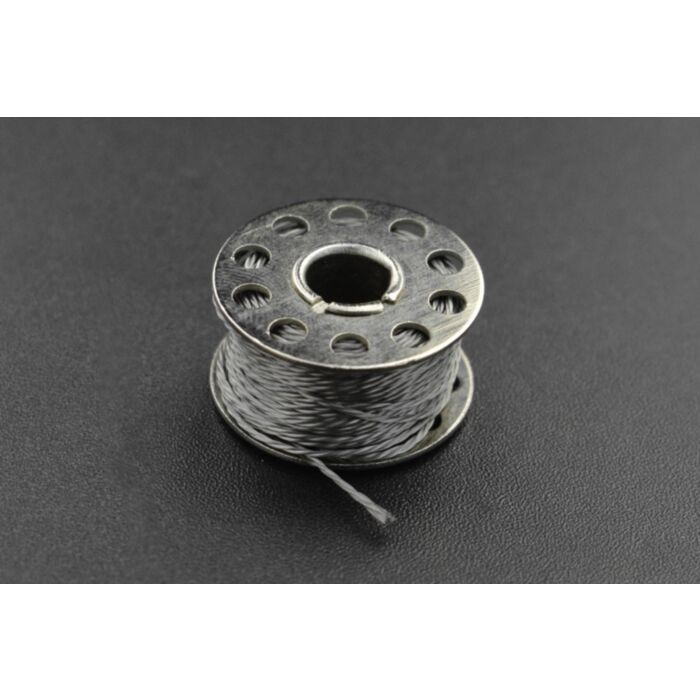

This is a smooth stainless steel fiber conductive sewing thread. It features small resistance, good thermal conductivity, high melting point and high-temperature resistance. One roll has 7m sewing thread, and about 9Oper 1m. The diameter of the wire is 0.45mm. It can be used for making touchscreen gloves, anti-static clothing, wearable electronic equipment, anti-static brush, driving LED and other small current electronic components.
Note: the thinner the wire, the more resistance it offers.
Conductive Stainless Steel Sewing Thread Selection Guide
Name | Stainless Steel Conductive Sewing Thread(50-60O) | Stainless Steel Conductive Sewing Thread(30-40O) | Stainless Steel Conductive Sewing Thread(20-25O) | Stainless Steel Conductive Sewing Thread(10-15O) | Stainless Steel Conductive Sewing Thread(9O) | Stainless Steel Conductive Sewing Thread(7O) | Stainless Steel Conductive Sewing Thread(2O) |
SKU | FIT0742 | FIT0743 | FIT0744 | FIT0745 | FIT0746 | FIT0747 | FIT0748 |
Image | |||||||
Features | 1. Small resistance and stable resistivity 2. 650°C high-temperature resistance, 1350°C melting point 3. Safe to wash and reusable | 1. Small resistance and stable resistivity 2. 650°C high-temperature resistance, 1350°C melting point 3. Safe to wash and reusable | 1. Small resistance and stable resistivity 2. 650°C high-temperature resistance, 1350°C melting point 3. Safe to wash and reusable | 1. Small resistance and stable resistivity 2. 650°C high-temperature resistance, 1350°C melting point 3. Safe to wash and reusable | 1. Small resistance and stable resistivity 2. 650°C high-temperature resistance, 1350°C melting point 3. Safe to wash and reusable | 1. Small resistance and stable resistivity 2. 650°C high-temperature resistance, 1350°C melting point 3. Safe to wash and reusable | 1. Small resistance and stable resistivity 2. 650°C high-temperature resistance, 1350°C melting point 3. Safe to wash and reusable |
Resistance(O) | 50-60O | 30-40O | 20-25O | 10-15O | 9O | 7O | 2O |
Thread Diameter(mm) | 0.18-0.2mm | 0.27-0.3mm | 0.33mm | 0.42mm | 0.45mm | 0.5mm | 0.96mm |
Thread Length/Roll | 37-45m/Roll | 20-27m/Roll | 13-18m/Roll | 9-11m/Roll | 7m/Roll | 5m/Roll | 1m/Roll |
Application | Telefingers gloves, anti-static clothing, wearable electronic devices, anti-static brushes, driving LEDs and other low-current electronic components, etc. | ||||||
Note | The smaller the resistance value, the thicker the thread, so the length of each roll of these models is different |
