Conductive Stainless Thread (7Ω)

SKU: FIT0747 Brand: DFRobot
This is a smooth stainless steel fiber conductive sewing thread. One roll has 5m sewing thread, and about 7Oper 1m. The diameter of the wire is 0.5mm....
$13.10 AUD, inc GST
$11.91 AUD, exc GST

Available with a lead time
Expect dispatch between May 14 and May 20

Quantity Discounts:

  • 10-25 $11.55 (exc GST)
  • 25+ $11.31 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

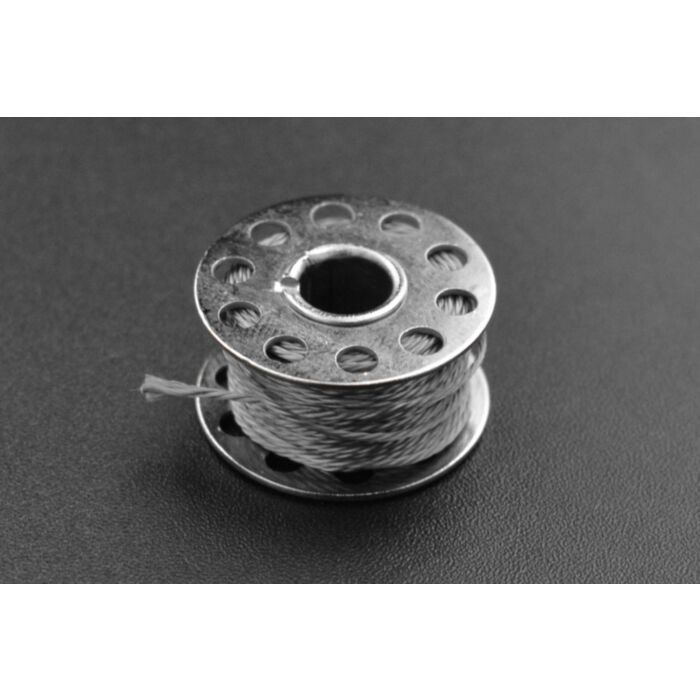

This is a smooth stainless steel fiber conductive sewing thread. It features small resistance, good thermal conductivity, high melting point and high-temperature resistance. One roll has 5m sewing thread, and about 7Oper 1m. The diameter of the wire is 0.5mm. It can be used for making touchscreen gloves, anti-static clothing, wearable electronic equipment, anti-static brush, driving LED and other small current electronic components.

Note: the thinner the wire, the more resistance it offers.

Conductive Stainless Thread


Conductive Stainless Steel Sewing Thread Selection Guide

NameStainless Steel Conductive Sewing Thread(50-60O)Stainless Steel Conductive Sewing Thread(30-40O)Stainless Steel Conductive Sewing Thread(20-25O)Stainless Steel Conductive Sewing Thread(10-15O)Stainless Steel Conductive Sewing Thread(9O)Stainless Steel Conductive Sewing Thread(7O)Stainless Steel Conductive Sewing Thread(2O)
SKUFIT0742FIT0743FIT0744FIT0745FIT0746FIT0747FIT0748

Features

1. Small resistance and stable resistivity
2. 650°C high-temperature resistance, 1350°C melting point
3. Safe to wash and reusable
1. Small resistance and stable resistivity
2. 650°C high-temperature resistance, 1350°C melting point
3. Safe to wash and reusable
1. Small resistance and stable resistivity
2. 650°C high-temperature resistance, 1350°C melting point
3. Safe to wash and reusable
1. Small resistance and stable resistivity
2. 650°C high-temperature resistance, 1350°C melting point
3. Safe to wash and reusable
1. Small resistance and stable resistivity
2. 650°C high-temperature resistance, 1350°C melting point
3. Safe to wash and reusable
1. Small resistance and stable resistivity
2. 650°C high-temperature resistance, 1350°C melting point
3. Safe to wash and reusable
1. Small resistance and stable resistivity
2. 650°C high-temperature resistance, 1350°C melting point
3. Safe to wash and reusable
Resistance(O)50-60O30-40O20-25O10-15O9O7O2O
Thread Diameter(mm)0.18-0.2mm0.27-0.3mm0.33mm0.42mm0.45mm0.5mm0.96mm
Thread Length/Roll37-45m/Roll20-27m/Roll13-18m/Roll9-11m/Roll7m/Roll5m/Roll1m/Roll
ApplicationTelefingers gloves, anti-static clothing, wearable electronic devices, anti-static brushes, driving LEDs and other low-current electronic components, etc.
NoteThe smaller the resistance value, the thicker the thread, so the length of each roll of these models is different


Features

  • Low resistance and stable resistivity
  • High-temperature resistance 650°C, melting point 1350°C
  • Safe to wash, reusable

Specification

  • Wire Resistance: 7O/m
  • Length: 5m
  • Diameter: 0.5mm

Parts List

  • Conductive Stainless Thread (7O) x1
