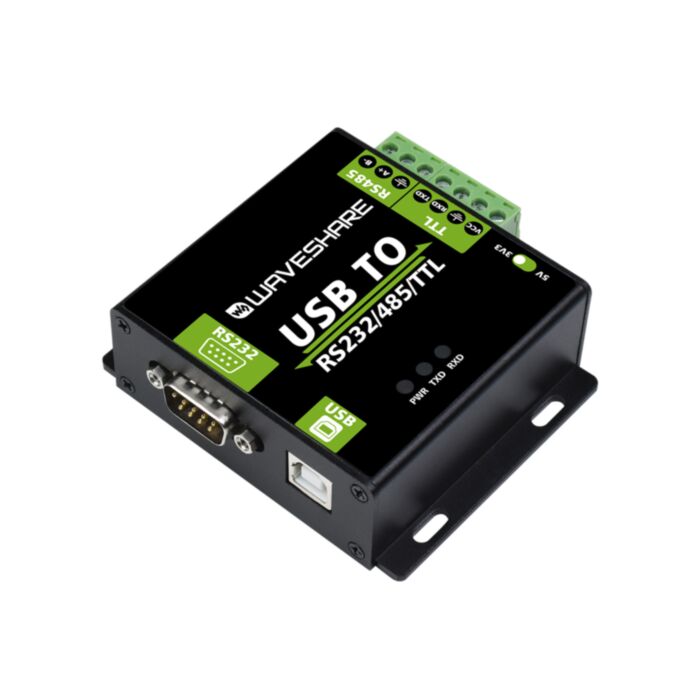

CH343G USB TO RS232/485/TTL Interface Converter with Isolation

SKU: WS-22547 Brand: Waveshare
FT232RL/CH343G USB TO RS232/485/TTL Interface Converter, Industrial Isolation...
$32.85 AUD, inc GST
$29.86 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 15th of Oct

Quantity Discounts:

  • 10+ $29.42 (exc GST)
- +

3 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Details

More options for controller now: FT232RL or CH343G
FT232RL/CH343G USB TO RS232/485/TTL Interface Converter, Industrial Isolation
Industrial Grade Isolated USB Converter

USB TO RS232/485/TTL

Stable transmission | Multiple devices applicable | Multi-OS compatible

Features At A Glance
  • Adopt original FT232RL or CH343G inside, fast communicating, stable and reliable, better compatibility
  • Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
  • Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
  • Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
  • Fully automatic transceiver circuit with no delay, ensures the USB port communicates with different interfaces fastly and stably, without interfering each other
  • Onboard TTL serial 3.3V/5V voltage translator, config the TTL level via switch
  • Aluminium alloy enclosure with sand blasting and anodic oxidation, CNC process opening, solid and durable
  • 3 LEDs for indicating the power and transceiver status
  • High quality USB-B and RS232 connectors, smoothly plug/pull
Version Option

FT232RL Version

CH343G Version

Specifications
PRODUCT TYPE Industrial grade digital isolated converter
USB Operating voltage 5V
Connector USB-B
Protection 200mA self-recovery fuse, isolated output
RS232 Connector DB9 male
Protection TVS diode, surge protection & ESD protection
Transmission mode Point-to-point
Baud rate FT232RL: 300bps ~ 921600 bps
CH343G: up to 600000 bps (not full band)
RS485 Connector Screw terminal
Pins A+/B-/GND
Direction control Hardware automatically discriminates and controls the direction of data transmission
Protection 600W lightningproof and surge-suppress, 15KV ESD protection (reserved 120R balancing resistor solder pads
Transmission mode Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
Baud rate FT232RL: 300bps ~ 2 Mbps
CH343G: up to 2 Mbps (not full band)
TTL (UART) Operating voltage 3.3V / 5V
Connector Screw terminal
Pins TXD, RXD, GND, 5V
Protection clamp protection diode, over-voltage/negative-voltage proof, shock proof
Transmission mode Point-to-point
Baud rate FT232RL: 300 bps ~ 2 Mbps
CH343G: up to 2 Mbps (not full band)
Indicators PWR Red power indicator, light up when there is USB connection and voltage is detected
TXD Green TX indicator, light up when the USB port sends data
RXD Blue RX indicator, light up when the device ports send data back
Operating environment Temperature -15? ~ 70?
Humidity 5%RH ~ 95%RH
Operating system Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7

Original Industrial Grade Chip

Onboard original FT232 or CH343 chip
Fast communication, stable & reliable, better compatibility



Safer Isolated Design
  • Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
  • Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
Multi-protocol & Multi-type Conversion

USB TO RS232, RS485 or TTL(UART)

RS232, RS485 or TTL(UART) TO USB

* only one of the RS232, RS485, and TTL can be converted to USB at the same time; And RS232, RS485, and TTL cannot be converted between each other


Multiple Protection, Safe And Stable

Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance.

Multi system Support

Supports Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7, etc.

Pinout Definition

Working Status Indicators

Onboard 3 LEDs for indicating the power and transceiver status

Aluminium Alloy Enclosure

Aluminium alloy enclosure with sand blasting and anodic oxidation
Solid and durable, fashion and good hand feeling

Interface Introduction
Outline dimensions
Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Quick Overview

Package Contains

  1. OPTIONS USB Converter x1
  2. USB Cable ~1.2m x1
1
2
