Industrial Isolated USB To 4-Ch RS232 Converter

SKU: WS-27022 Brand: Waveshare

Industrial Isolated USB To 4-Ch RS485 Converter (B), CH344L Chip, Multi Protection Circuits, Multi Systems Support, Aluminium Alloy Case, Wall-Mount &...

$56.30 AUD, inc GST

$51.18 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 06 and Jan 09

Quantity Discounts:

6-12 $49.65 (exc GST)
12+ $48.62 (exc GST)

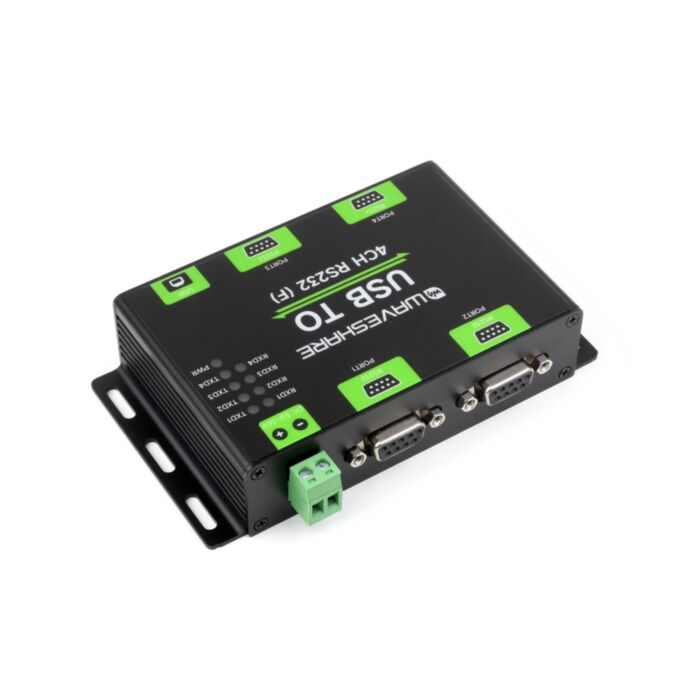

This device uses the original FT4232HL chip for fast, stable, and reliable communication, with excellent compatibility. It supports USB connections to four isolated RS232 channels, enabling easy expansion for industrial serial devices. The design includes a built-in power supply isolation for stable voltage and digital isolation for high reliability and low power consumption. To protect against voltage surges and spikes, it features an onboard Transient Voltage Suppressor. It also includes a self-recovery fuse and protection diodes to ensure stable current and voltage with over-current and over-voltage protection. The power supply can be input through a screw terminal, supporting a range from 5V to 36V DC. Additionally, there are nine LEDs to indicate power and transceiver status, all encased in a durable aluminum alloy enclosure with a sandblasted and anodized finish.

Specifications

Host Port: USB
Device Port: RS232
Baud Rate: 300bps to 921600bps
USB Operating Voltage: 5V
USB Connector: USB-B
USB Protection: 200mA self-recovery fuse, isolated output
USB Transmission Distance: About 5 meters
Power Supply Interface:
- Power Supply: 5 to 36V DC screw terminal
- Protection: Anti-reverse
Isolated RS232:
- Connector: DB9 female
- Protection: TVS diode, surge protection, ESD protection, power isolation, and signal isolation
- Transmission Mode: Point-to-point
- Transmission Distance: About 15 meters
Indicators:
- PWR: Red power indicator, lights up when there is a USB connection and voltage is detected
- TXD1~4: Green TX indicator, blinks when the RS232 port is sending data
- RXD1~4: Blue RX indicator, blinks when the RS232 port is receiving data
Operating Environment:
- Temperature Range: -40°C to 85°C
- Humidity Range: 5% RH to 95% RH
Operating System Compatibility: MacOS, Linux, Android, Windows 11, 10, 8.1, 8, 7

Pinout

Dimensions

Documents

WIKI

What's included

1 x OPTIONS USB TO 4CH RS232
1 x USB type-A to type-B cable ~1.2m
1 x Power adapter
