Search results for: '5v voltage regulators'

Note 1: Minimum input voltage is subject to dropout voltage considerations; see the dropout voltage section of product pages for more information...

This compact (0.6"×0.6") switching step-up (or boost) voltage regulator efficiently generates 5 V from input voltages as low as 1.3 V and handles...

The S9V11F5S6CMA switching step-up/step-down regulator efficiently produces a fixed 5 V (default) or 6 V (selectable) output whether it is higher or lower...

This powerful synchronous switching boost regulator efficiently generates an output voltage of 5 V from an input voltage as low as 2.9 V while using an...

*Actual achievable maximum continuous current is a function of input voltage and is limited by thermal dissipation. See the output current graphs on the...

This powerful boost regulator efficiently generates an output voltage of 5 V from an input voltage as low as 2.9 V while allowing an input current as high as 5 A.

This compact (0.32"×0.515") switching step-up (or boost) voltage regulator efficiently generates 5 V from input voltages as low as 1.3 V and handles...

This tiny (0.35″×0.45″) U1V10F5 switching step-up (or boost) voltage regulator efficiently generates 5 V from input voltages as low as 0.5 V. Unlike most boost regulators, the U1V10F5 automatically switches to a linear down-regulation mode when the input voltage exceeds the output. The pins have a 0.1″ spacing, making this board compatible with standard solderless breadboards and perfboards.

This compact (0.45″×0.6″) U1V11F5 switching step-up (or boost) voltage regulator efficiently generates 5 V from input voltages as low as 0.5 V. Unlike most boost regulators, the U1V11F5 offers a true shutdown option that turns off power to the load, and it automatically switches to a linear down-regulation mode when the input voltage exceeds the output. The pins have a 0.1″ spacing, making this board compatible with standard solderless breadboards and perfboards.

1 Minimum input voltage is subject to dropout voltage considerations; see the dropout voltage section of product pages for more information...

This small synchronous switching step-down (or buck) regulator takes an input voltage of up to 45 V and efficiently reduces it to 5 V. The board measures...

Ah the venerable 7805, who amongst Adafruit has not used this popular linear regulator? This big chunky regulator will help you get your 7-35V battery or wall adapter...

Note 1: Minimum input voltage is subject to dropout voltage considerations; see the dropout voltage section of product pages for more information...

This powerful step-up/step-down regulator efficiently produces a fixed 5 V output from input voltages between 3 V and 30 V while allowing a typical output current of up to 2 A when the input voltage is close to the output voltage and offering typical efficiencies of 80% to 90%. Its ability to convert both higher and lower input voltages makes it useful for applications where the power supply voltage can vary greatly, as with batteries that start above but discharge below the regulated voltage.

The S7V7F5 switching step-up/step-down regulator efficiently produces 5 V from input voltages between 2.7 V and 11.8 V. Its ability to convert both higher and lower input voltages makes it useful for applications where the power supply voltage can vary greatly, as with batteries that start above but discharge below 5 V. The very compact (0.35″ × 0.475″) module has a typical efficiency of over 90% and can supply up to 1 A when stepping down and about 500 mA when stepping up.

This compact (0.4″ × 0.5″) switching step-down (or buck) voltage regulator takes input voltages up to 50 V and efficiently reduces them to 5 V while allowing for a maximum output current of 600 mA. It has a very low dropout, so it can be used with input voltages that are within a few hundred millivolts of its output.

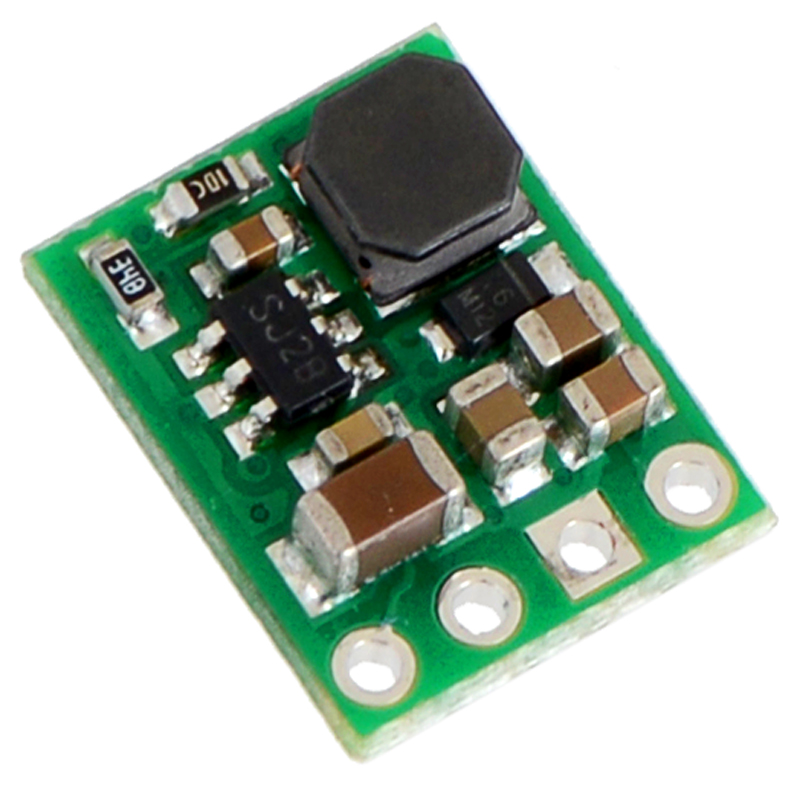

The compact (0.4″ × 0.5″) D24V3F5 switching step-down (or buck) voltage regulator takes an input voltage between 7 V and 42 V and efficiently reduces it to 5 V while allowing for a maximum output current of 300 mA. The pins have a 0.1″ spacing, making this board compatible with standard solderless breadboards and perfboards.

This powerful synchronous switching step-up/step-down regulator efficiently produces 5 V from input voltages between 2.8 V and 22 V. Its ability to ...

The S9V11F5 switching step-up/step-down regulator efficiently produces 5 V from input voltages between 2 V and 16 V. (Note: it requires an input voltage of at least 3 V to start, but it can operate down to 2 V after startup.)

This synchronous switching step-up/step-down regulator efficiently produces 5 V from input voltages between 1.4 V and 16 V. (Note: minimum startup voltage...

The compact (0.4″ × 0.5″) D24V5F5 synchronous buck voltage regulator takes an input voltage of up to 36 V and efficiently reduces it to 5 V while allowing for a maximum output current of 500 mA. This regulator offers typical efficiencies between 85% and 90% and has a very low dropout, so it can be used with input voltages as low as a few hundred millivolts above 5 V. The pins have a 0.1″ spacing, making this board compatible with standard solderless breadboards and perfboards.

The compact (0.5″ × 0.7″) D24V10F5 synchronous buck voltage regulator takes an input voltage of up to 36 V and efficiently reduces it to 5 V while allowing for a maximum output current of 1 A.

This synchronous switching step-down (or buck) regulator takes an input voltage of up to 38 V and efficiently reduces it to 5 V while allowing a typical continuous output current of up to 9 A. Typical efficiencies of 80% to 95% make this regulator well suited for higher-power applications like powering motors or servos, while high efficiencies are maintained at light loads by dynamically changing the switching frequency, and an optional shutdown pin enables a low-power state with a current draw of a few hundred microamps. The regulator’s output voltage setting can also be lowered by adding an external resistor.

The S7V8F5 switching step-up/step-down regulator efficiently produces a fixed 5 V output from input voltages between 2.7 V and 11.8 V. Its ability to convert both higher and lower input voltages makes it useful for applications where the power supply voltage can vary greatly, as with batteries that start above but discharge below the regulated voltage. The compact (0.45″ × 0.65″) module has a typical efficiency of over 90% and can deliver 500 mA to 1 A across most of the input voltage range.

This small synchronous switching step-down (or buck) regulator takes an input voltage of up to 38 V and efficiently reduces it to 5 V. The board measures only 0.7″ × 0.8″, but it allows a typical continuous output current of up to 5 A. Typical efficiencies of 85% to 95% make this regulator well suited for high-power applications like powering motors or servos. High efficiencies are maintained at light loads by dynamically changing the switching frequency, and an optional shutdown pin enables a low-power state with a current draw of a few hundred microamps.

1 Minimum input voltage is subject to dropout voltage considerations; see the dropout voltage section of product pages for more information...

The compact (0.4″ × 0.5″) D24V6F5 switching step-down (or buck) voltage regulator takes an input voltage between 7 V and 42 V and efficiently reduces it to 5 V while allowing for a maximum output current of 600 mA. The pins have a 0.1″ spacing, making this board compatible with standard solderless breadboards and perfboards.

This powerful synchronous switching step-down (or buck) regulator takes an input voltage of up to 50 V and efficiently reduces it to 5 V.

This powerful synchronous switching step-up/step-down regulator efficiently produces 5 V from input voltages between 2.8 V and 22 V. Its ability to...

This small synchronous switching step-down (or buck) regulator takes an input voltage of up to 38 V and efficiently reduces it to 5 V. The board measures only 0.7″ × 0.7″, but it allows a typical continuous output current of up to 2.5 A. Typical efficiencies of 85% to 95% make this regulator well suited for powering moderate loads like sensors or small motors. High efficiencies are maintained at light loads by dynamically changing the switching frequency, and an optional shutdown pin enables a low-power state with a current draw of a few hundred microamps.

This small synchronous switching step-down (or buck) regulator takes an input voltage of up to 36 V and efficiently reduces it to 5 V. The board measures...

This small synchronous switching step-down (or buck) regulator takes an input voltage of up to 50 V and efficiently reduces it to 5 V. The board measures only 0.7″ × 0.8″ yet delivers typical maximum continuous output currents between 2.5 A and 4 A, depending on the input voltage, which makes it well suited for powering moderate loads like sensors or small motors

This powerful synchronous switching step-up/step-down regulator efficiently produces 5 V from input voltages between 2.8 V and 22 V. Its ability to...

This synchronous switching step-down (or buck) regulator takes an input voltage of up to 40 V and efficiently reduces it to 5 V with an available output...

The SparkFun BabyBuck Regulator Breakout - 5V features the AP63357, a 3.5A synchronous buck converter with a wide input voltage range of 3.8V to 32V...

It’s blue! It’s thin! It’s the Pro Mini! This is a 5V board running the 16MHz bootloader. Pro Mini does not come with connectors populated so that you can solder in any connector or wire with any orientation you need

This 40W high power DC-DC Buck converter offers a 6~14V input voltage range and up to 5V/8A output. Featuring a small body, high conversion ratio, strong heat dissipation...
