This is a 20W DC-DC buck converter power module with 7~24V input and 5V/4A output(Max). The high conversion efficiency and on-board 6 output ports make it suitable...

This small synchronous switching step-down (or buck) regulator takes an input voltage of up to 36 V and efficiently reduces it to 5 V. The board measures...

Note 1: Minimum input voltage is subject to dropout voltage considerations; see the dropout voltage section of product pages for more information...

These switchmode plugpack adaptors are slim in size, lightweight, and feature manually selectable variable voltage outputs

This small synchronous switching step-down (or buck) regulator takes an input voltage of up to 36 V and efficiently reduces it to 12 V. The board measures...

The 16A DC-DC Buck Converter is an efficient 6-24V to 5V step-down module with over-temperature & short-circuit protection. Ideal for drones, robots & LED...

18V DC, 2.8 Amp switch mode plug pack supplied with a fixed positive to tip 2.1mm DC jack (2.1ID x 5.5OD x 10L). Compact design with high current...

Switchmode power supplies offer several significant advantages over traditional linear transformer power supplies.They are far more efficient than their linear counterparts. As they do not use power or mains transformers the equivalent power supply weighs considerably less than traditional types

Super-compact regulated power supply. Supplied with 2.1mm DC jack. Output - 12V DC @ 10A

The 12A DC-DC Buck Converter is an efficient 5-24V to 12V step-down module with over-temperature & short-circuit protection. Ideal for drones, robots &...

The compact (0.5" × 0.7") D24V10F12 synchronous buck voltage regulator takes an input voltage of up to 36 V and efficiently reduces it to 12 V while...

Need those tricky split-rail voltages for your vintage electronics? The Adafruit TPS65131 Split Rail Boost Converter generates both positive and negative...

This small synchronous switching step-down (or buck) regulator takes an input voltage of up to 38 V and efficiently reduces it to 5 V. The board measures only 0.7″ × 0.7″, but it allows a typical continuous output current of up to 2.5 A. Typical efficiencies of 85% to 95% make this regulator well suited for powering moderate loads like sensors or small motors. High efficiencies are maintained at light loads by dynamically changing the switching frequency, and an optional shutdown pin enables a low-power state with a current draw of a few hundred microamps.

Note 1: Minimum input voltage is subject to dropout voltage considerations; see the dropout voltage section of product pages for more information...

The compact (0.4″ × 0.5″) D24V6F12 switching step-down (or buck) voltage regulator takes an input voltage between 15 V and 42 V and efficiently reduces it to 12 V while allowing for a maximum output current of 600 mA. The pins have a 0.1″ spacing, making this board compatible with standard solderless breadboards and perfboards.

Need a nice little 3.3V regulator? Adafruit rather like the very-low-dropout L4931 from ST! This little guy will help you get your 4-20V battery or wall adapter down to...

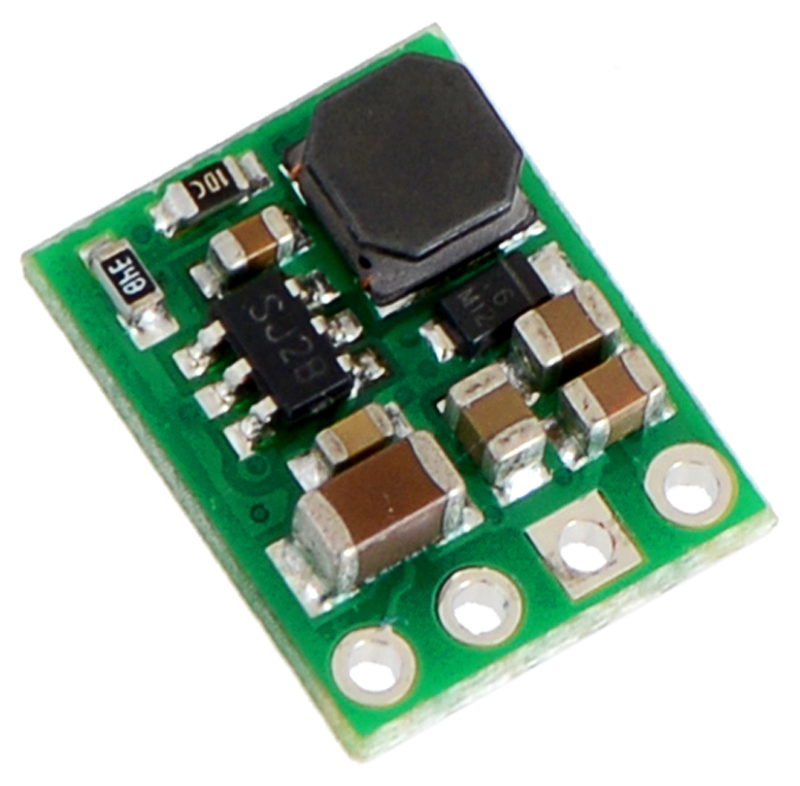

The compact (0.4″ × 0.5″) D24V6F5 switching step-down (or buck) voltage regulator takes an input voltage between 7 V and 42 V and efficiently reduces it to 5 V while allowing for a maximum output current of 600 mA. The pins have a 0.1″ spacing, making this board compatible with standard solderless breadboards and perfboards.
