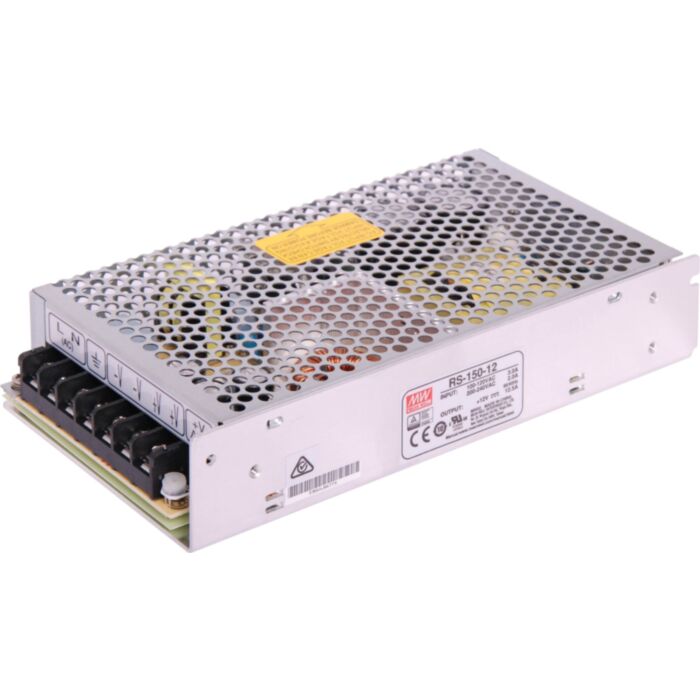

Mean Well - 150W 12VDC Switchmode Power Supply

SKU: AM8739 Brand: Core Electronics

$75.95 AUD, inc GST

$69.05 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

6-12 $66.28 (exc GST)
12+ $64.21 (exc GST)

Warning: this product if used with high voltages (such as 240VAC) requires a license to work with in most regions.

Switchmode power supplies offer several significant advantages over traditional linear transformer power supplies.They are far more efficient than their linear counterparts. As they do not use power or mains transformers the equivalent power supply weighs considerably less than traditional types. Physical size is also reduced. Though the power supplies are supplied in a vented steel cabinet they must be installed within a secondary earthed cabinet as the 240V input terminals are exposed.

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
All using 105ºC long life electrolytic capacitors
Withstand 300VAC surge input for 5 second
High operating temperature up to 70ºC
Withstand 5G vibration test
High efficiency, long life and high reliability

Output

DC Voltage: 12V
Rated Current: 6A
Current Range: 12.5A
Rated Power: 150W
Ripple & Noise: 120mV p-p
Voltage Adjust Range: 11.4-13.2V
Voltage Tolerance: ±1.0%
Line Regulation: ±0.5%
Load Regulation: ±0.5%
Setup / Rise Time: 800ms / 20ms @ 230VAC
Hold Up Time (Typical): 28ms @ 230VAC

Input

Voltage Range: 88-132VAC 176-264VAC (Withstand 300VAC surge for 5s. Without damage)
Frequency Range: 47-63Hz
Efficiency (Typical): 83%
AC Current (Typical): 3.0A/115VAC, 2.0A/230VAC
Inrush Current (Typical): Cold Start 40A/230VAC
Leakage Current: <2mA/240VAC

Protection

Overload: 110-150% rated power output
Over Voltage: 13.8-16.2V
Protection Type: Hiccup mode, recovers automatically after fault condition is removed

Environment

Working Temperature: -25 - +70ºC
Working Humidity: 20-90% RH non condensing
Temperature Coefficient: ±0.03%/ºC(0-50ºC)
Vibration: 10-500Hz, 5G 10 minutes/1cycle, period for 60 minutes. Each along X,Y,Z, axis
Dimensions: 199L x 98W x 38H mm

Weight: 0.7kg
